Temp Gauge Add-On

WoodLot

WoodLot

Member
Founding Member
Joined
Jun 29, 2018
Messages
84
Points
18
Location
N.A. Woods
Roxor Ownership
Roxor Owner
I recently added a temp gauge just to try and catch any heating issues with the non-shrouded fan design. I planned to use a mechanical and tap into the T-Stat housing but unfortunately found the port too small so I went electric. For those who might consider this little add-on the port is M12 x 1.5. I've attached pic of the plug and the installed SU. Incidentally I went with a "Dakota Digital" digital readout gauge and their SU.



...................
R

ROXOR

Administrator
Staff member
Joined
Mar 3, 2018
Messages
235
Points
43
Location
North Carolina
Roxor Ownership
Looking to buy
Nice, that seems simple. How did you mount the meter?

WoodLot

WoodLot

Member
Founding Member
Joined
Jun 29, 2018
Messages
84
Points
18
Location
N.A. Woods
Roxor Ownership
Roxor Owner
Mounted to bottom rolled edge of dash plate with single gauge mount, don't plan on any others so that worked for me. I did shim the gauge mount a bit so as to angle the lower edge upward for better view angle. A poor quality pic is attached, doesn't really reflect the angle but it is easily viewable. There is so much room on the dash plate multiple gauges could be easily flush mounted in the plate, I just didn't want to take a hole saw to it for one temp gauge.



jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
802
Points
63
Location
WI
Roxor Ownership
Roxor Owner
Nice setup. I can see fuel pressure, boost, egt and temp.

WoodLot

WoodLot

Member
Founding Member
Joined
Jun 29, 2018
Messages
84
Points
18
Location
N.A. Woods
Roxor Ownership
Roxor Owner
Yep, I resisted that urge, for now, really just wanted to watch the temp. The open fan design was a concern for me when moving slow in the woods but as it turns out the cooling system is quite stable.

Rolandwanders

Rolandwanders

Member
Joined
Aug 19, 2018
Messages
37
Points
8
Location
Phoenix, AZ, USA
Roxor Ownership
Roxor Owner
Roxor #
1502
jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
802
Points
63
Location
WI
Roxor Ownership
Roxor Owner
The old Willys era had a setup just like the Roxor. eFans are nice but gimmie old school. If these motors rev'd higher, it'd prolly be a decent swap.

TacoJon

TacoJon

Member
Joined
Oct 14, 2018
Messages
66
Points
18
Location
Cheyenne, WY, USA
Roxor Ownership
Roxor Owner
I was thinking about just adding a ScanGuage to mine. Have one on my Tacoma and love it.

WoodLot

WoodLot

Member
Founding Member
Joined
Jun 29, 2018
Messages
84
Points
18
Location
N.A. Woods
Roxor Ownership
Roxor Owner
I was thinking about just adding a ScanGuage to mine. Have one on my Tacoma and love it.
I had a used and dated ScanGaugeII in the shop and installed it this week, works great. Got my OBD adapter from OBD Diagnostics in CA. There's a forum member JMB3 that has a link on here for a great write up with all the details on moving the required OBD adapter pins, super simple.

Shortbus

Shortbus

Active member
Lifetime Member
Joined
Aug 26, 2018
Messages
152
Points
28
Location
Phoenix, AZ, USA
Roxor Ownership
Roxor Owner
Roxor #
1247
Purrs like a kitten with electric fan

M

menotu

Member
Joined
Jan 22, 2019
Messages
80
Points
18
Location
Alaska
Roxor Ownership
Looking to buy
has anybody put a shroud on the fan?

Eyellgeteven

Eyellgeteven

Active member
Joined
Jul 13, 2019
Messages
164
Points
28
Location
Salt Lake City, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
4124
That is one gauge I really wish it had stock...it would be nice to have a full set of gauges, but an engine temp gauge is most important IMO. I need to put one in just for piece of mind.

TacoJon

TacoJon

Member
Joined
Oct 14, 2018
Messages
66
Points
18
Location
Cheyenne, WY, USA
Roxor Ownership
Roxor Owner
That is one gauge I really wish it had stock...it would be nice to have a full set of gauges, but an engine temp gauge is most important IMO. I need to put one in just for piece of mind.
Shouldn't a scan gauge work just fine?

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,127
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
I put the scan gauge, and I love it. I like knowing the WT in some numerical or rating manner, and you cant go wrong with Dakota Digital. Nice addition Woodlot


WoodLot

WoodLot

Member
Founding Member
Joined
Jun 29, 2018
Messages
84
Points
18
Location
N.A. Woods
Roxor Ownership
Roxor Owner
I put the scan gauge, and I love it. I like knowing the WT in some numerical or rating manner, and you cant go wrong with Dakota Digital. Nice addition Woodlot

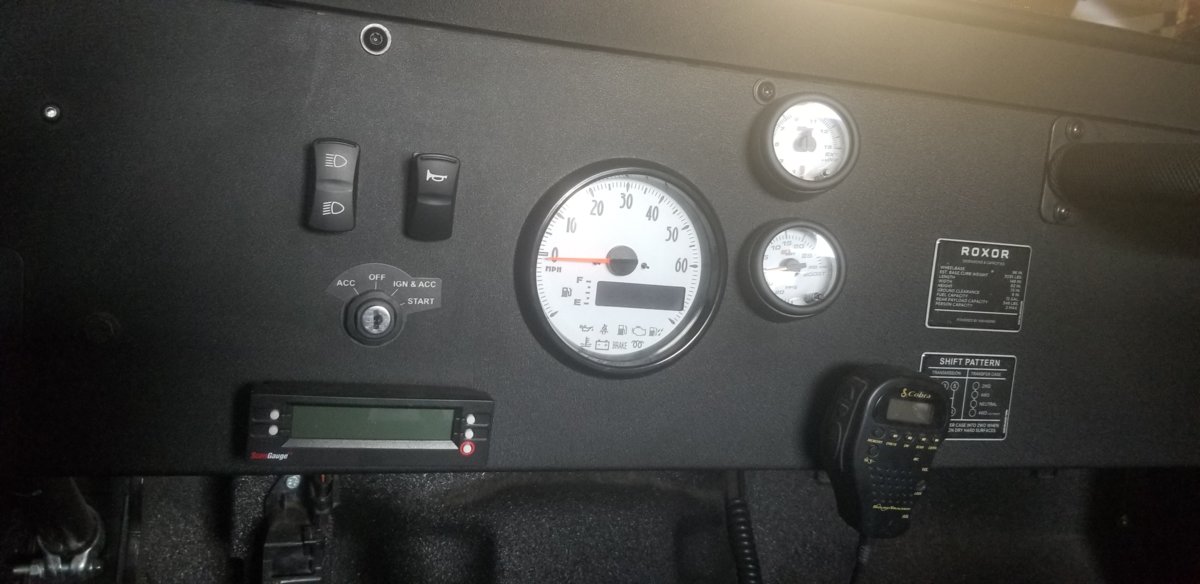

View attachment 4731
Thx Roxasuras, I have since replaced the scan g with a Banks I-Dash Super Gauge, like it way better but a little pricey and much smarter than the Roxor and this operator

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,127
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
I just looked that one up, very nice looking.

Eyellgeteven

Eyellgeteven

Active member
Joined
Jul 13, 2019
Messages
164
Points
28
Location
Salt Lake City, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
4124
So how waterproof are these digital gauges? I like the idea of all that info, but both brands of digital gauge kind of take away from the vintage utilitarian looks IMO, even though the factory gauge kind of does that a little bit anyway.

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,127
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
I agree, I think it does also, but the advantage out weighted the negatives IMO, Not sure about the others, but the Scan Gauge II I have unplugs, si I can easily unplug it and tuck the cord away.
