ooooooooooo

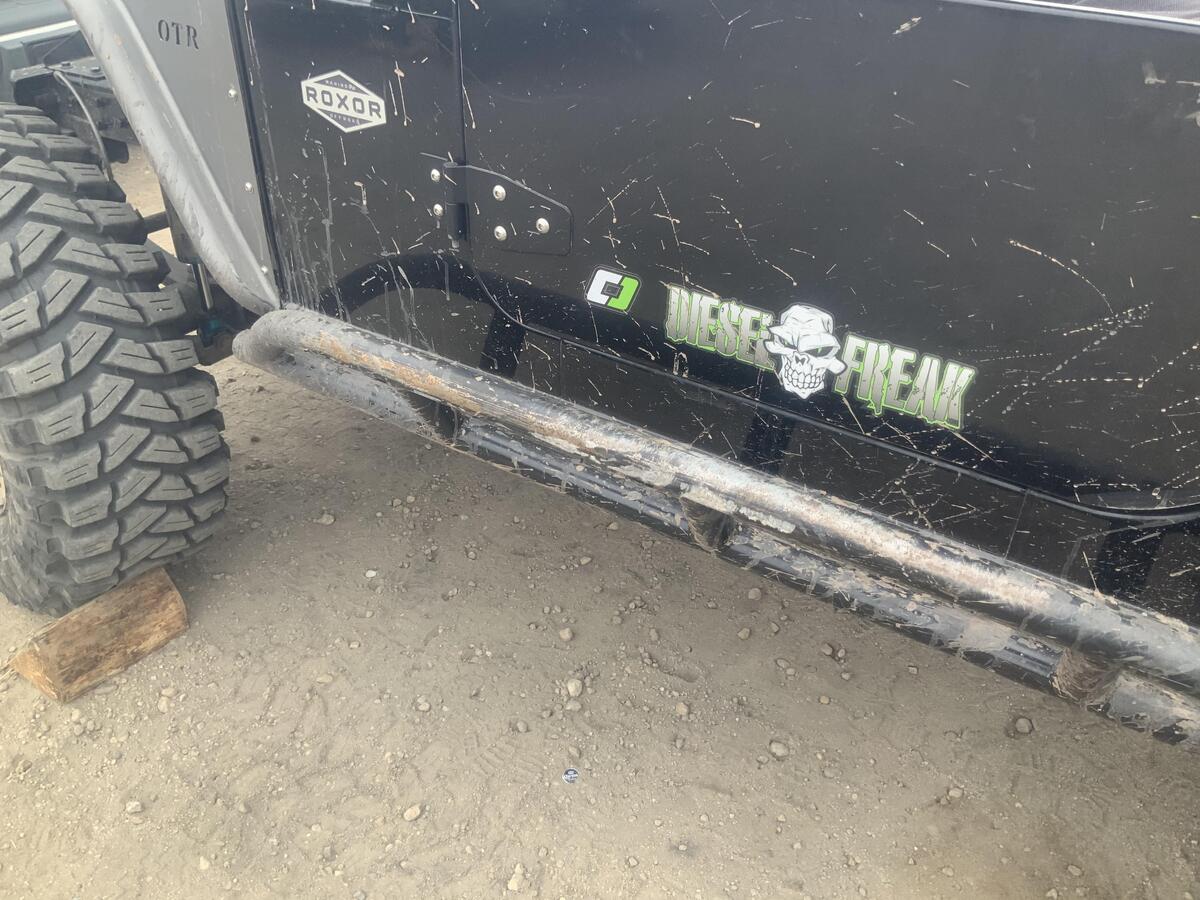

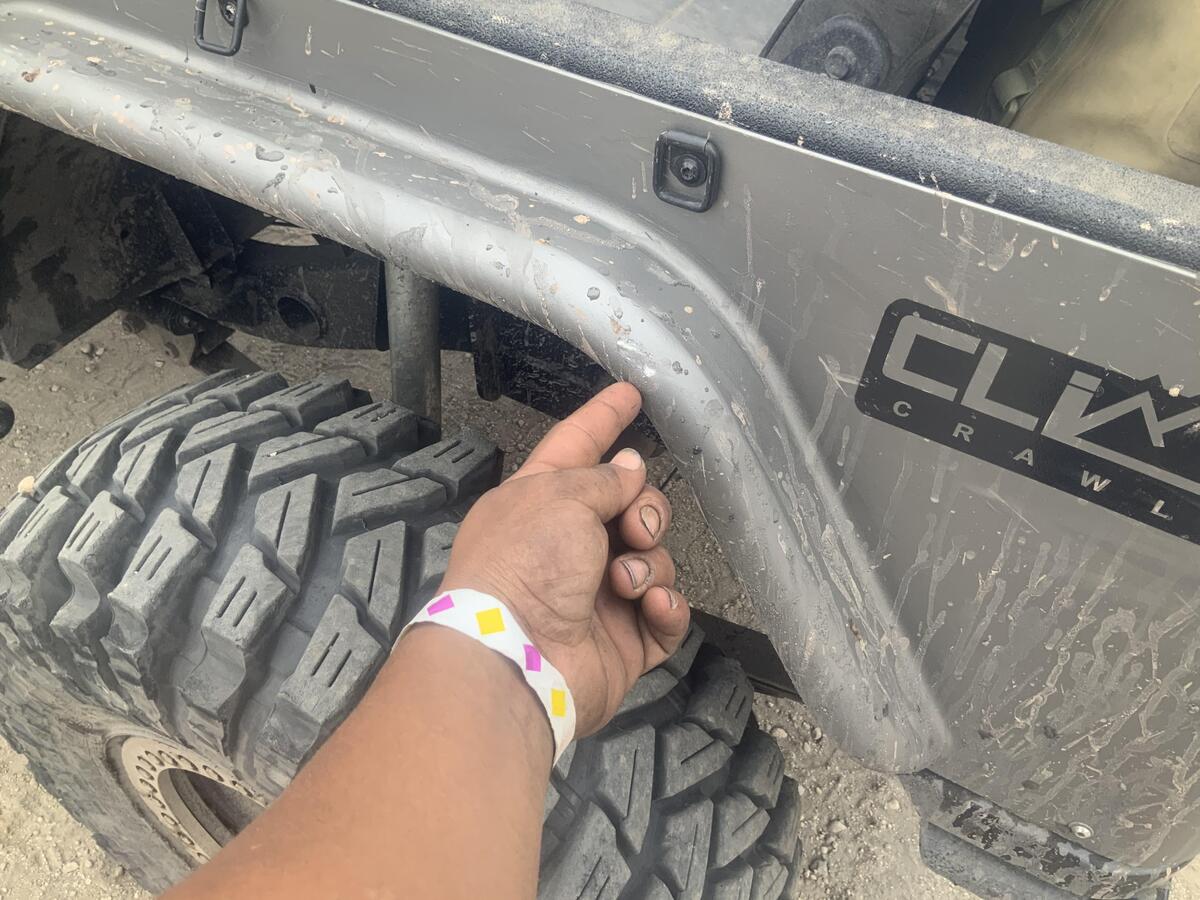

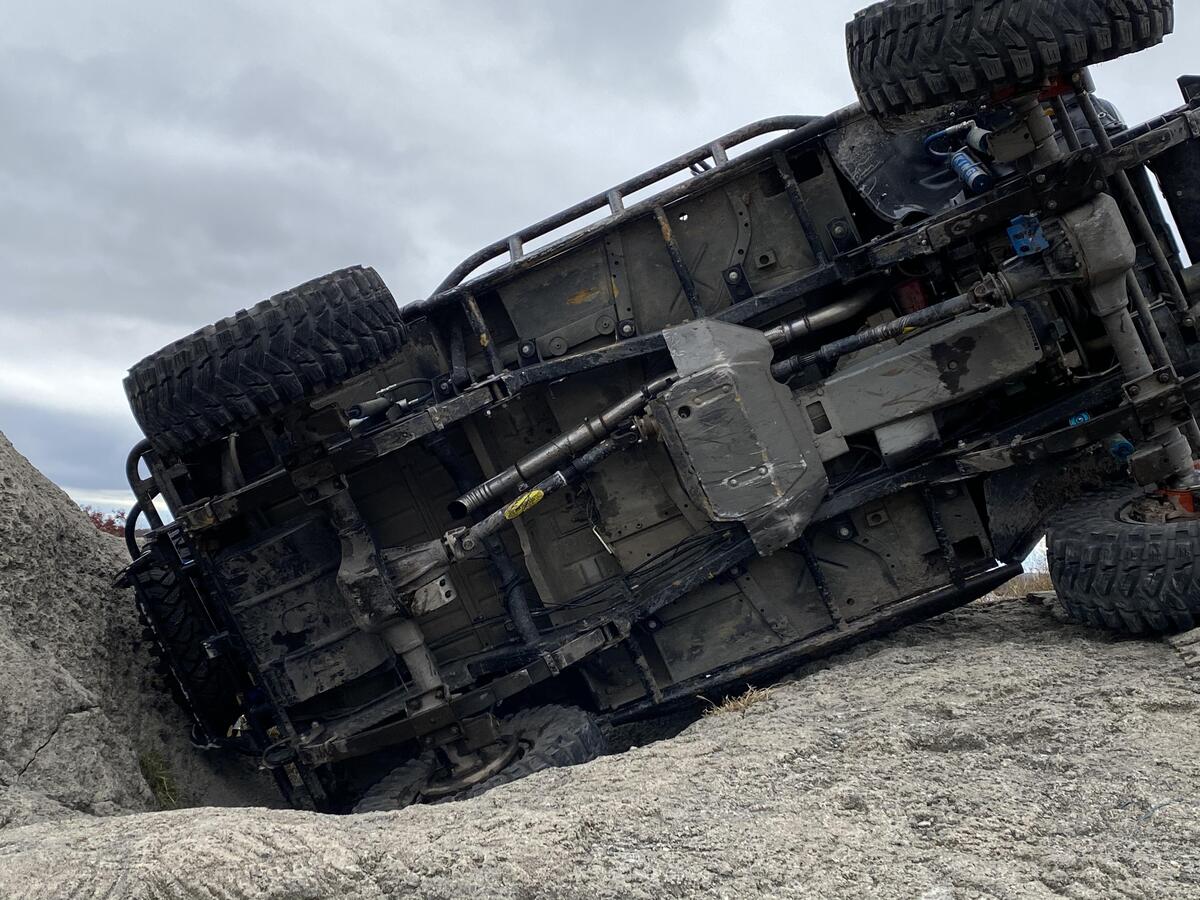

Max’s Roxor Build

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
852
Points
63
Location
WI
Roxor Ownership
Roxor Owner

Paulson

Active member
Joined
Sep 30, 2019
Messages
229
Points
43
Location
Se Arizona
Roxor Ownership
Roxor Owner
Roxor #
5526
When in doubt throttle out
When in doubt throttle out
He needs a keychain like mine.



Max A.

Well-known member
Joined
Nov 4, 2019
Messages
584
Points
93
Location
Baltimore, MD, USA
Roxor Ownership
Roxor Owner
Roxor #
00168

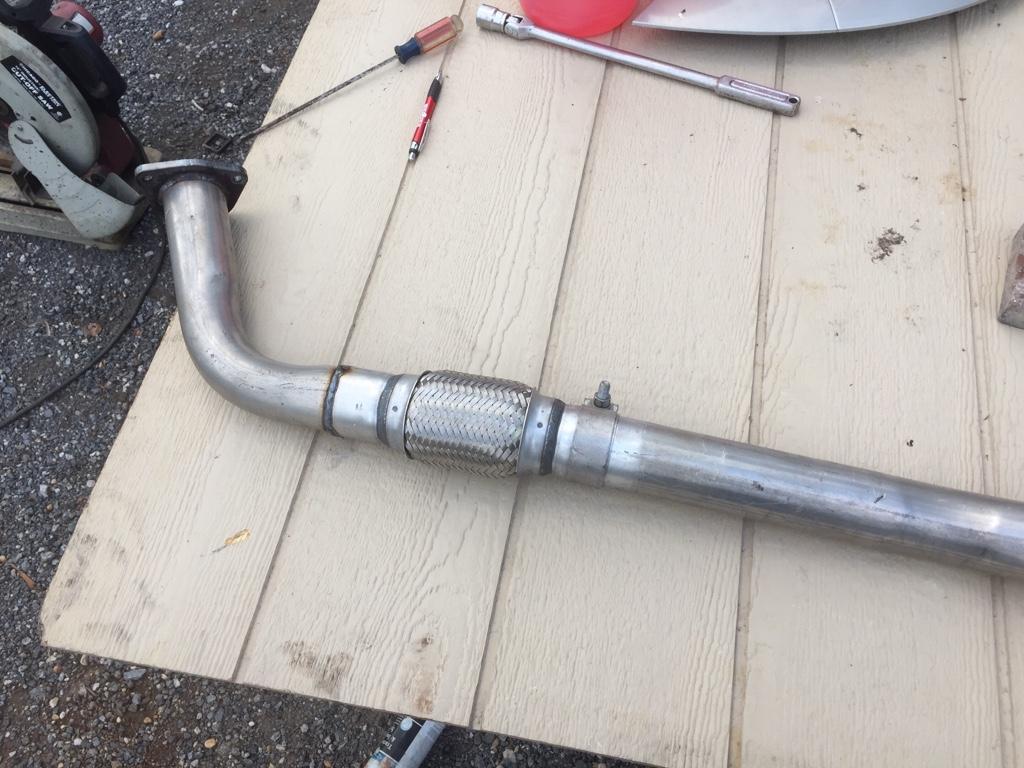

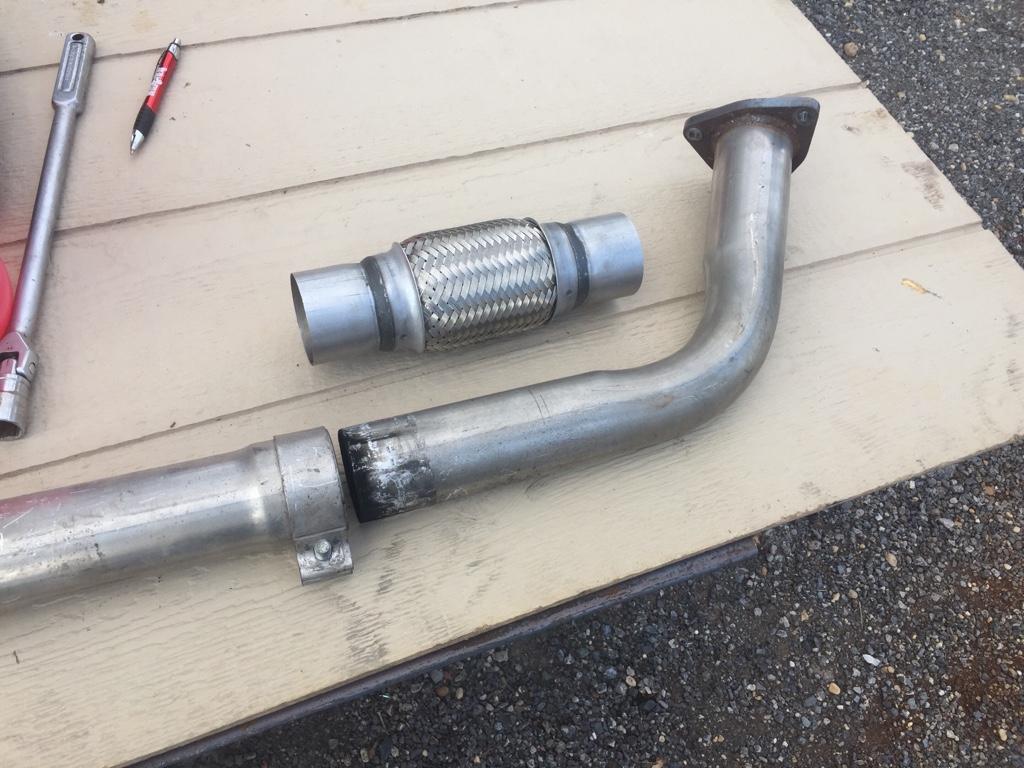

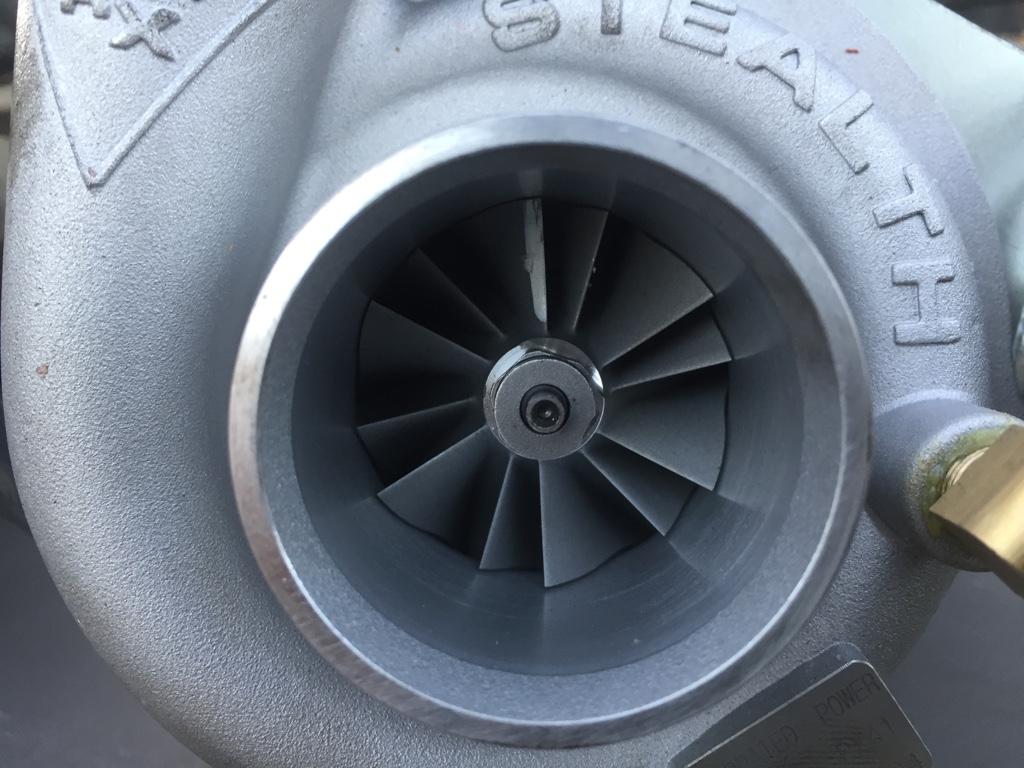

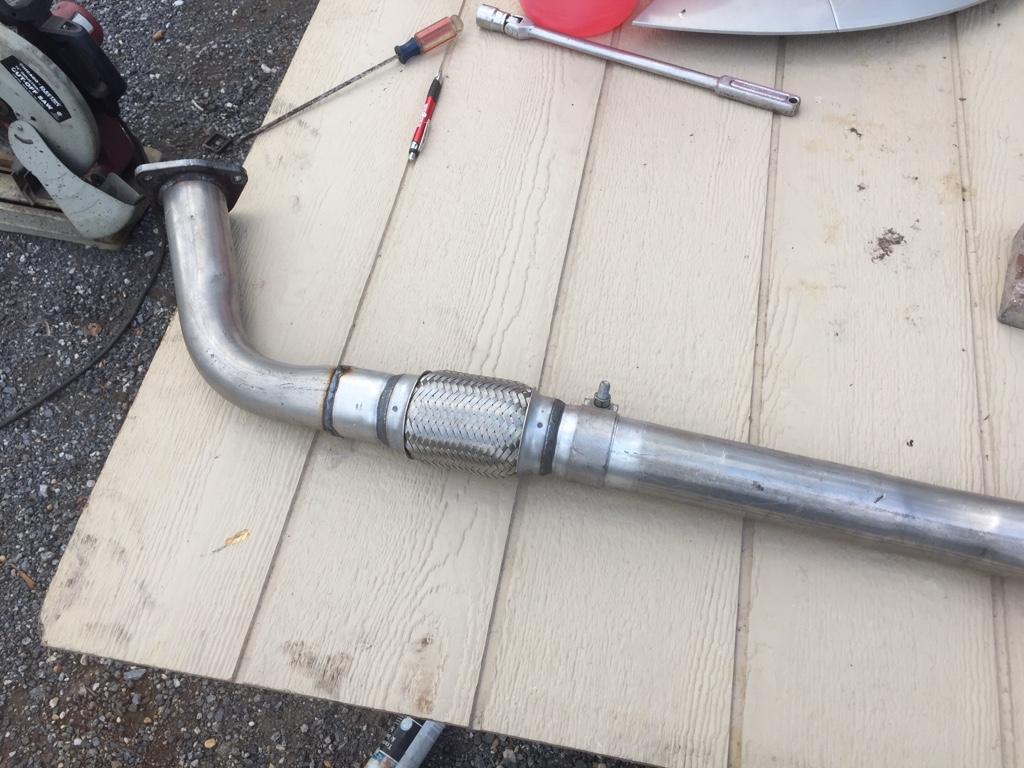

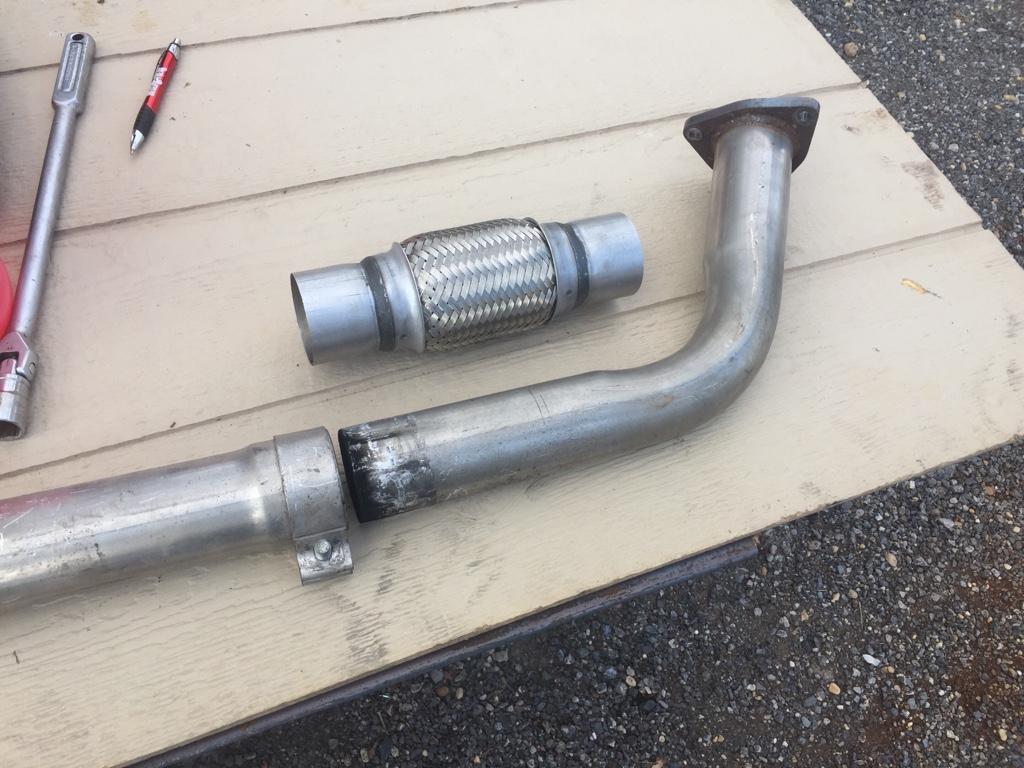

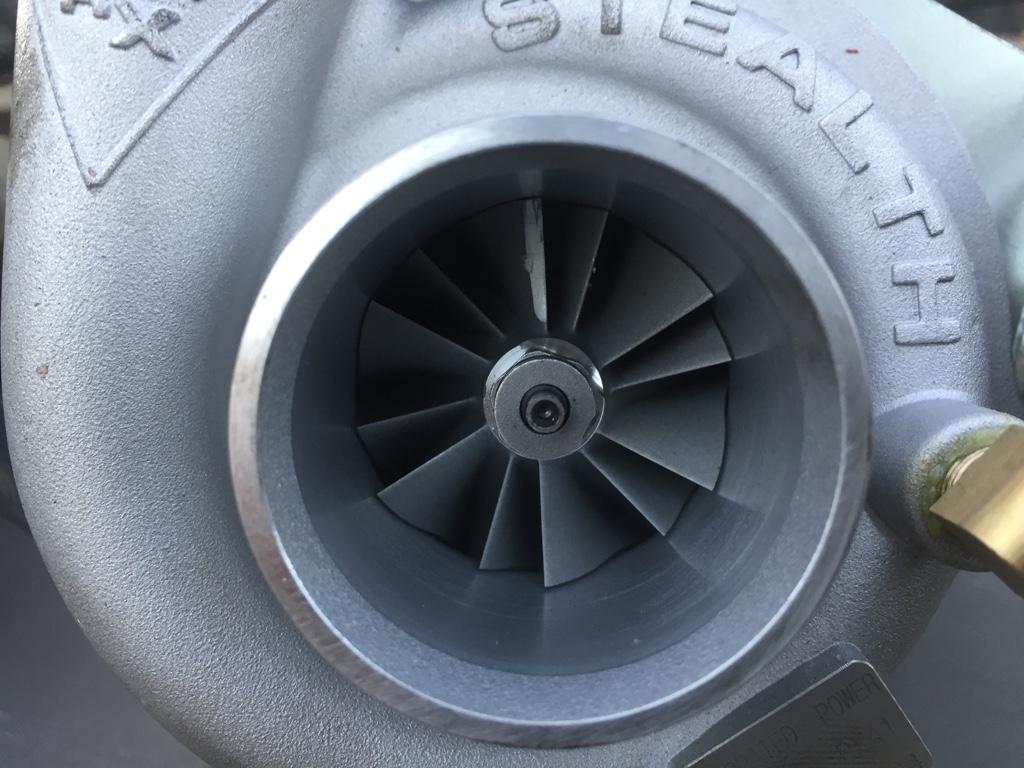

Got a new turbo from Diesel Freak! The RX41 sounds crazy! I also added a section of flex pipe to take most of the stress of the turbo housing.










Sent from my iPhone using Tapatalk


Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
2,195
Points
113
Location
Hurricane, WV, USA
Roxor Ownership
Roxor Owner
Roxor #
2507

Spanky

Active member
Joined
Apr 15, 2019
Messages
272
Points
43
Location
Jackson, AL, USA
Roxor Ownership
Roxor Owner
Roxor #
717

Colderweather86

Well-known member
Lifetime Member
Joined
Apr 20, 2020
Messages
722
Points
63
Location
Palmer, AK, USA
Roxor Ownership
Roxor Owner
Roxor #
7262
Looks Awesome, what is the difference in the new turbo if any.
OE Turbo wastegate opens at 8psi, and is non adjustable. Efficiency rating is up to 100HP.

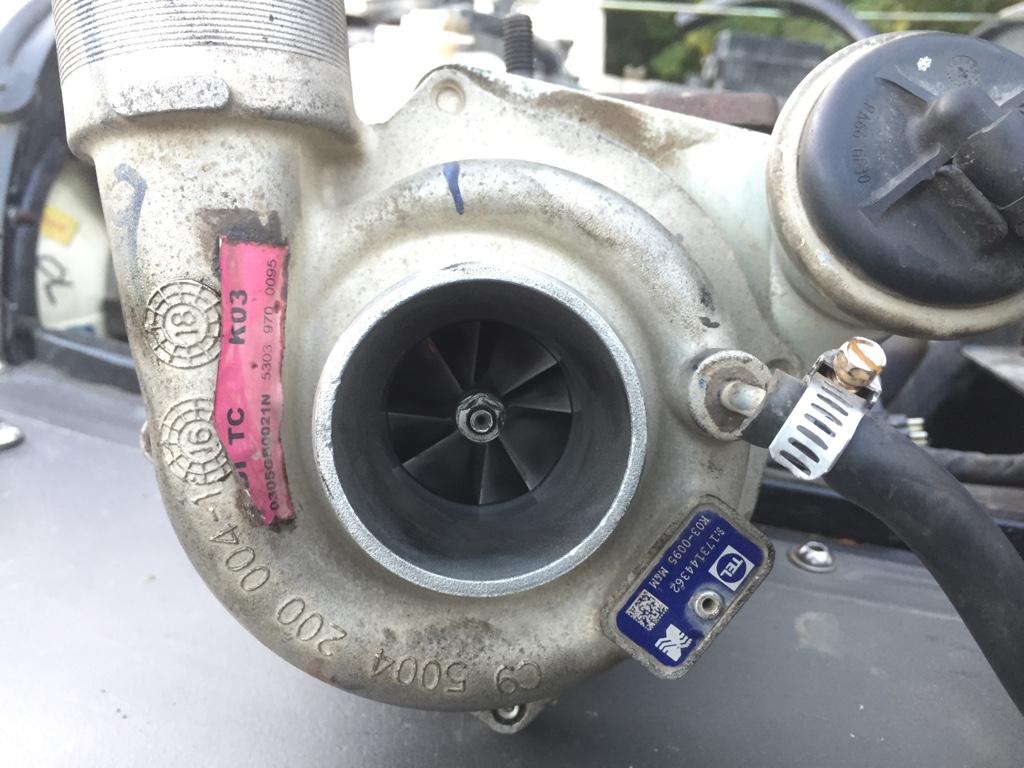

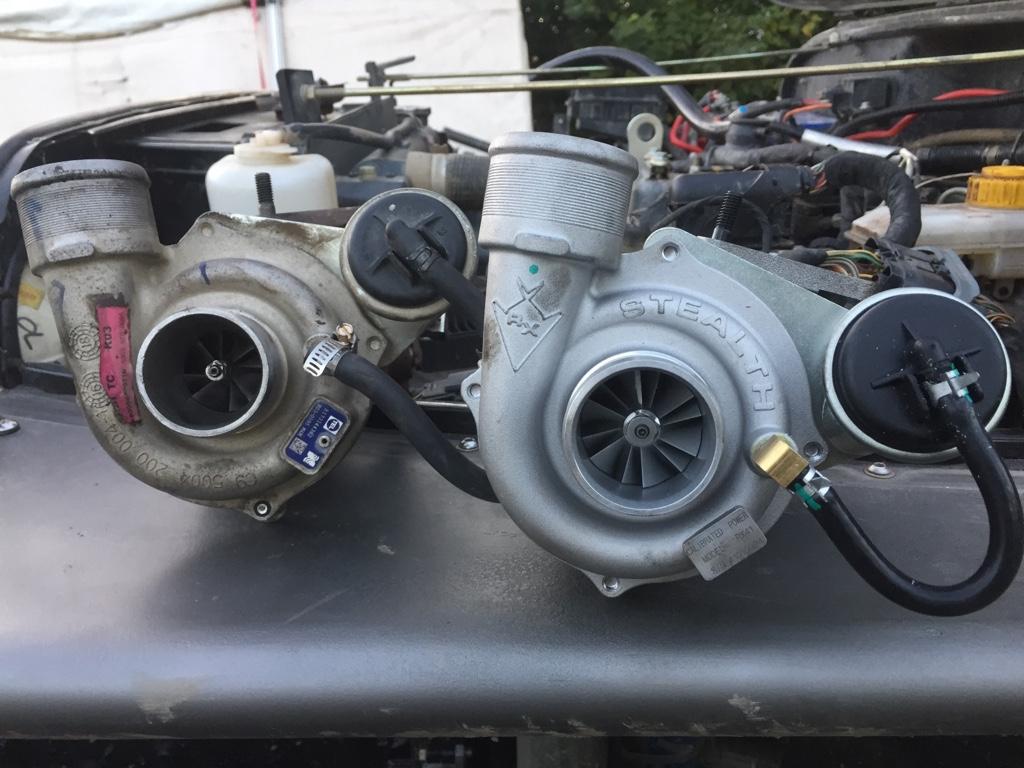

Stock K03 Turbo has a 34mm compressor wheel, with 4/4 blades. The RX41 is a 41mm compressor wheel, with 8/8 blades.


Max A.

Well-known member
Joined
Nov 4, 2019
Messages
584
Points
93
Location
Baltimore, MD, USA
Roxor Ownership
Roxor Owner
Roxor #
00168
The stock turbo is helped with the boost valve that tricks it into opening at 16psi.

I was fearing more lag with a slightly bigger turbo but so far so good. If anything the power delivery Is much smoother. More linear torque curve. I’m happy with it.


Sent from my iPad using Tapatalk


Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
2,195
Points
113
Location
Hurricane, WV, USA
Roxor Ownership
Roxor Owner
Roxor #
2507

BDRAG

Well-known member
Lifetime Member
Joined
Aug 26, 2018
Messages
720
Points
93
Location
DALLAS AREA
Roxor Ownership
No longer own
Roxor #
:-(

Cloud

Active member
Lifetime Member
Joined
Oct 25, 2020
Messages
221
Points
43
Location
Freedomland
Roxor Ownership
Roxor Owner
Roxor #
6527
Holy *hit dude, I just made it through every comment on every page of this thread.

Guess I'll say goodbye to six months wages come spring. My only saving grace is that I am waiting to start a government job that'll force me to retire at 56 and maybe just maybe I'll start in March. If I'm pushed until July or later you can expect me to be placing some orders with you.

I wonder if we can sleeve the stock axles.


Suck build dude, this is pretty much everything I wanted my 4runner to be, but I decided to sink too much money into my stock diffs so SAS is out of the question for a very long time and my *hit weighs 6000lbs.

I need some peanut butter because I'm super jelly right now


Max A.

Well-known member
Joined
Nov 4, 2019
Messages
584
Points
93
Location
Baltimore, MD, USA
Roxor Ownership
Roxor Owner
Roxor #
00168

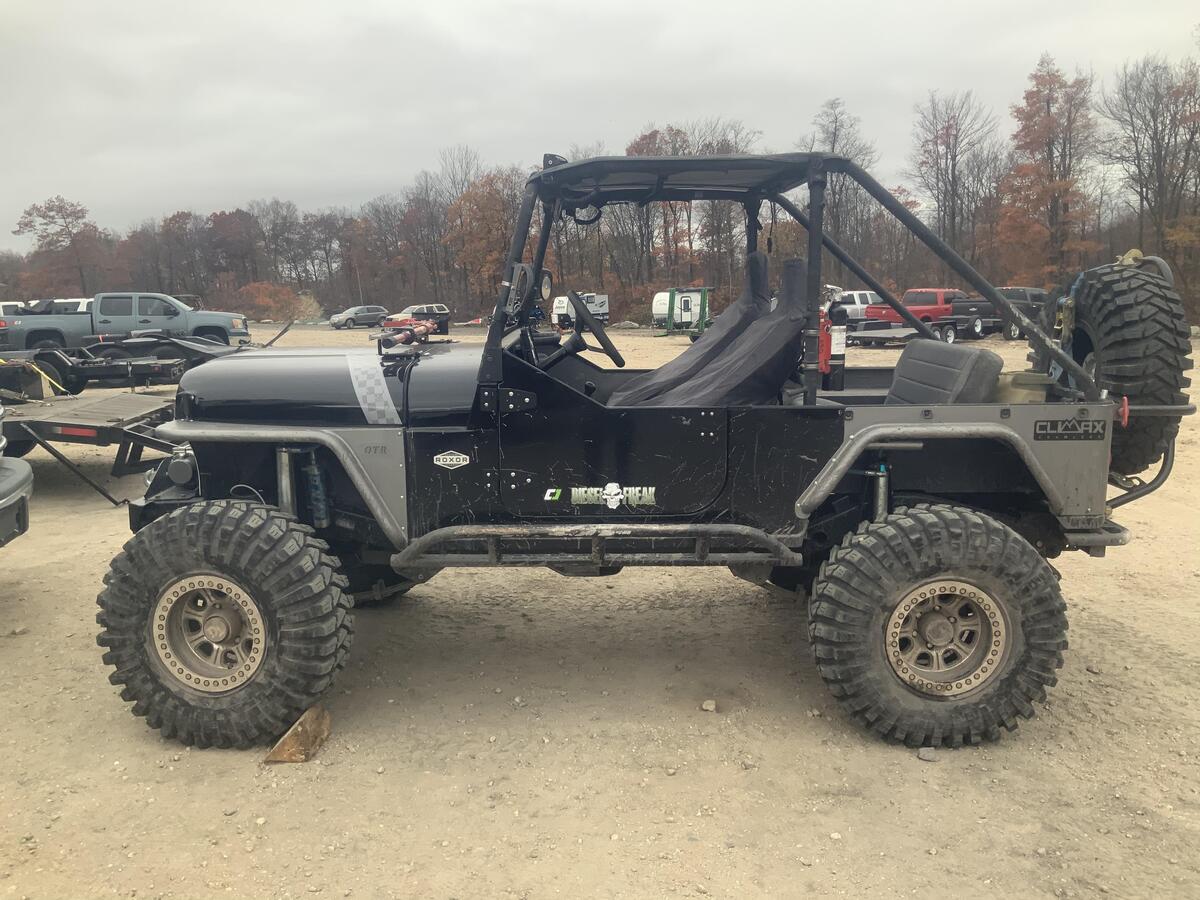

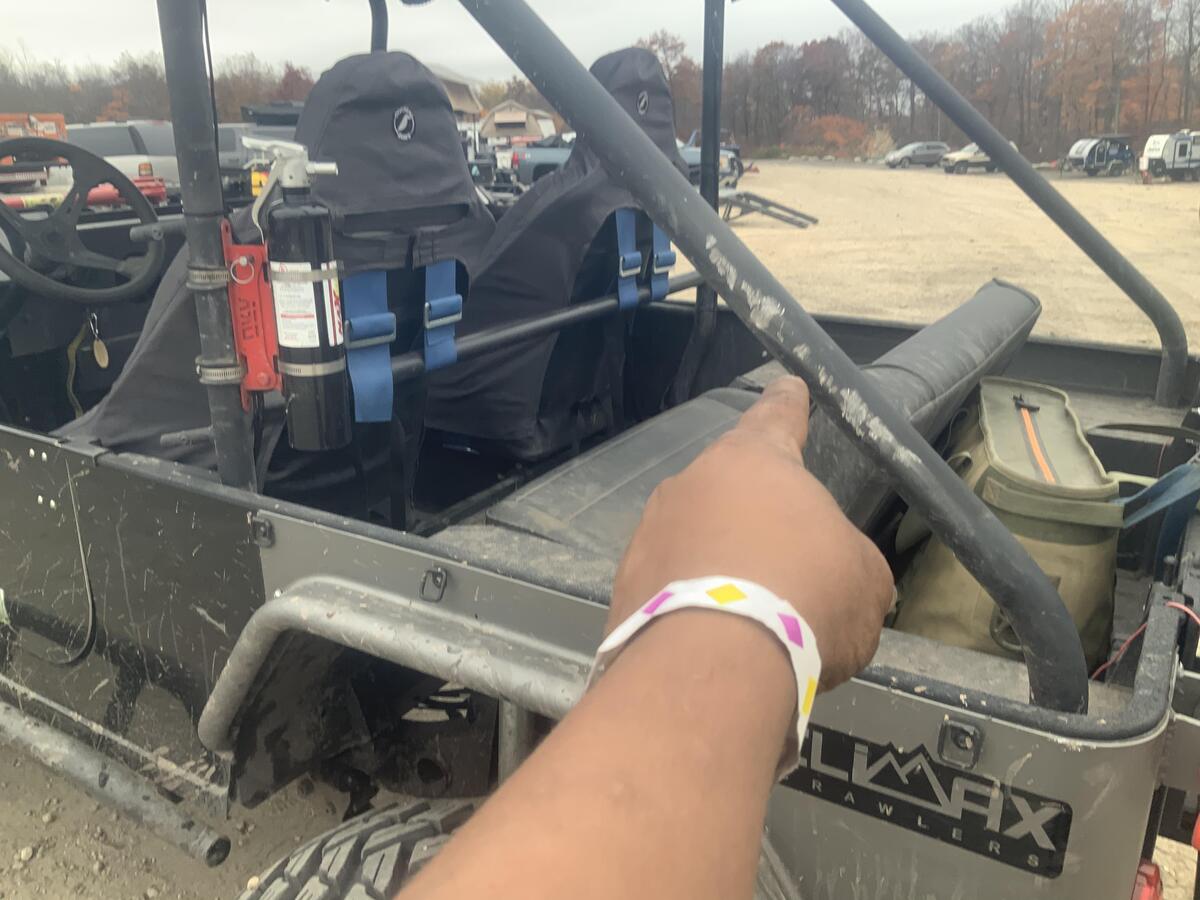

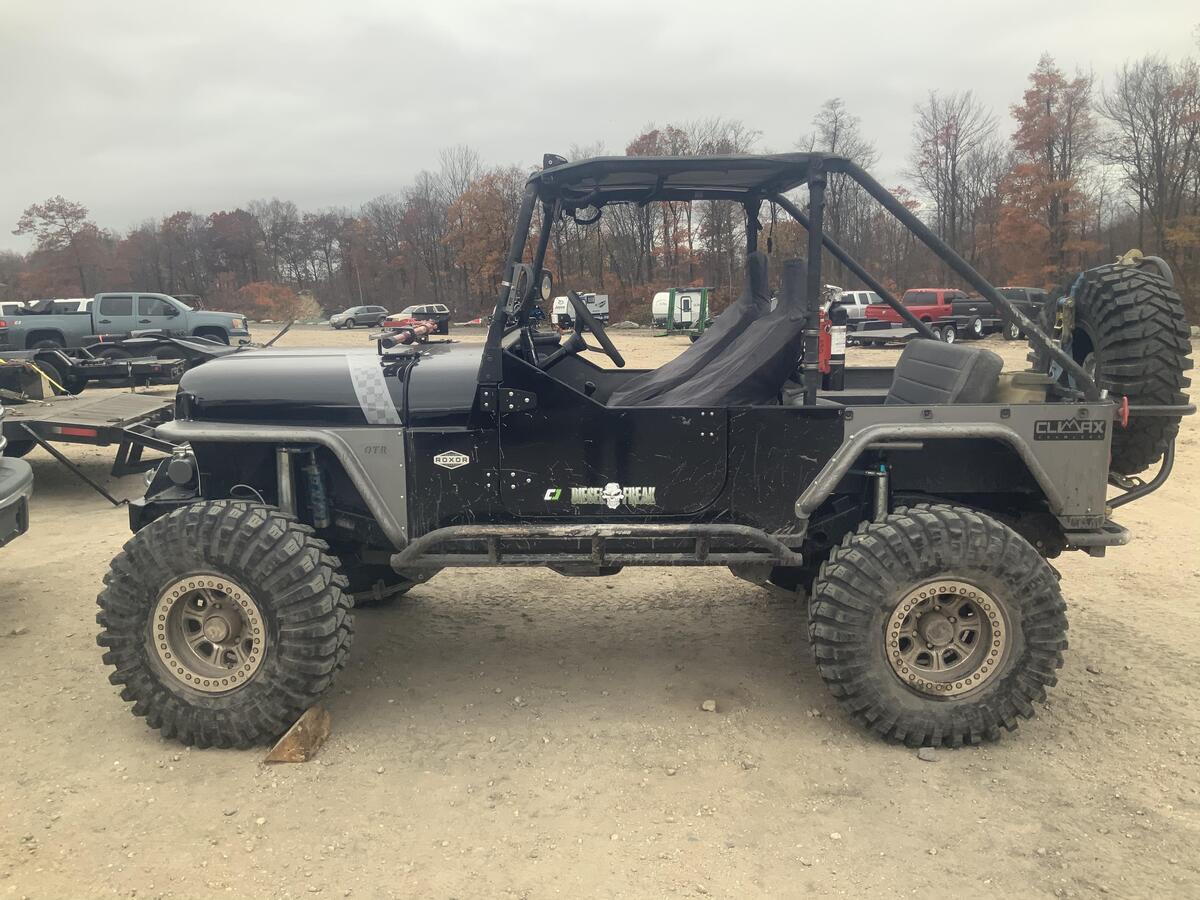

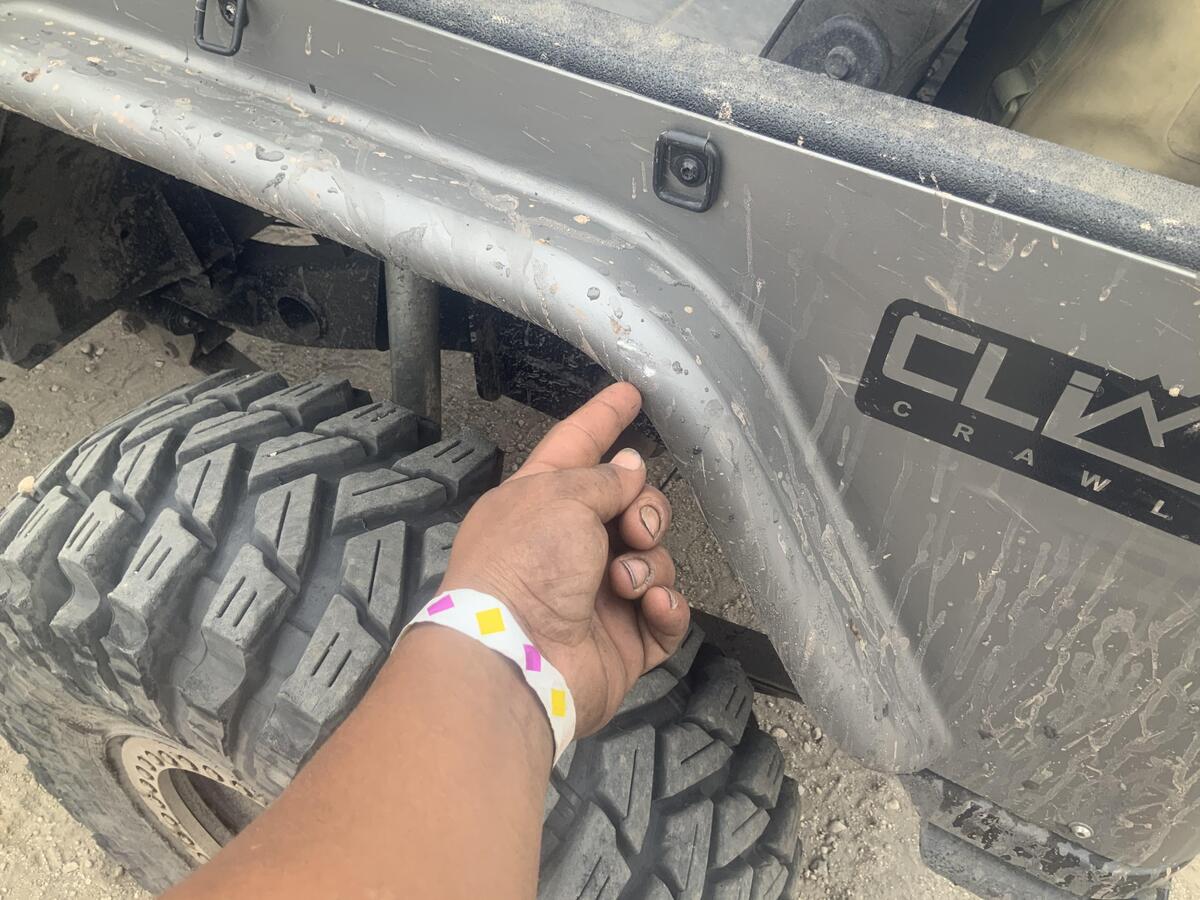

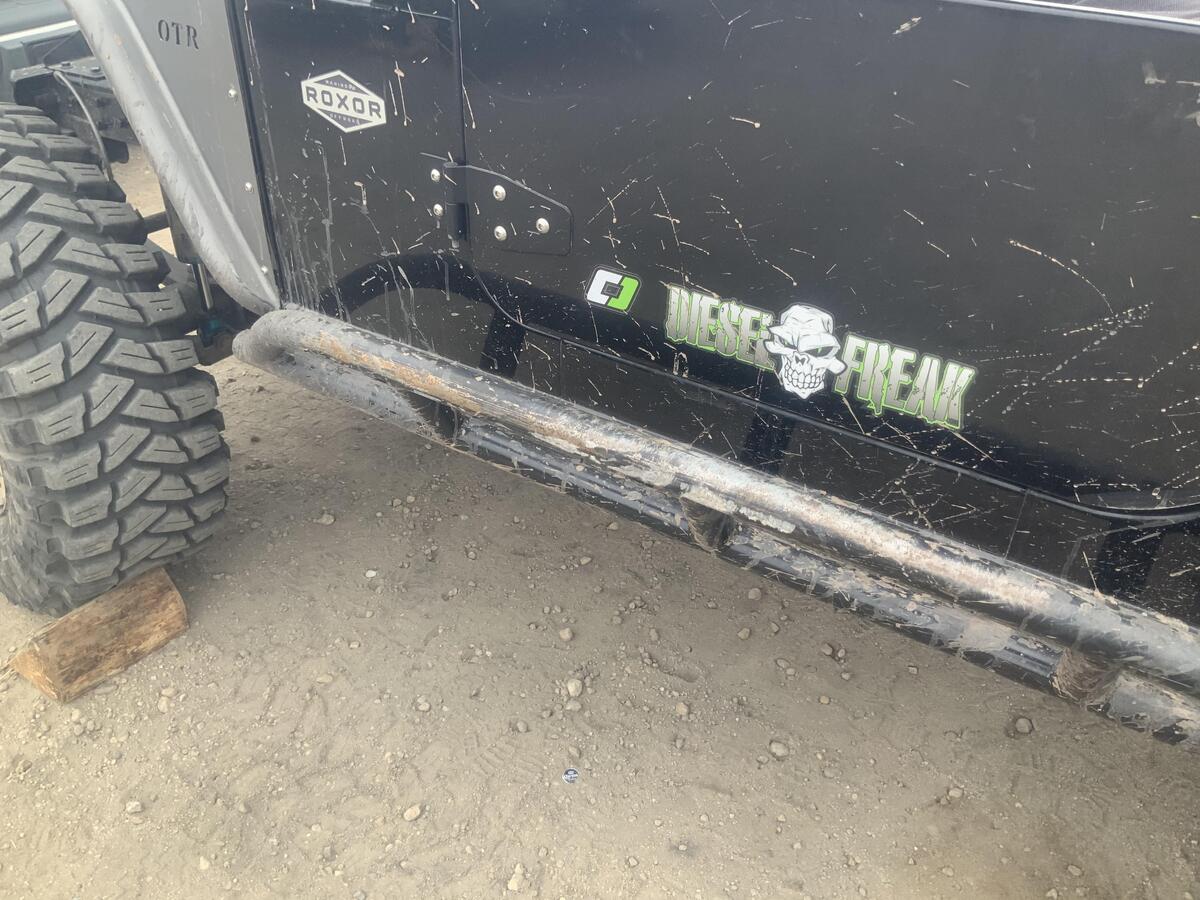

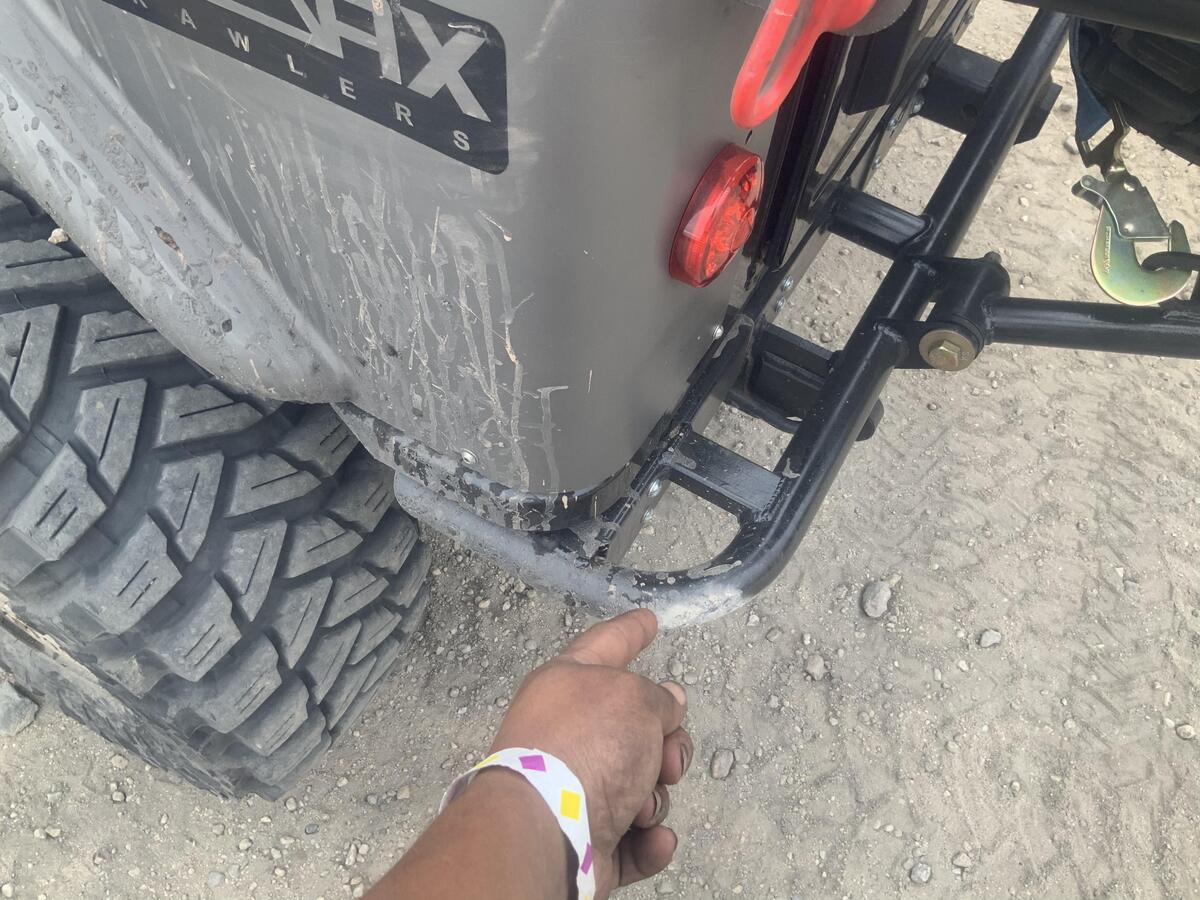

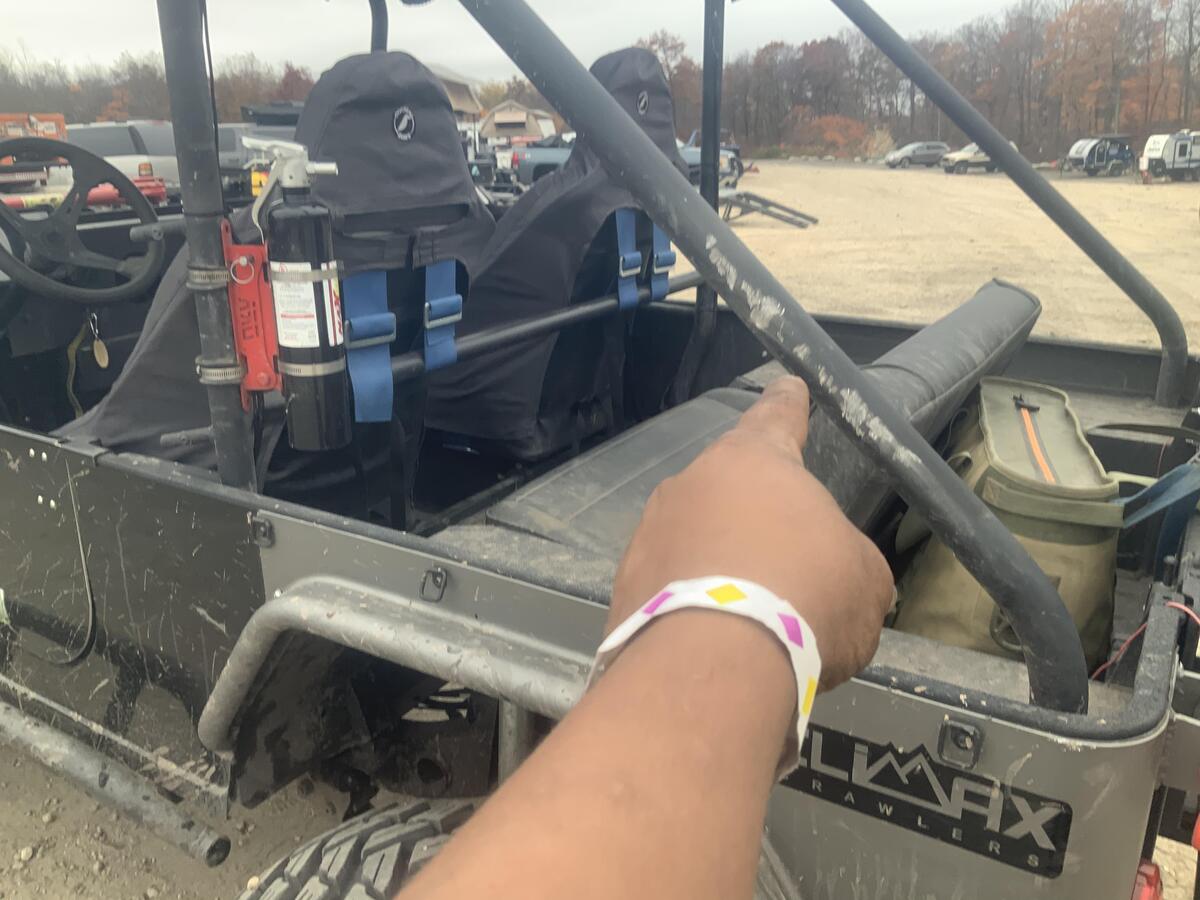

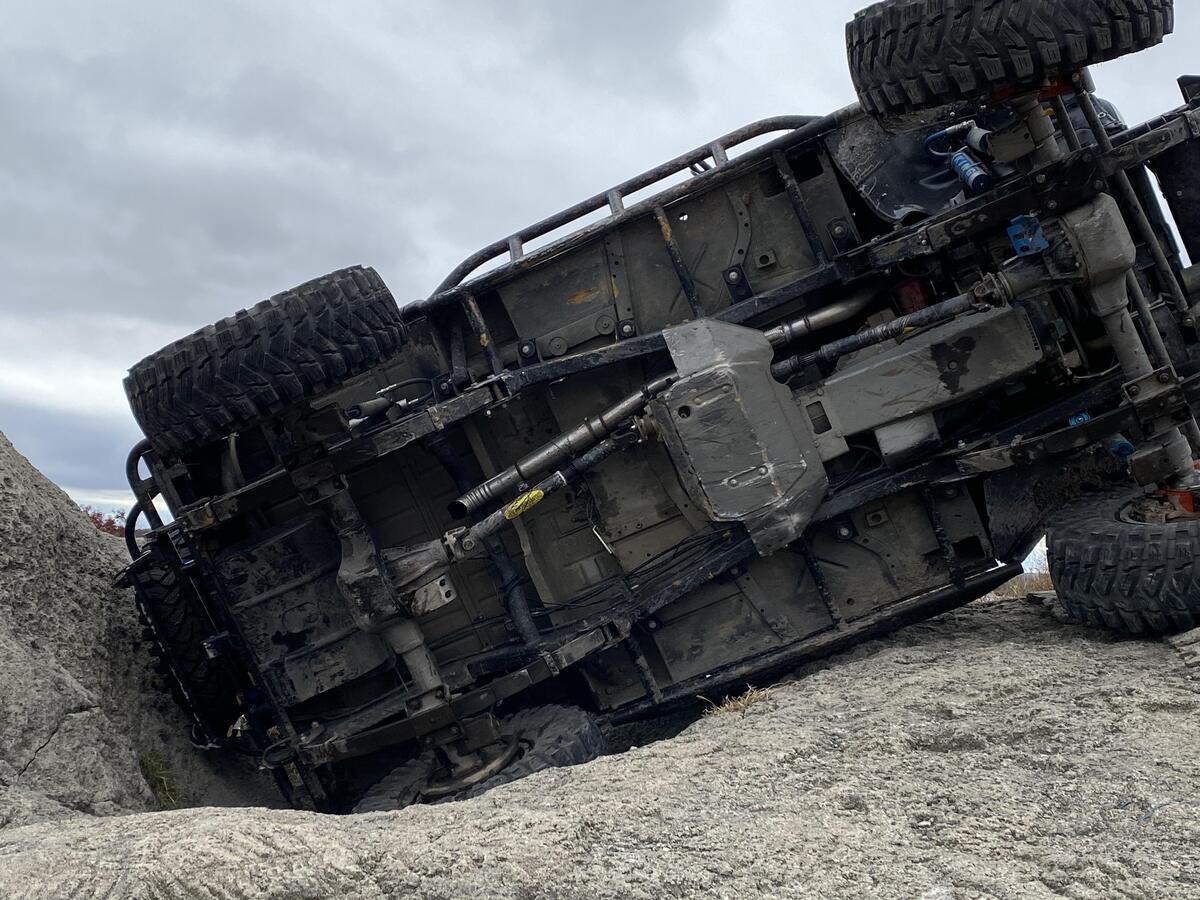

I spent the last week or 2 trying to figure out how I wanted to build my cage. Drawling after drawing and I couldn’t some up with something I was excited about. It’s hard to build a “cool” cage and also make it strong. There is a lot more engineering that goes into it then just sticking tube together with electricity.

I came up with a couple strong designs but they lacked character. Much like this one I drew up.



Today I was feeling extra motivated and decided to go out and just free hand the general shape. Not really knowing what I wanted I made a wish list.

Strong
Safe
Fit my co driver for hammers(he is 6.2)
Retain the roxor seat storage
Fit with a yj windshield and wiper motor.
Allow for a rear seat with plenty of headroom.
And of course look cool.

After a significant amount of time holding scrap tubes up in a web of ratchet straps and bungee cords to hold everything in place, decided to start cutting.

First to go was MOST of the stock cage. I decided to make things a hell of a lot easier and retain the B pillar body height and down. It is already 1.75 DOM and .120 wall. The same tubing I’m using on the new cage. I found some 1.5 .120 wall DOM tubing from previous roll cage build an and cut sections of it to sleeve the new cage into it. A perfect tight fit and also strengthening the tubes in a critical area.






Now with the B pillar up right I could start building around that.

Here is what I came up with free hand, because sometimes it’s best to just start cutting and bending with a vision in mind.






The hardest part so far was getting up rights for the dash bar. The factory switch panel is directly in the way so I had to get fancy to allow access to the switches.




I plan on spending most of my day tomorrow adding triangulation and bracing. I’m liking where this is headed!


Sent from my iPad using Tapatalk

Last edited:
Top
