Max’s Roxor Build

[Max A.]

When the HELL did you have time to cut, debur and ship my set of shackles today? Lol. I feel I was just in the way .....

BDRAG

Heck no, if anything your helping!


Sent from my iPad using Tapatalk



[Max A.]

Some pics from today.

Looks like my Barnes order will be in tomorrow so I can fix the rear shackle geometry. It should sit about 2 inches lower in the rear once that’s done. May be able to get the new rear axle mocked up as well.

King Shocks is completely shut down for now. The build time was about 5 weeks for the shocks but who knows now.

Raceline also is a little behind drilling out my wheels. Fingers crossed I’ll have them next week so I can get the 35s on.


Sent from my iPad using Tapatalk



[Max A.]

Happy with the result. Time to weld it up and make it permanent.


Sent from my iPad using Tapatalk



[jrobz23]

Awesome work!!



[Bob R]

I just read this through again. You are doing a great job on it. It looks very impressive so far , and keeps getting better.

Bob R



[Semperfi]

I respect any man that can put a differential on the counter top along side a toaster! Dude, your way above my league and you have my complete respect. I am excited to see where this awesome build goes. Keep on a rollin and a clattering.



[Max A.]

Thanks!


Sent from my iPad using Tapatalk



[Max A.]

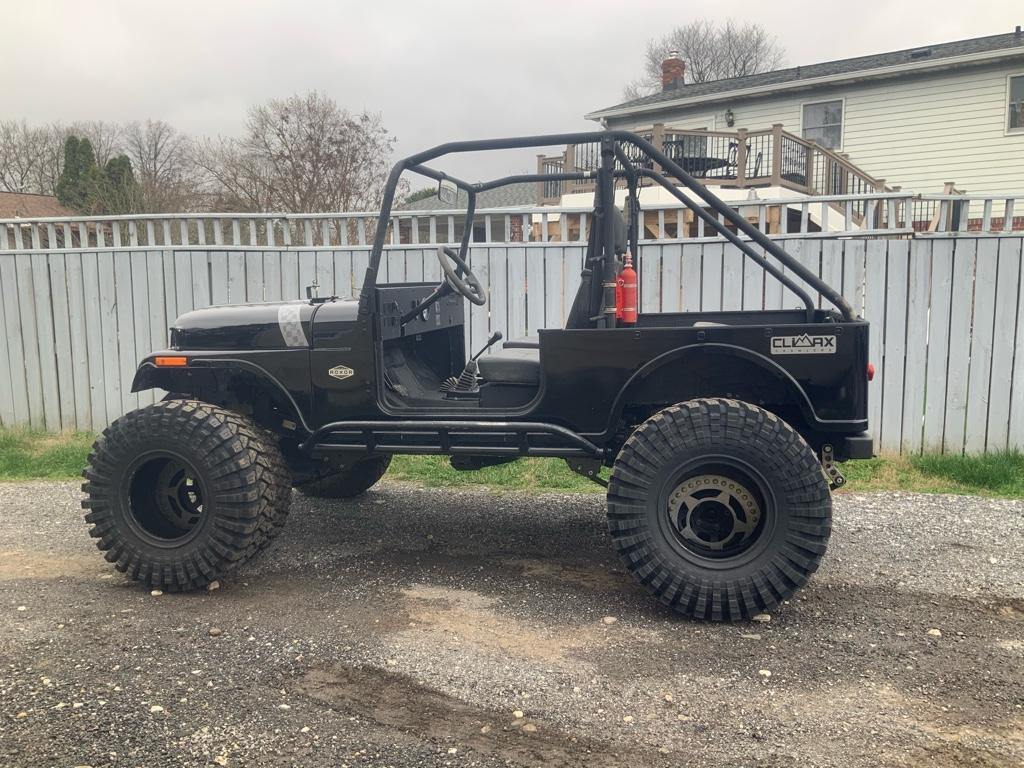

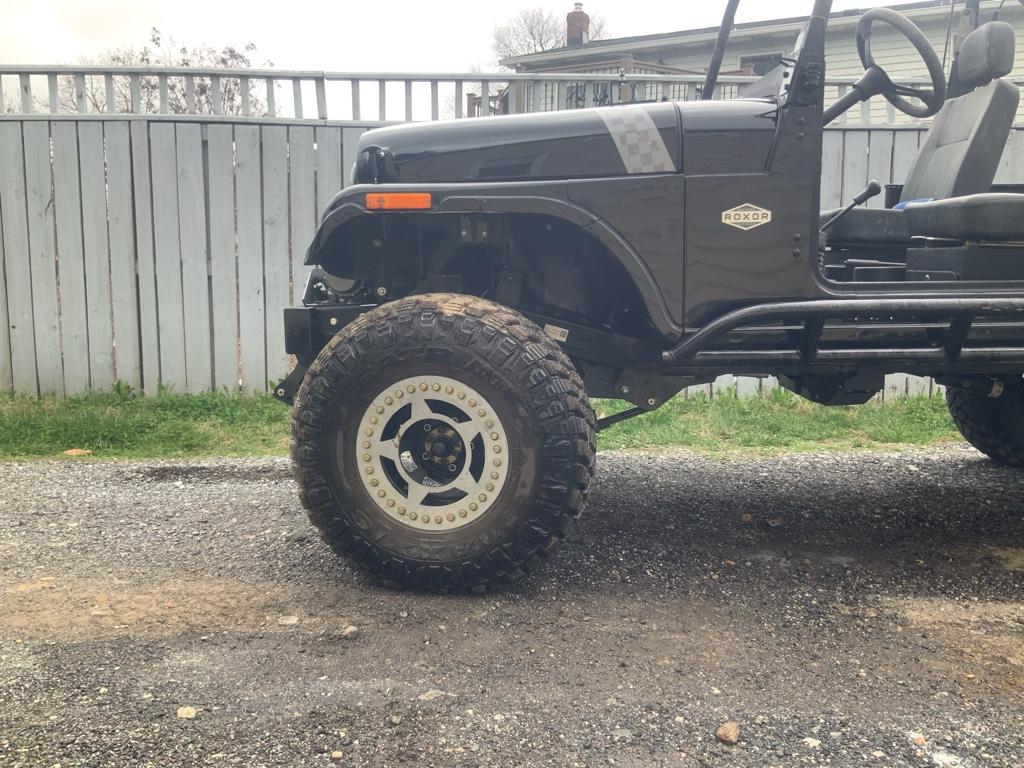

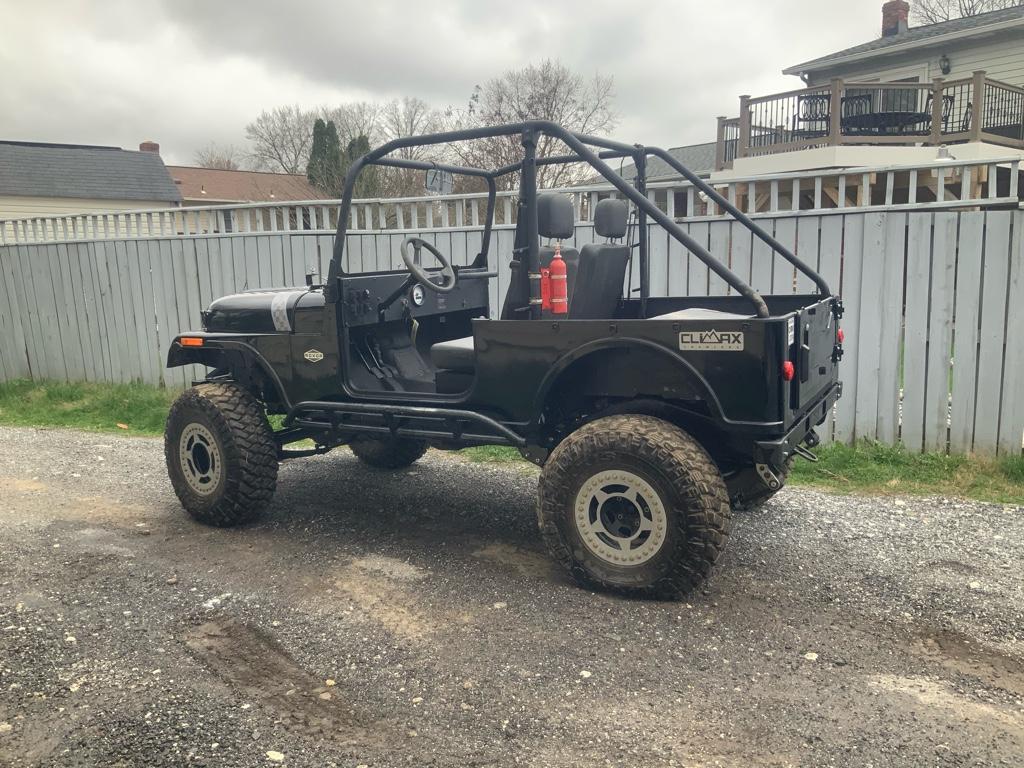

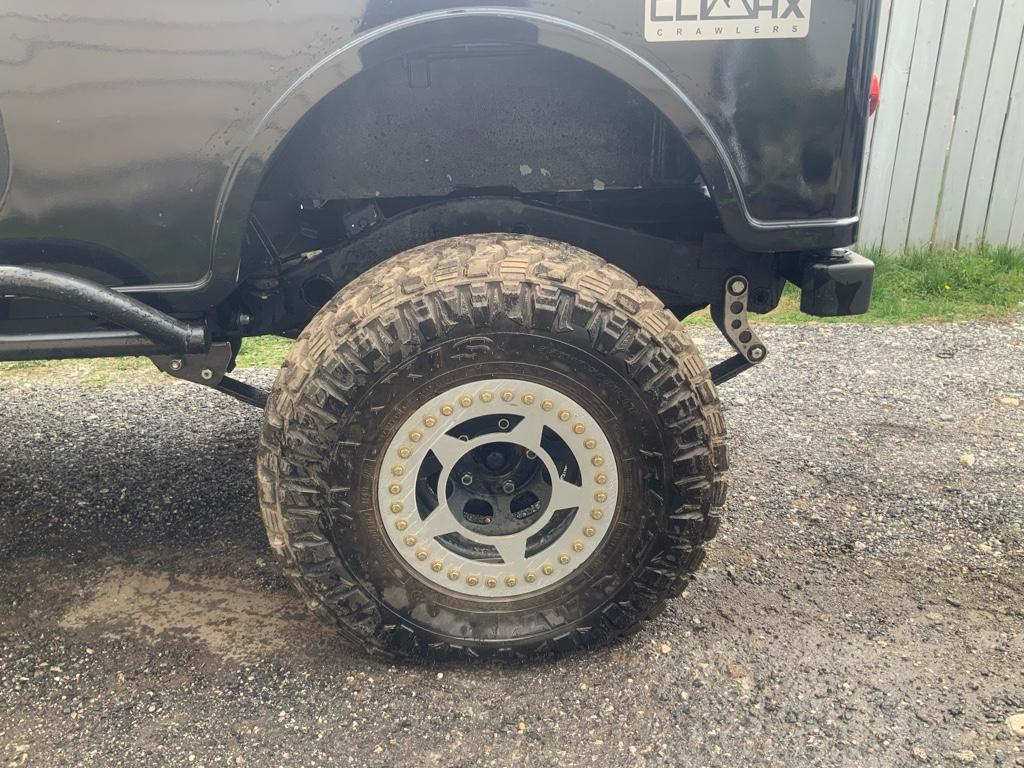

Here she is all welded up.

Sent from my iPad using Tapatalk



[BDRAG]

Here she is all welded up.
View attachment 6269
View attachment 6270
View attachment 6271
View attachment 6272
View attachment 6273


Sent from my iPad using Tapatalk

Nice! Now go break something?

BDRAG



[Max A.]

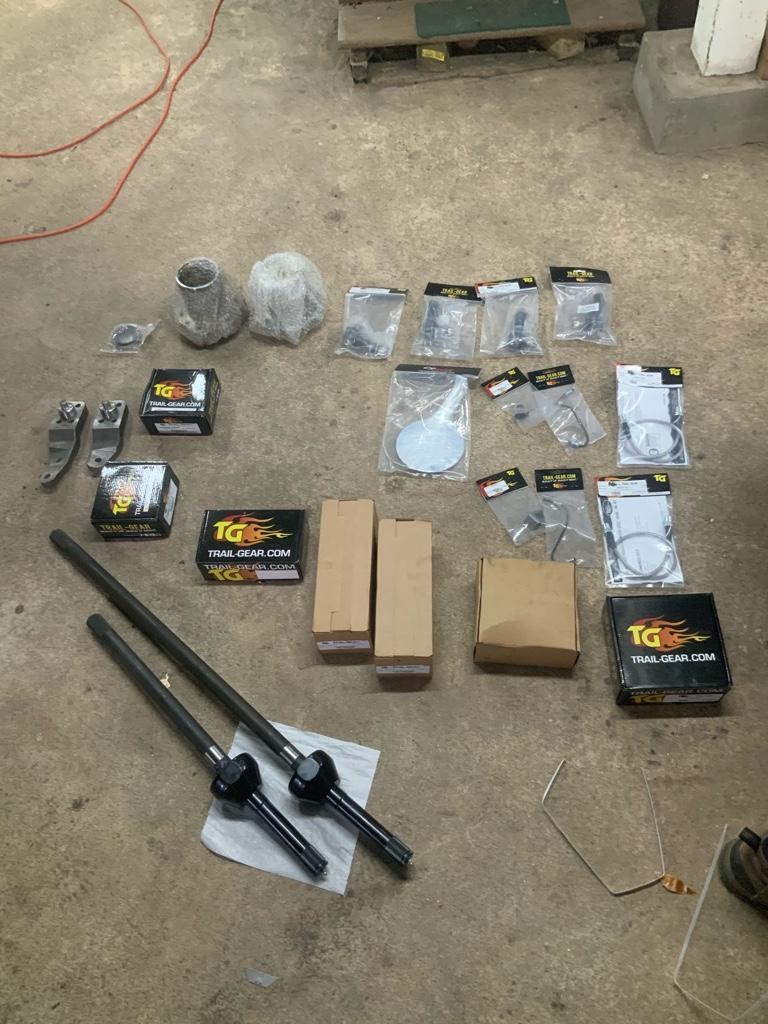

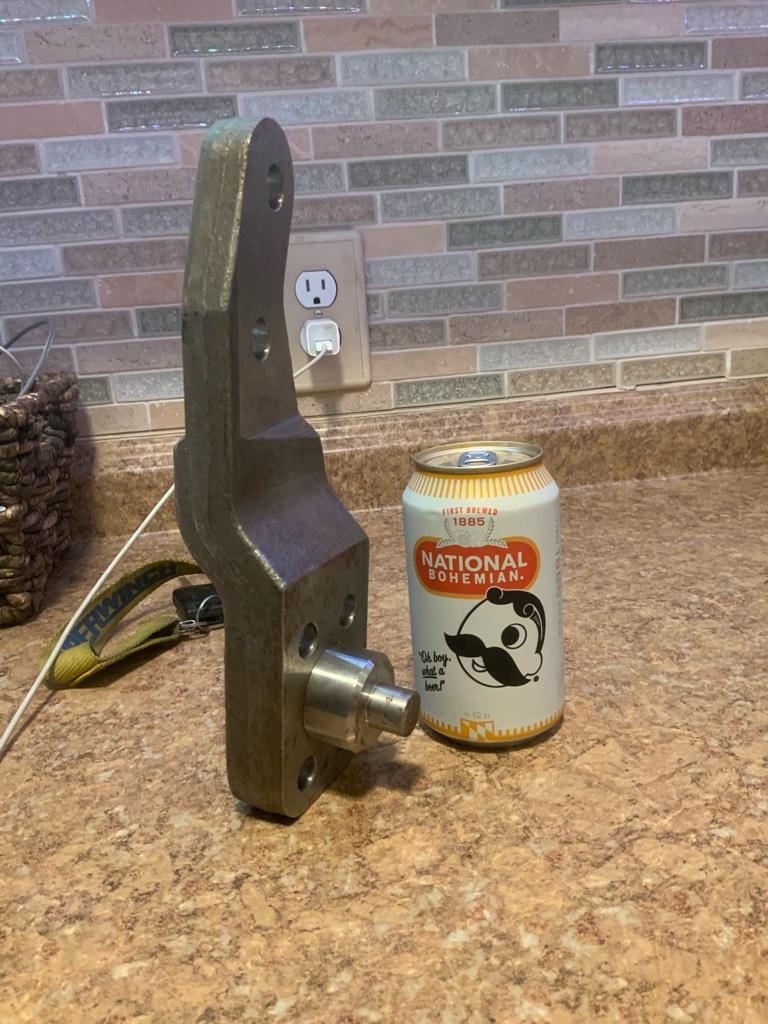

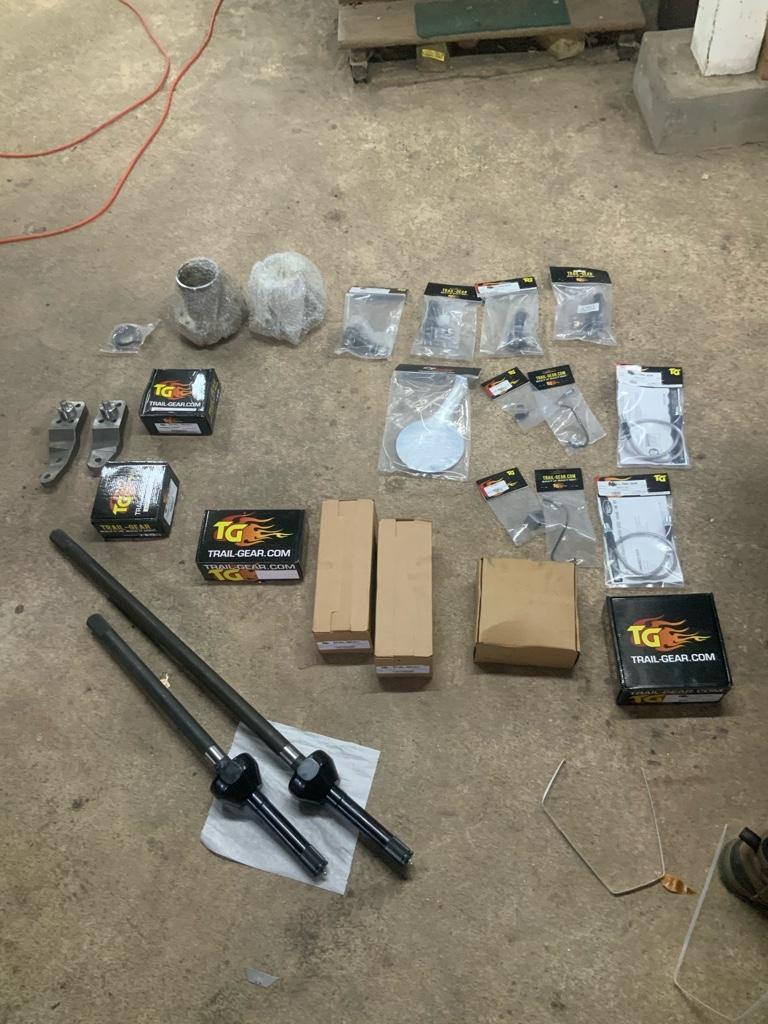

Axles parts came today!

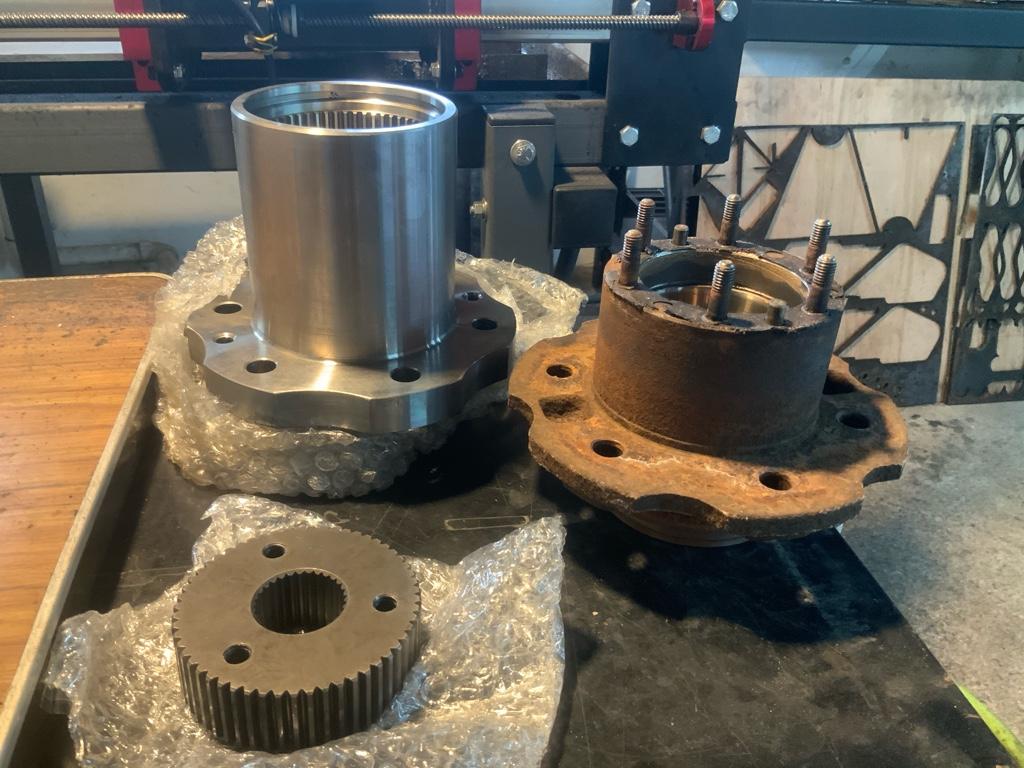

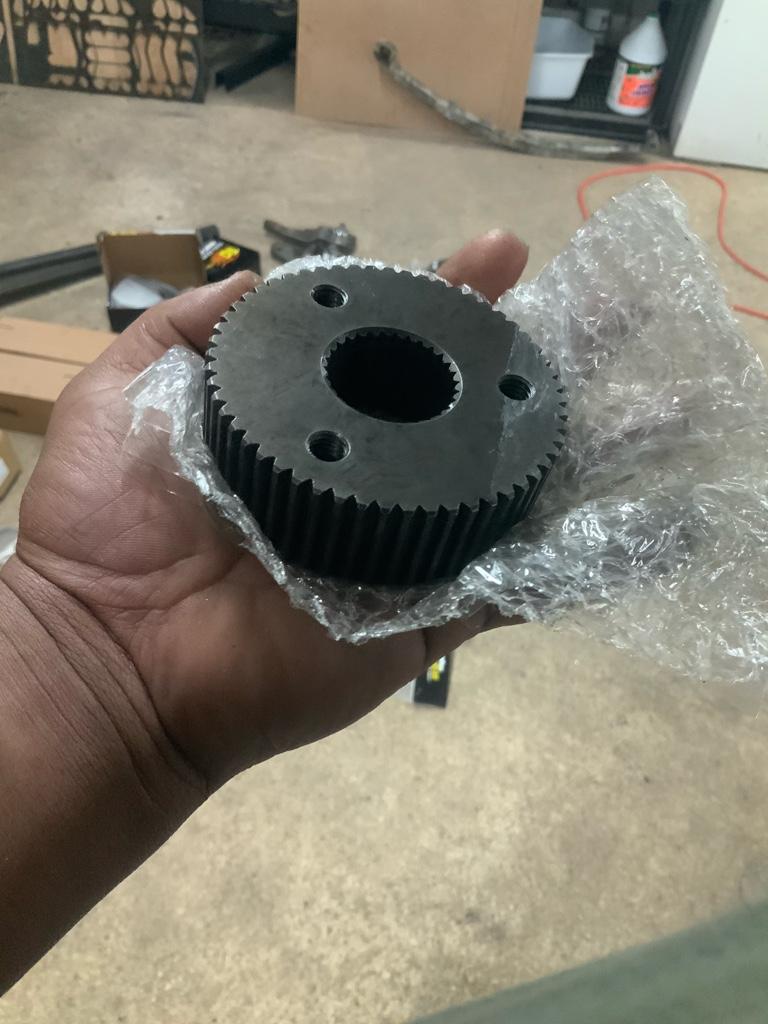

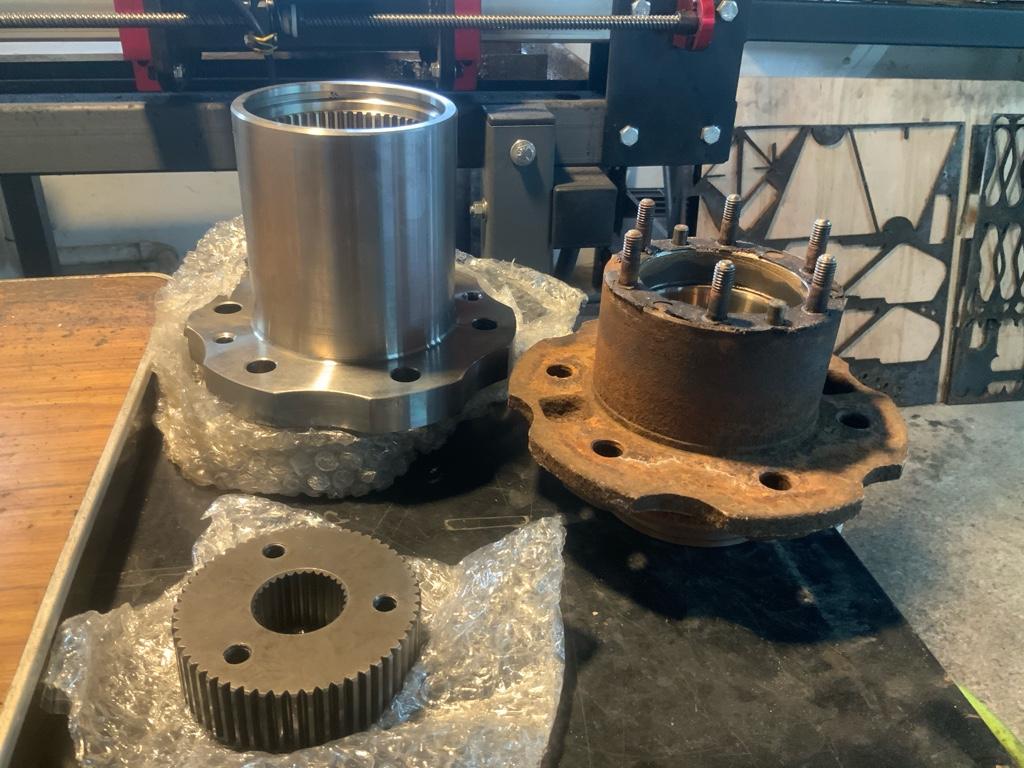

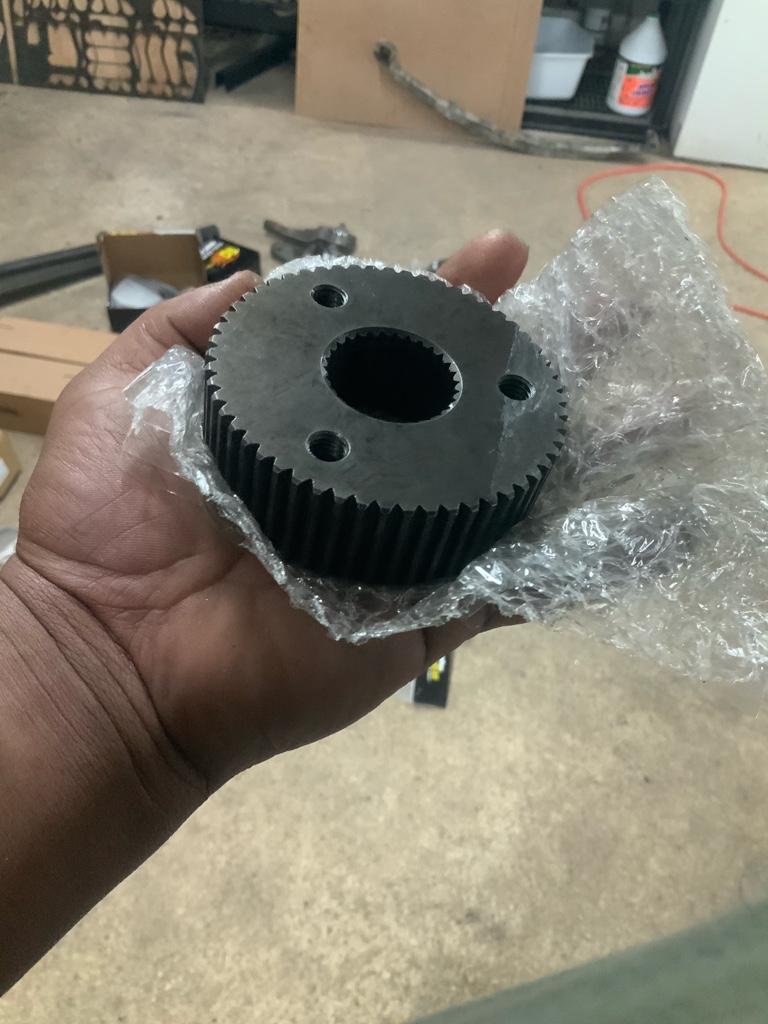

Check out these hubs! The right are stock Toyota hubs left is the stud-less hubs. That big spline slug replaces the locking hub that is a failure point. Keeping it simple.

Sent from my iPad using Tapatalk



[BDRAG]

Axles parts came today!

Check out these hubs! The right are stock Toyota hubs left is the stud-less hubs. That big spline slug replaces the locking hub that is a failure point. Keeping it simple.
View attachment 6280
View attachment 6281
View attachment 6282
View attachment 6283


Sent from my iPad using Tapatalk
[/QUOTE


Your missing something in that pile of parts. No way you got everything you need in one shot?? Lol.

BDRAG



[Max A.]

Still waiting on wheels before I do the axle swap. Ups lost them. Then found them. And is now taking their sweet time to deliver them.

Here are some pictures of the roxor on YJ springs.

Sent from my iPad using Tapatalk



[BDRAG]

You are one ARTICULATED kinda guy! Lol. Cool beans bubba............... YOUR POOR HOIST IS SCREAMING! Lol.

BDRAG



[Spanky]

How much lift did you end up with? And what's the major advantage to going to Jeep leaf springs? Thanks in advance....



[Max A.]

How much lift did you end up with? And what's the major advantage to going to Jeep leaf springs? Thanks in advance....

I think I’ve covered this in previous post but....

The biggest advantage is a long spring that is mounted under the axle for much more usable travel. Not just a lift for looks.

Pros:
-Longer front leafs make for a HUGE improvement in ride quality, absorbing the supple bumps without giving up load capacity.
-Large lift without all the disadvantages of spring over.
-updated spring bushings to eliminate the spring rub problem.
-The springs are inexpensive even for a high quality pair. (I used rubicon express springs at $75 a corner) and are available in many lift heights and load capacities.

Cons:
- Ummmm.....


Sent from my iPad using Tapatalk



[Spanky]

I think I’ve covered this in previous post but....

The biggest advantage is a long spring that is mounted under the axle for much more usable travel. Not just a lift for looks.

Pros:
-Longer front leafs make for a HUGE improvement in ride quality, absorbing the supple bumps without giving up load capacity.
-Large lift without all the disadvantages of spring over.
-updated spring bushings to eliminate the spring rub problem.
-The springs are inexpensive even for a high quality pair. (I used rubicon express springs at $75 a corner) and are available in many lift heights and load capacities.

Cons:
- Ummmm.....


Sent from my iPad using Tapatalk

Well, it looks sharp as hell. Hopefully it will meet your expectations. My only grip about our little buggies is the rough ride. Was this the kit you planned on making and selling or did you decicde against it?



[Max A.]

[mention]Spanky [/mention] I’ll sell it eventually. It will be more of a fabricators kit than a complete kit. I think for most doing just the front yj springs with 2.5 lift and a rear 1.5 shackle lift will be the best option for the everyday tinkerer. No welding needed and you still get the improvement of the front springs.

As seen here...

Sent from my iPad using Tapatalk



[Max A.]

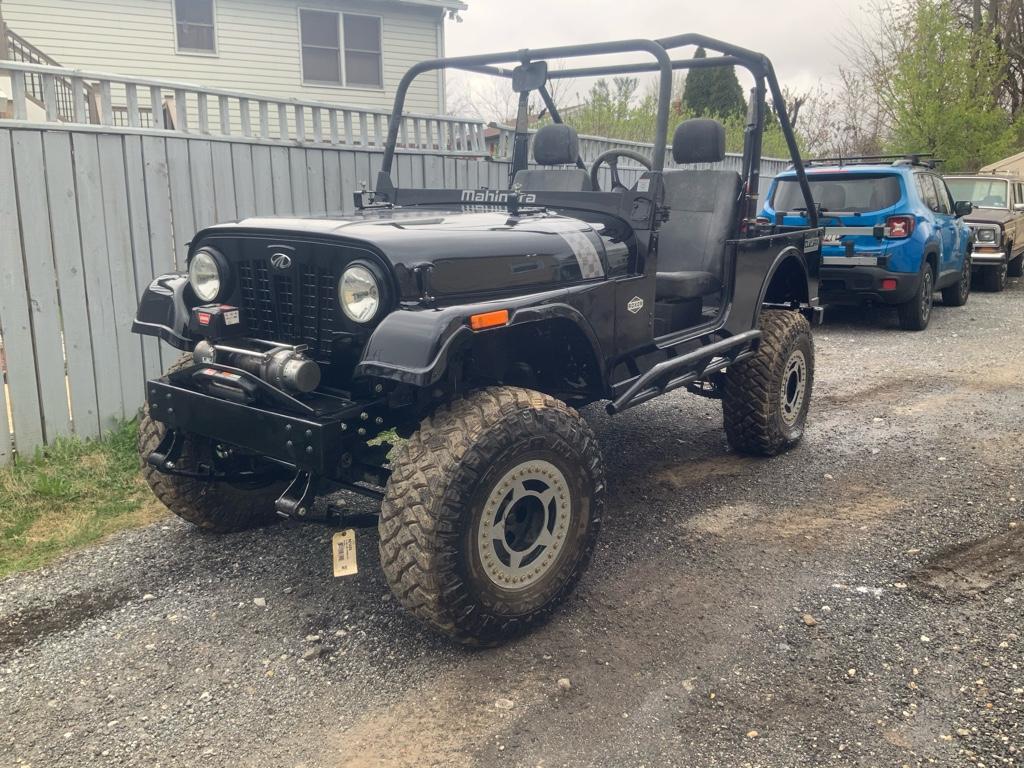

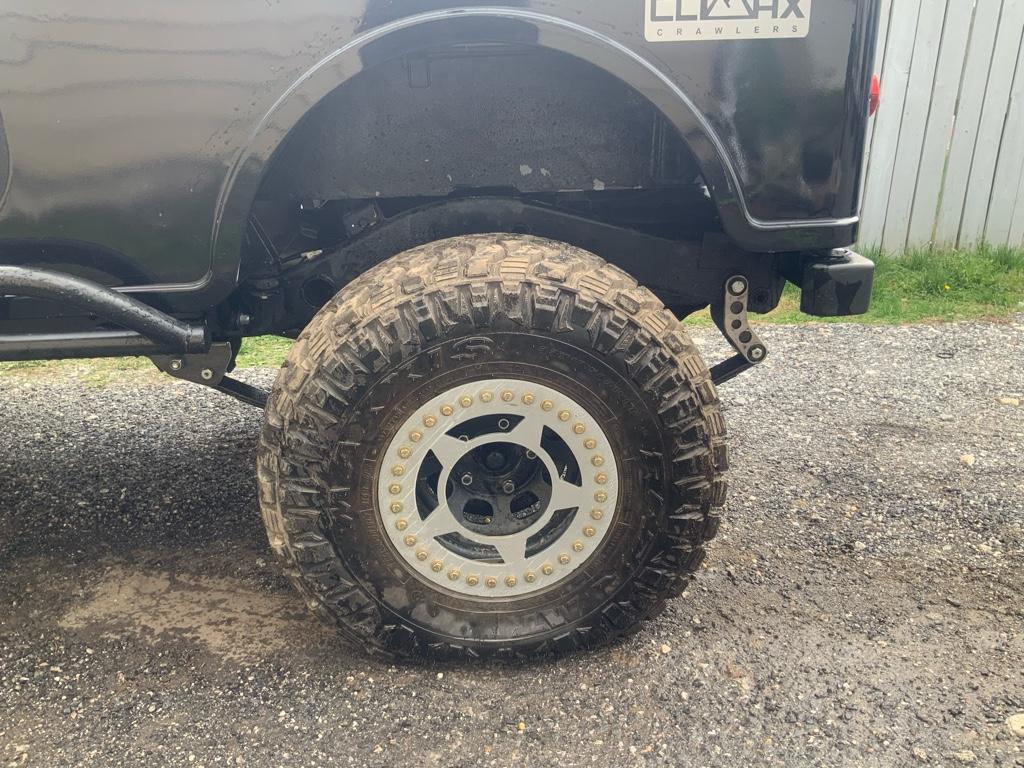

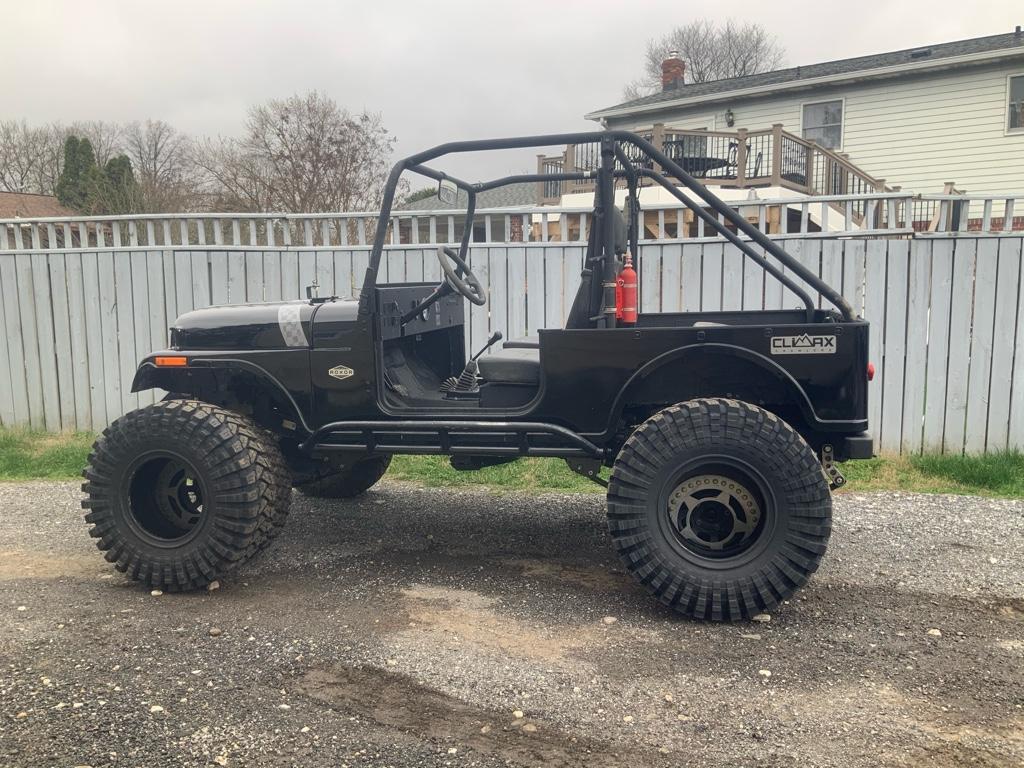

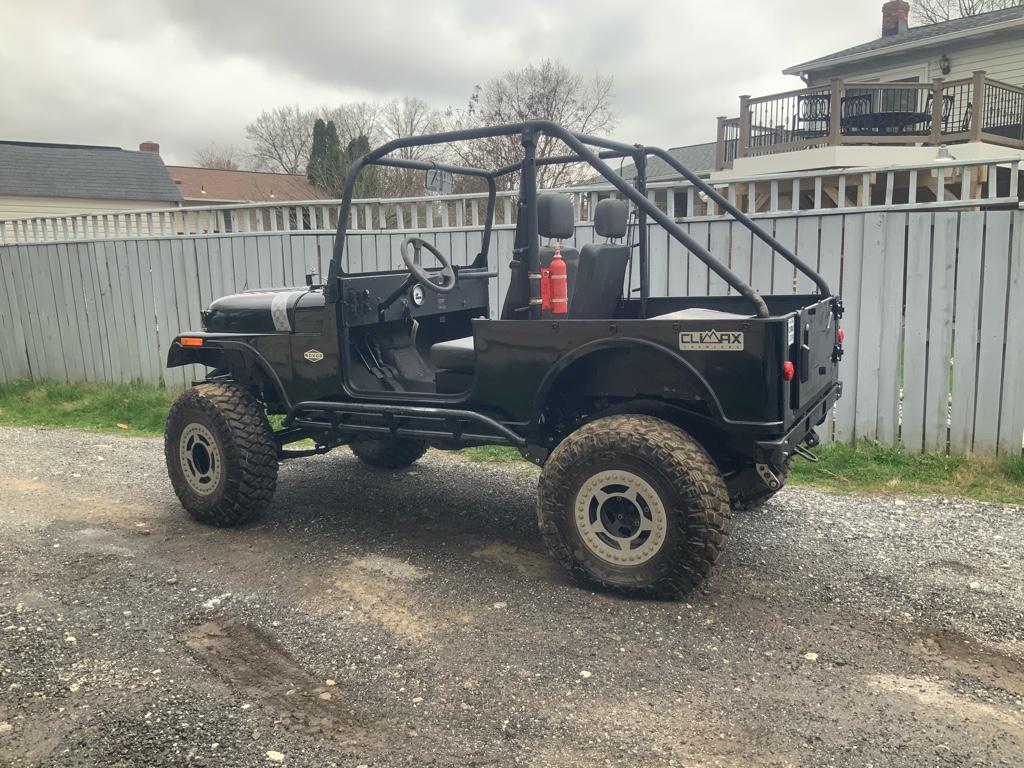

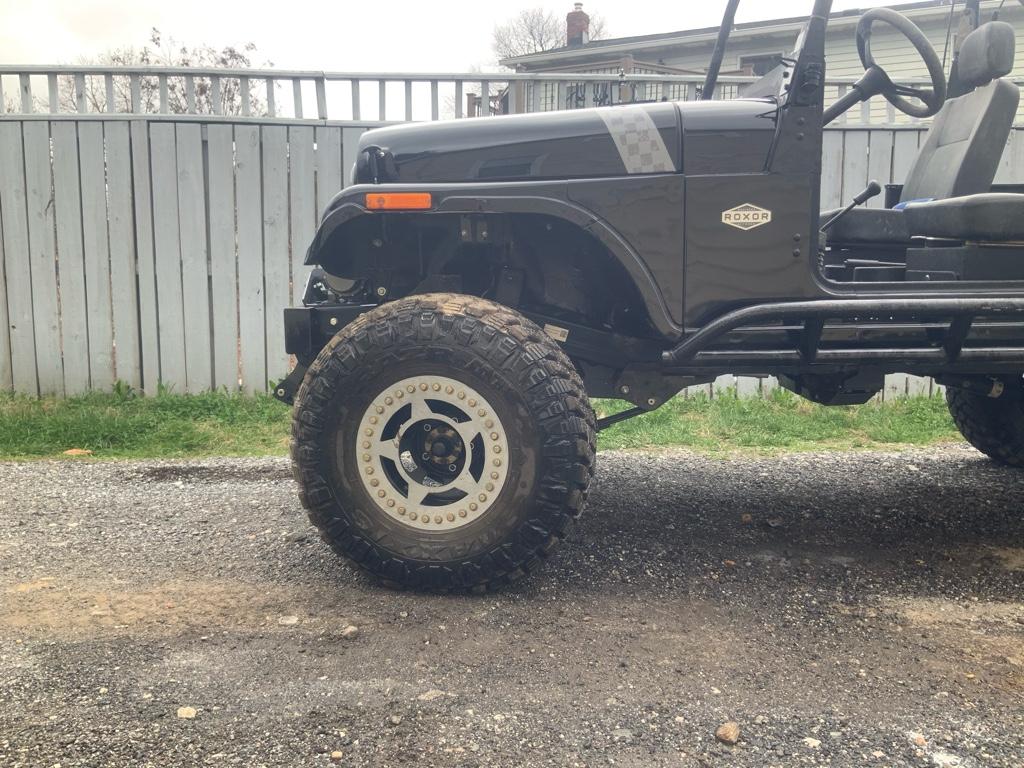

Wheels are here!

Sent from my iPad using Tapatalk



[BDRAG]

You better keep your arms inside the doors! lol. That's some grippin there for sure!

BDRAG



[Max A.]

Post 100!

Rear axle is in. Easy job took about an hour. Just need to figure out a parking brake.

Sent from my iPad using Tapatalk
