Max’s Roxor Build

[Max A.]

Still deciding how I want to go about this. Part of me wants to keep it fairly un molested but them 35s are saying something different.

Fun fact: Mahindra made “Jeep” FCs up until the 90s. I didn’t realize that until some of my Fans from India pointed it out. Pretty cool. I’d love to just plop this body over a Mahindra chassis.

Sent from my iPhone using Tapatalk



[Max A.]

Do I spy a twin stick set up in there with my old blind eyes?

Twin hydraulic hand brakes for dragging wheels around turn to reduce turning radius.


Sent from my iPhone using Tapatalk



[txroadkill]

Watch the auto salvage auctions. Seen some wrecked ones up for sale. Watched one sale twice in Arizona. I suspect it didn’t meet reserve first time. Can’t remember what it sold for second time but it was in the 5-6k range I think. And it was a hard front end collision with a possible bent frame from the looks of the pics. Theres a rolled one in Oklahoma City that looks to be an easy fix but it hasn’t been released for sale yet. Been that way for over 6 months now. But from what I’ve seen 5-6k is the bottom dollar on these regardless of conditions.



[Eyellgeteven]

Wow, that will be cool as hell!!



[MaXXis85]

I'd vote for a DD "chase/service" type rig. Have tools ready to work when out wheeling. 35's Minimum on this unit..



[Max A.]

With a boom and winch


Sent from my iPhone using Tapatalk



[txroadkill]

With a boom and winch


Sent from my iPhone using Tapatalk

You gonna be the Rory Irish of the east coast?


Sent from my iPhone using Tapatalk



[Max A.]

You gonna be the Rory Irish of the east coast?


Sent from my iPhone using Tapatalk

Rory is a cool dude.


Sent from my iPad using Tapatalk



[Max A.]

Spent my lift money on …. Well not a lift.


I love new tool day!

Sent from my iPad using Tapatalk



[Roxasuras]

Nice



[Max A.]

Next on the list is a steering upgrade. There are ways to add hydraulic assist to the stock steering set box by tapping into the box in the correct locations to act as a valve and pump fluid into a actuator. This works well on some vehicles and not so well on others. I know of 2 roxors with the stock box tapped and one person was happy with the outcome and the other was not. I figure this roxor will be racing hammers again in 2023 so it’s go big or go home.

Here is a tapped roxor box for reference.

I went with a PSC bid bore XD box for a wrangler. Adapting it looked like it was going to be easy but it always looks easy and never is.

The pitman arm came from Sam’s offroad. It is a big chunk of steel. 1 inch thick steel plate. I’ll have to cut it down and re drill it for my application.



Next to a stock roxor arm.

Sent from my iPad using Tapatalk



[Max A.]

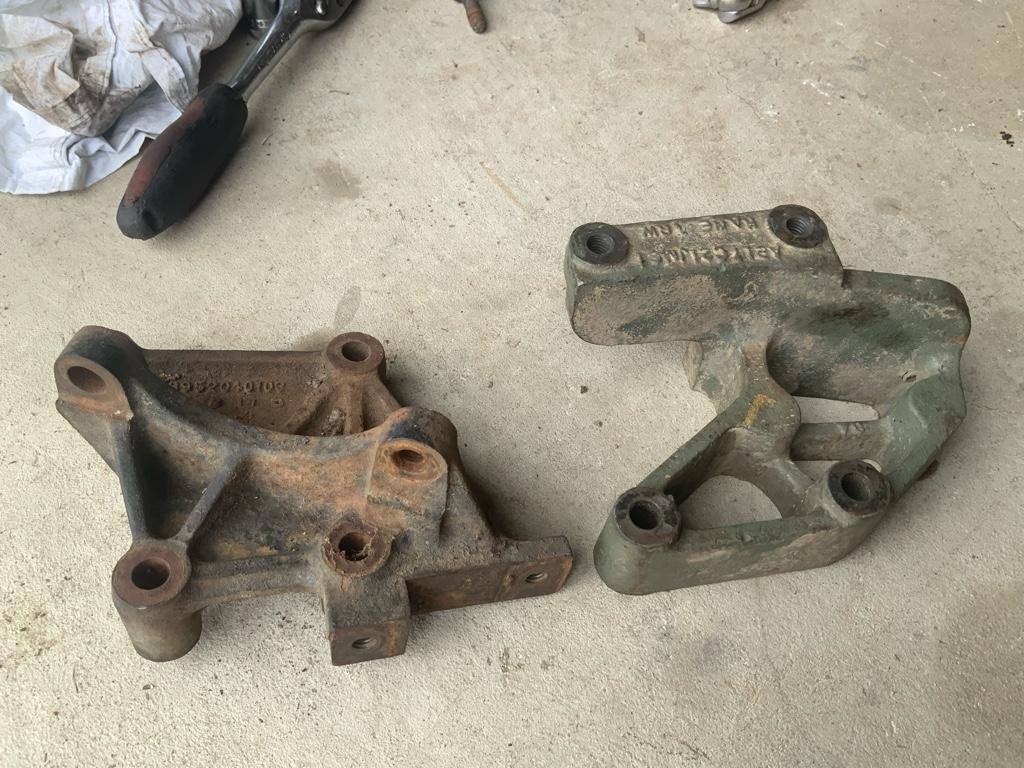

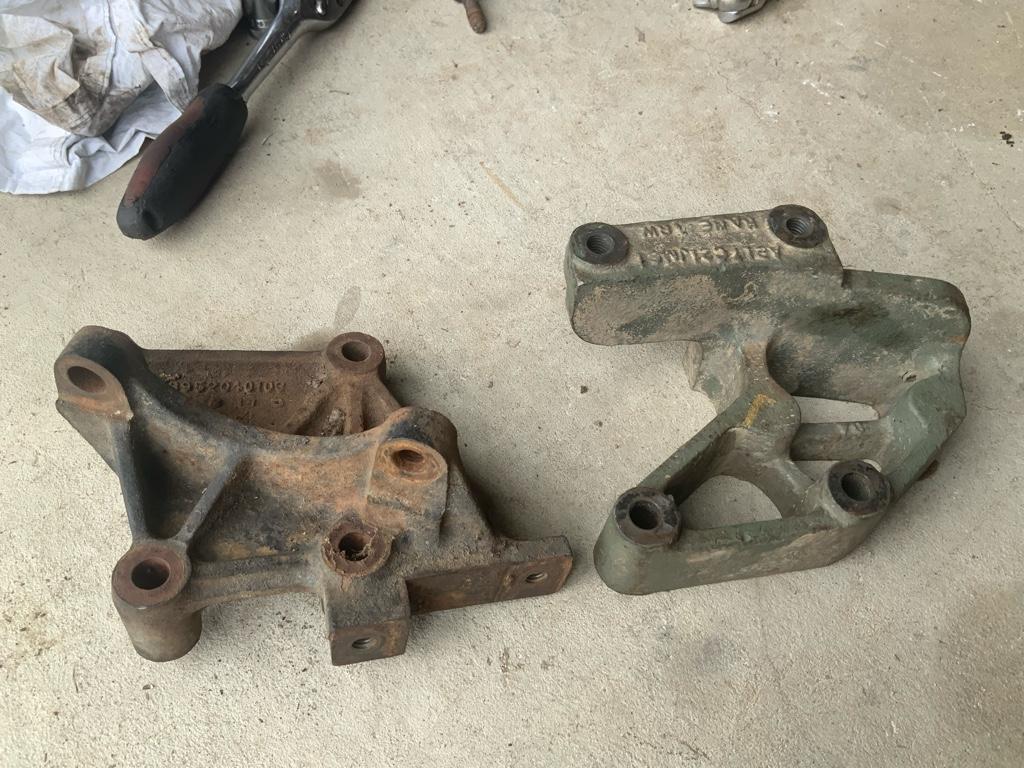

I had this wrangler spacer in my scrap metal bin. I pulled it out just in case I would ever need it. Glad I did. Left is wrangler. Right is roxor. Not a single dimension is similar.

The box also is quite a bit longer then the stock roxor box. I’ll try to get comparison photos tomorrow.

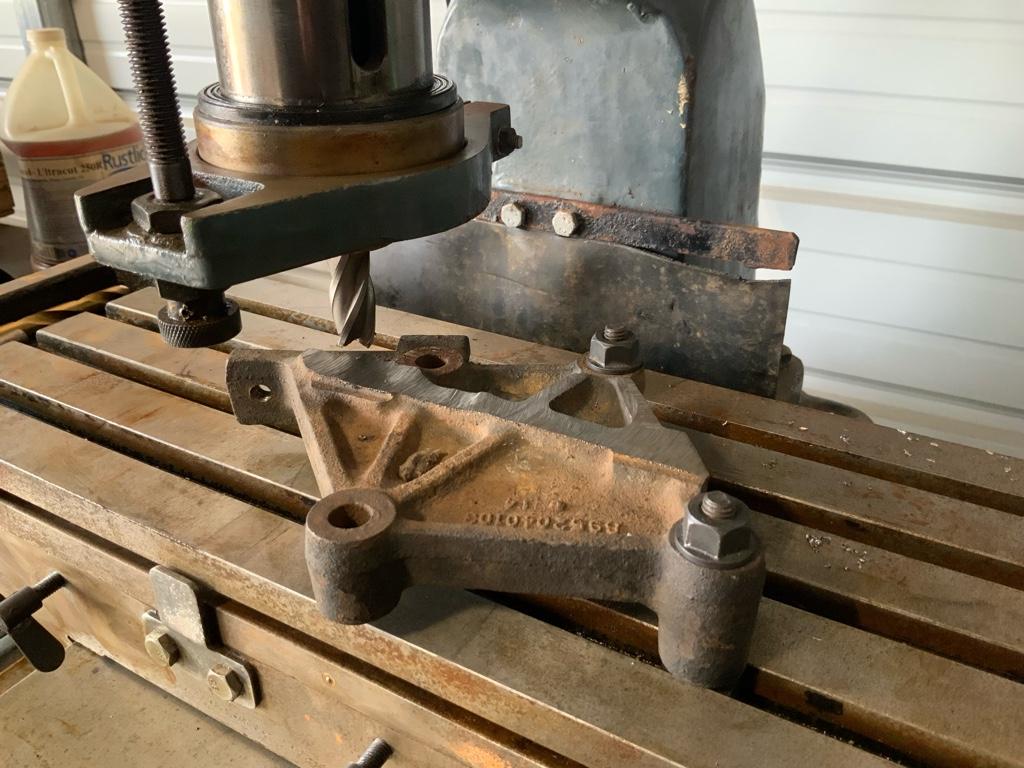

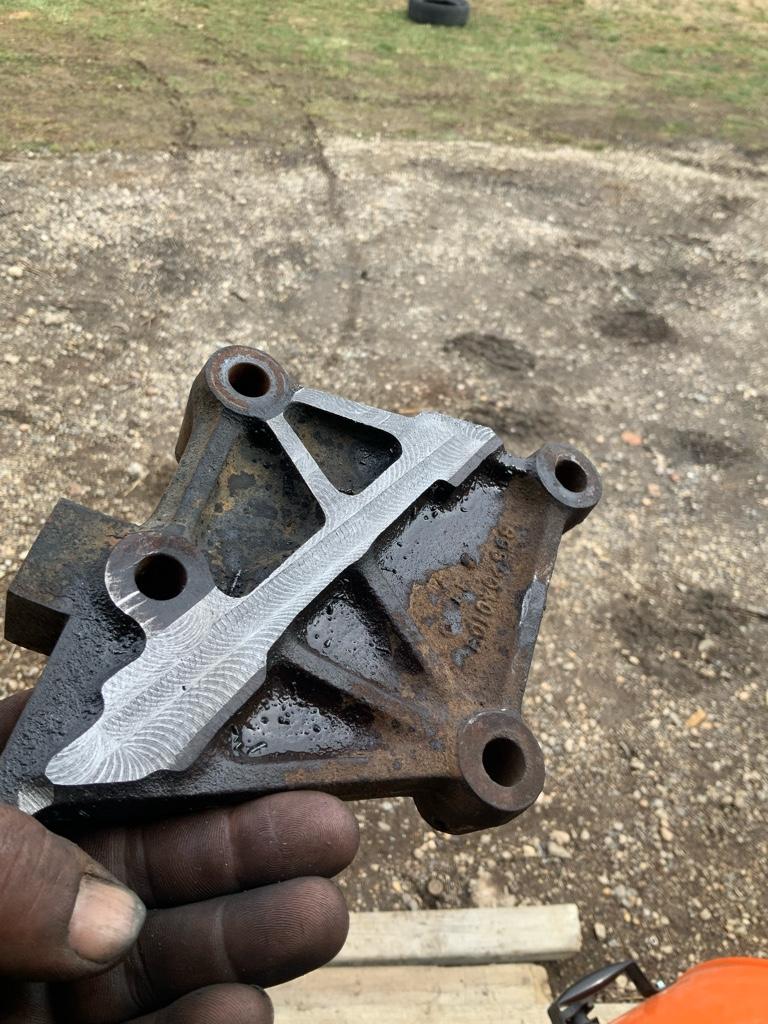

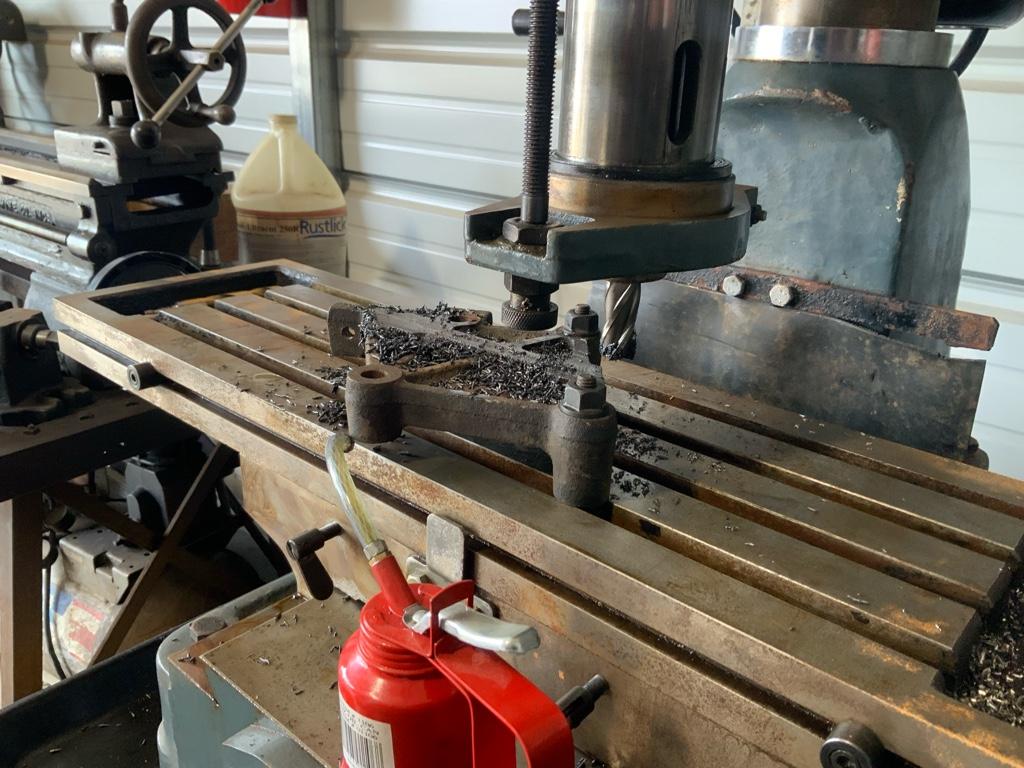

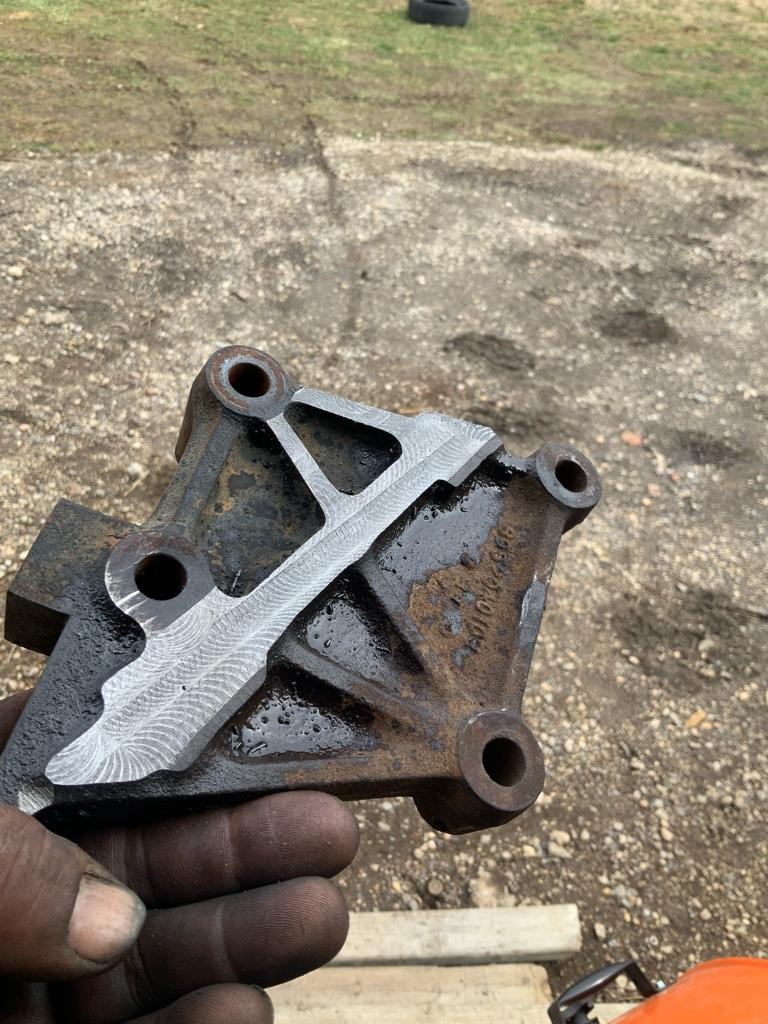

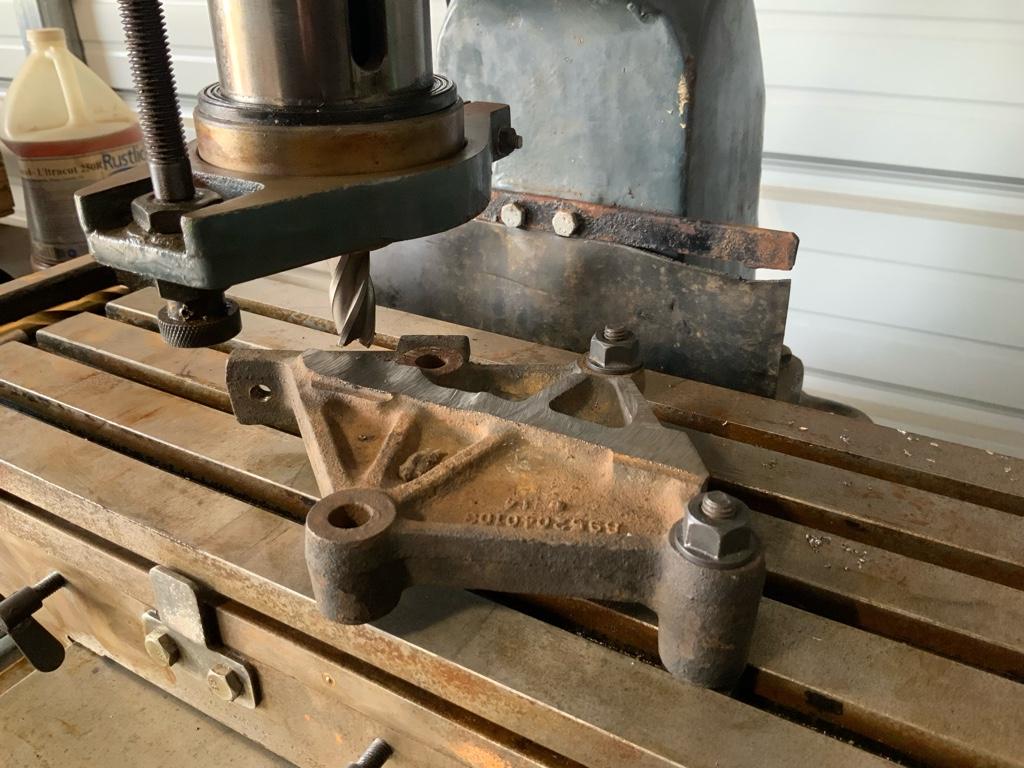

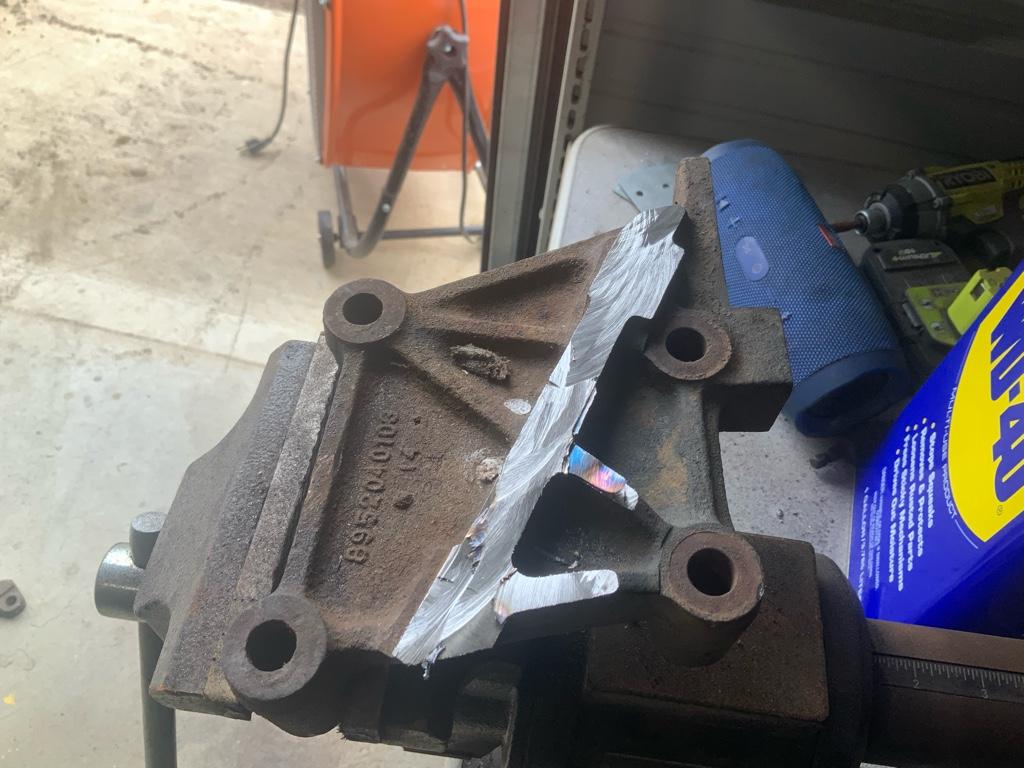

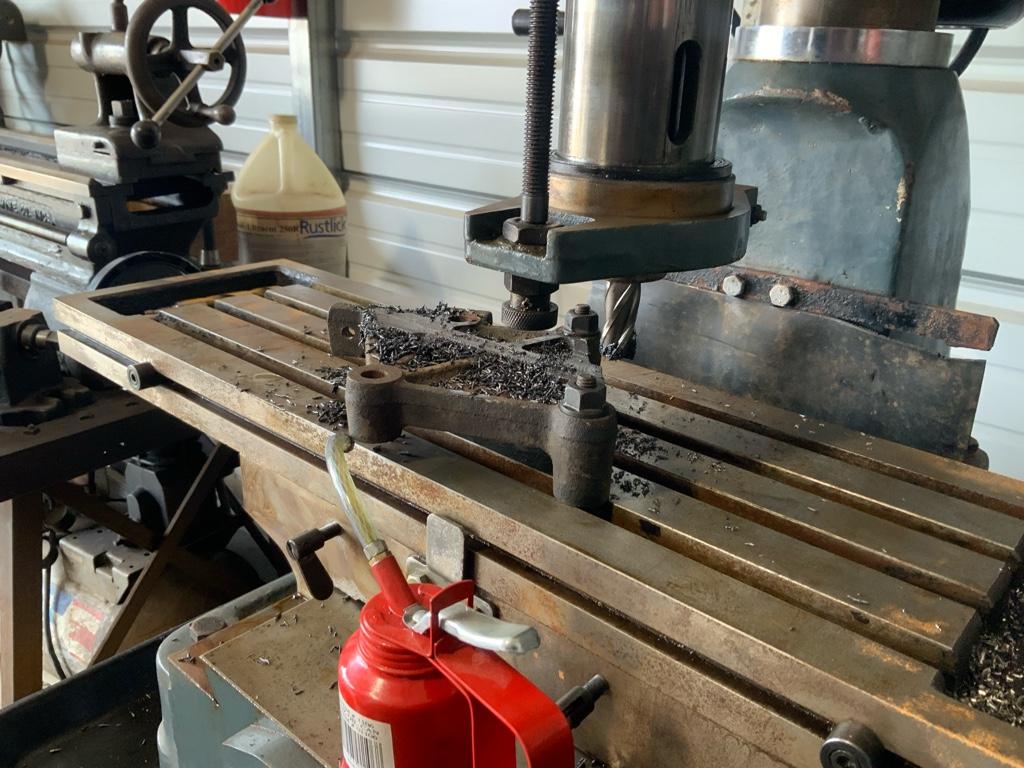

I stated buy shaving down the wrangler spacer to have a flat plane to work with. Im Going to attempt to make a bracket combining the wrangler spacer with a bracket that attaches to the factory roxor mounting points.

Sent from my iPad using Tapatalk



[Roxasuras]

Nice clean work



[Max A.]

2 very different box’s

Sent from my iPhone using Tapatalk



[txroadkill]

Gonna offer a kit?



[Kake America]

I had this wrangler spacer in my scrap metal bin. I pulled it out just in case I would ever need it. Glad I did. Left is wrangler. Right is roxor. Not a single detention is similar.

View attachment 10456


The box also is quite a bit longer then the stock roxor box. I’ll try to get comparison photos tomorrow.


I stated buy shaving down the wrangler spacer to have a flat plane to work with. I. Going to attempt to make a bracket combining the wrangler spacer with a bracket that attaches to the factory roxor mounting points.

View attachment 10457
View attachment 10458
View attachment 10459
View attachment 10460


Sent from my iPad using Tapatalk

You have the best toys!



[Spanky]

Twin hydraulic hand brakes for dragging wheels around turn to reduce turning radius.


Sent from my iPhone using Tapatalk

I figured those engineers from Ford ste that idea from you and put it on the new Bronco! LMAO



[Max A.]

Ha. No that’s a pretty standard thing to have in a rock crawler. Normally you would have a atlas or some type of rear drive line disconnect to drag both rear wheels and burn turn with fwd only. I haven’t figured that out (yet) with the roxor. So one wheel lock at a time for now after hitting the switch to open the rear locker.


Sent from my iPad using Tapatalk



[Max A.]

Gonna offer a kit?

It’s not looking like I’ll be able to make this a easy swap. If i did, it probably wouldn’t work unless you have my long travel kit. It will occupy the space of the oem shackle hanger.


Sent from my iPad using Tapatalk



[Max A.]

Apparently Im not well versed in the type of witchcraft Mahindra uses to install these damn bushings.

I’m sure my neighbors loved the relentless air chiseling this morning.


Sent from my iPad using Tapatalk
