Climax Offroad Long Travel Suspension Kits

[MaXXis85]

Updated roxor pics



[Roxasuras]

Good looking Rox. What size wheels and tires & lift are on there?



[Max A.]

A recent in house install. Not my style but I dig it!

Sent from my iPhone using Tapatalk



[Colderweather86]

Where at in Florida is it? I'm in Miami for the week.



[Colderweather86]

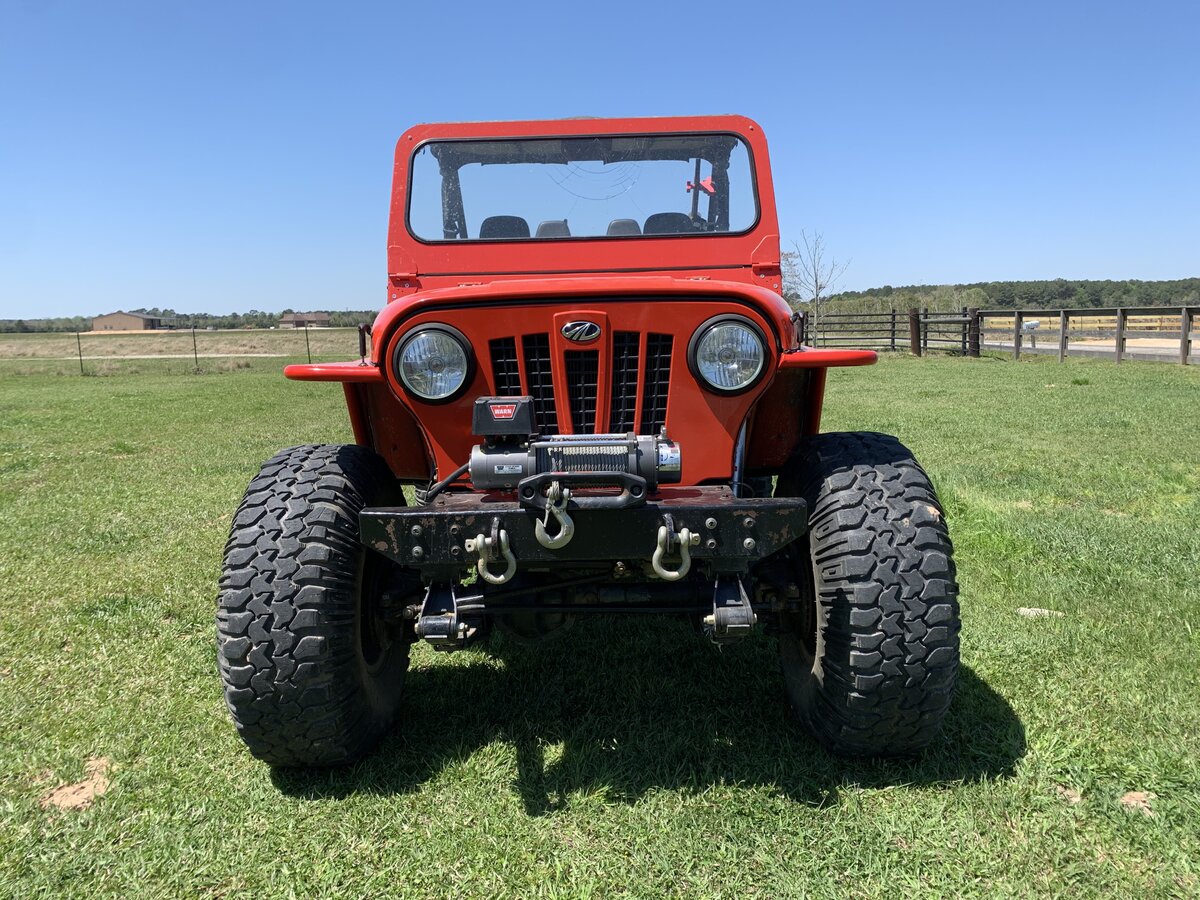

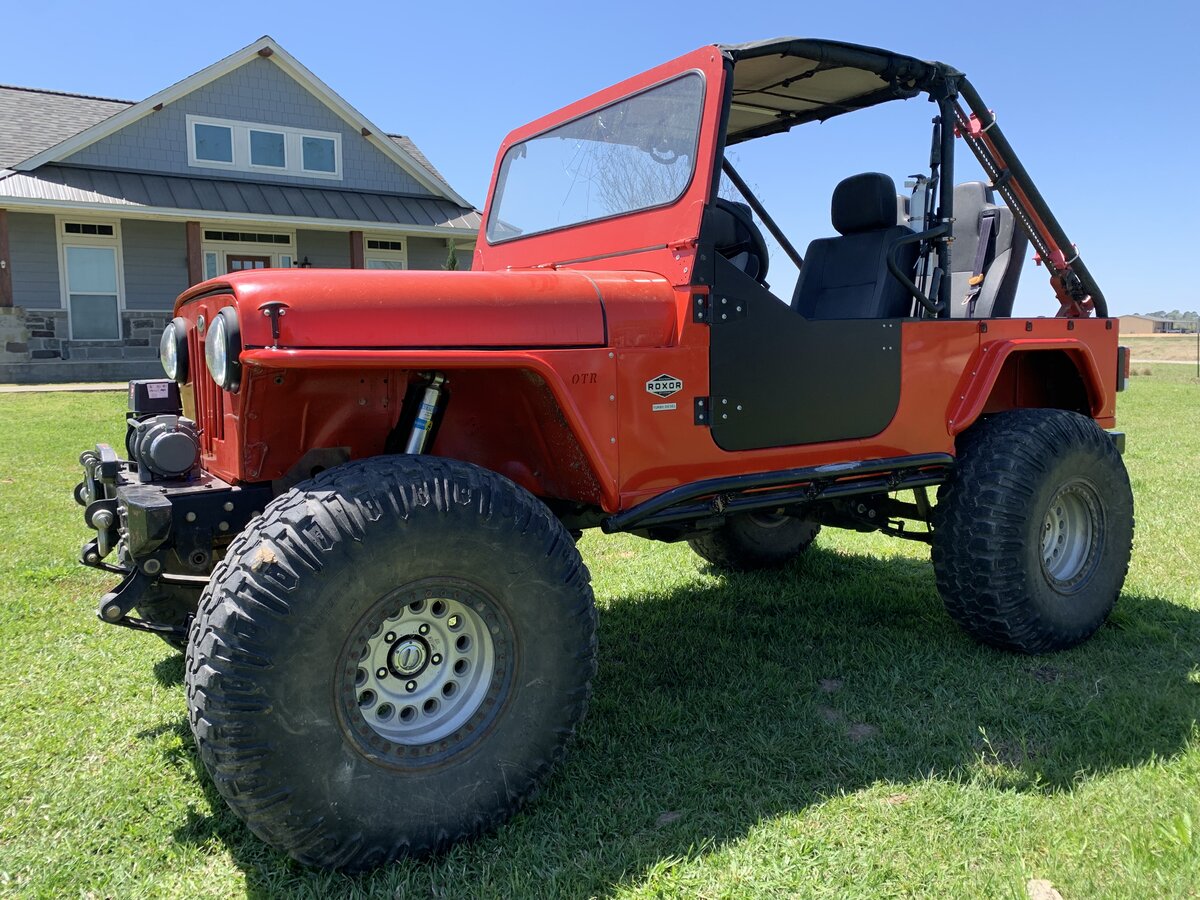

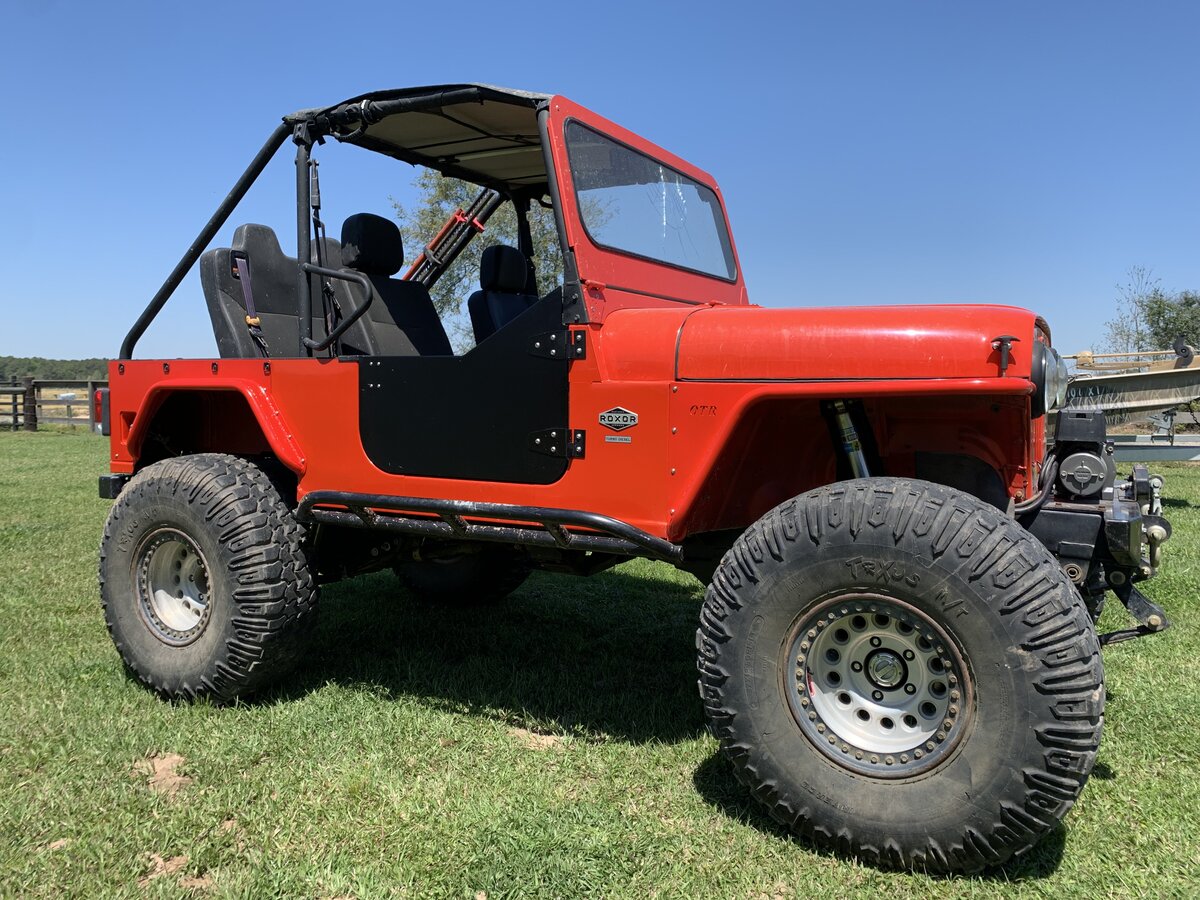

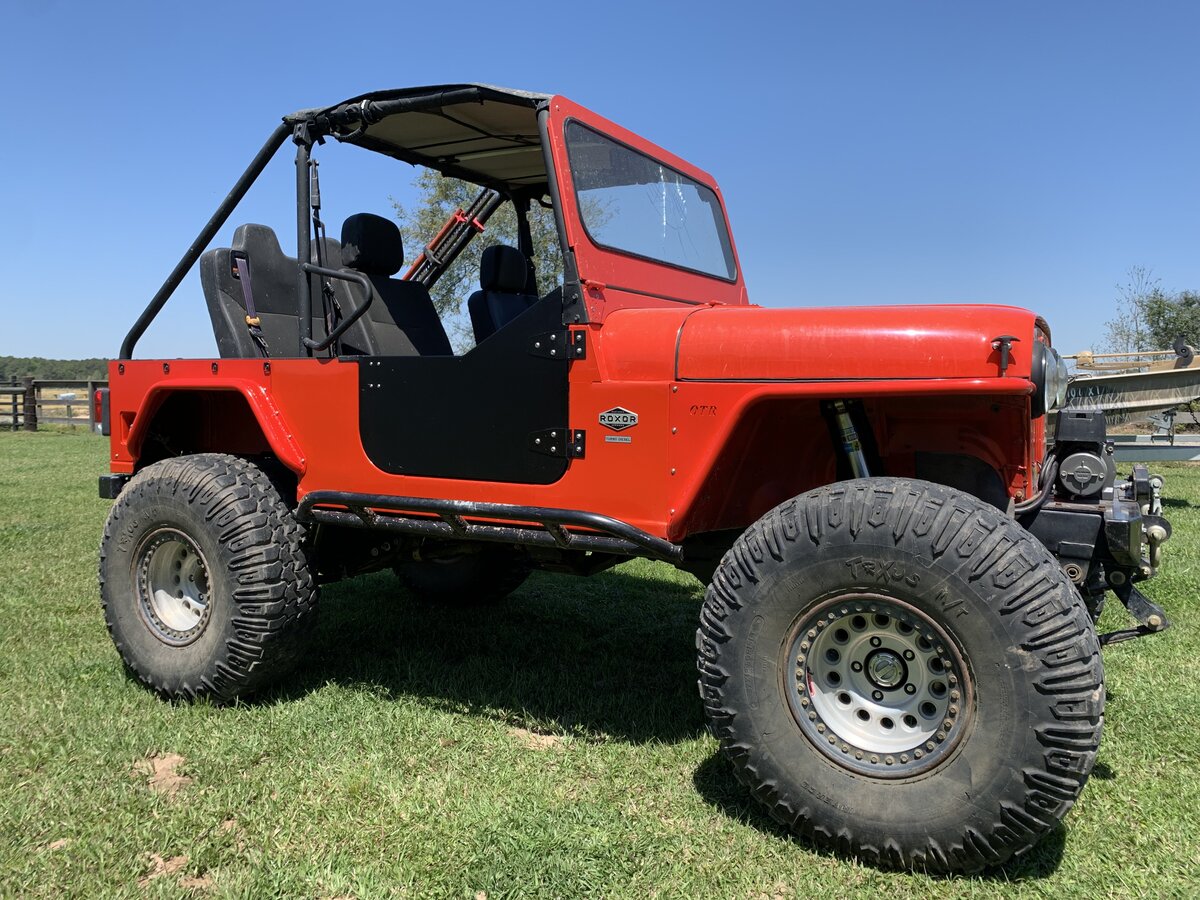

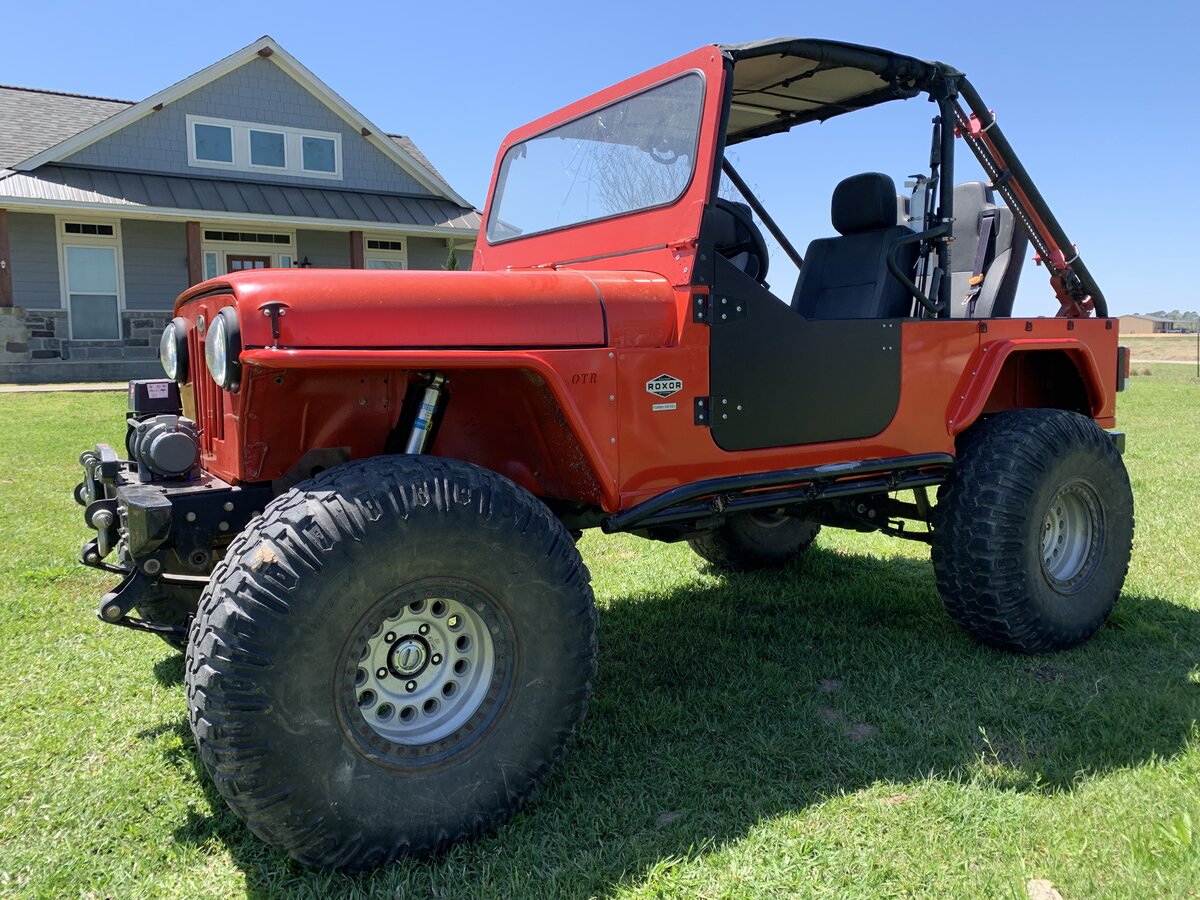

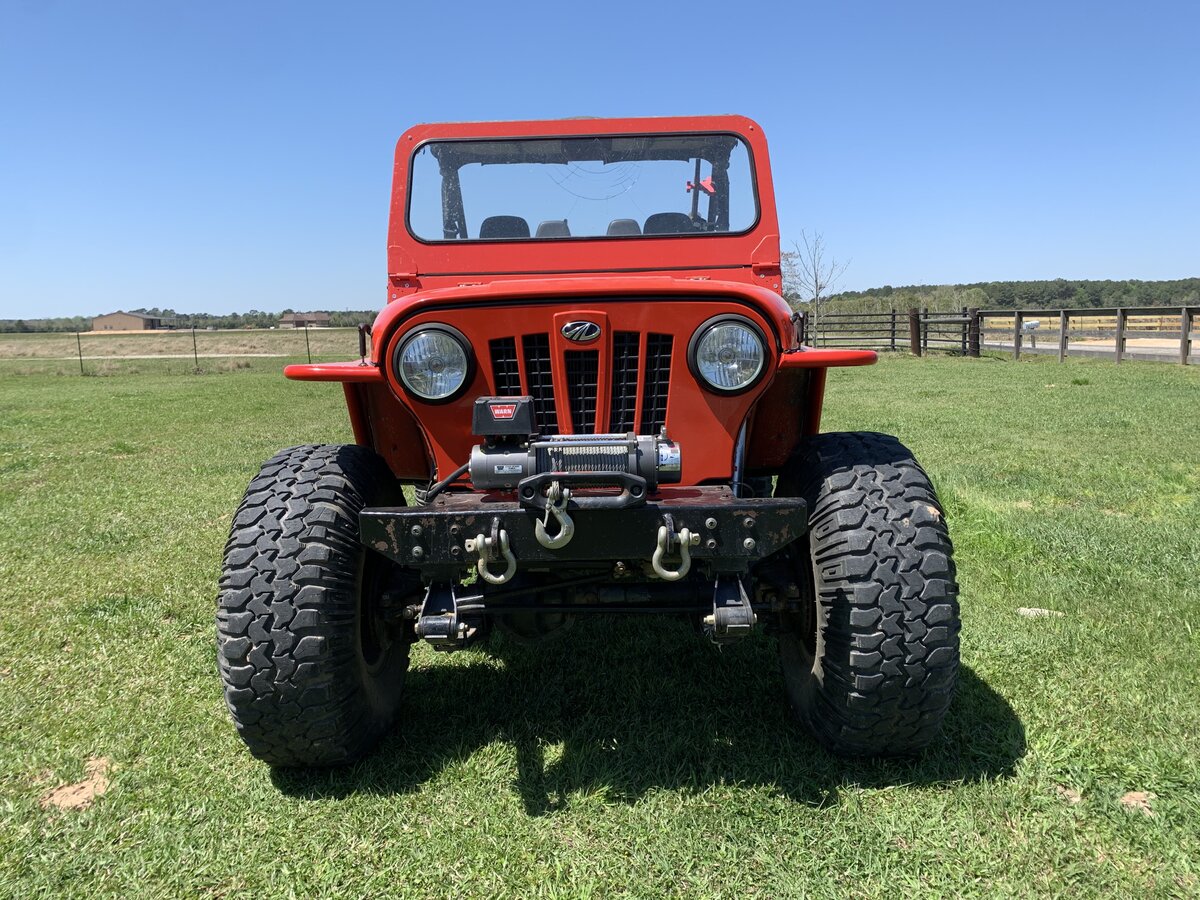

Updated roxor pics

View attachment 10723 View attachment 10724 View attachment 10725 View attachment 10726

Holy wheel spacers. How thick are they?



[MaXXis85]

Good looking Rox. What size wheels and tires & lift are on there?

4” RE springs
Max’s long travel kit
37” TrXus Mt on 15x10 Allied beadlocks



[MaXXis85]

Holy wheel spacers. How thick are they?

2” spacers with 15x10” allied beadlocks



[MaXXis85]

@MaXXis85: Looks nice on 37s!

Did you do anything to the drive shafts for length and to reduce angles?

Stock rear shaft works just fine
I needed a new front driveshaft.



[Max A.]

Where at in Florida is it? I'm in Miami for the week.

Pretty sure this is his shop. Not sure if the roxor is there.

Precision Off Road and Truck Accessories

Precision Off Road and Truck Accessories · 1100 S 14th St, Leesburg, FL 34748

★★★★★ · Truck accessories store

goo.gl

Sent from my iPad using Tapatalk



[Brock Sebelius]

So we got a bit of snow last week haha! But I wanted to post the part numbers of everything that I used for the long travel kit and had a chance to put to the test for about 100 miles.

-re1425 rubicon express 4” springs
-2 sets of Daystar KJ02023BK Greasable Main Eye Bushings this part had me hung up for a few days as I originally ordered the standard bushing kit I believe it was re1492? Those will not work with Max’s kit as the shackle hole size is for a 5/8 bolt if I remember right, so once I ordered these greasable bushings the problem was solved.

-24” brake lines made by OTR, I tried ordering 3an fittings and lines and they were wrong, it’s m10 fittings that I wasn’t able to find so I called On the Rox fab and they were more than happy to source the parts and put some together for not much more than what I had into the parts I had ordered from summit racing.

-Tom Woods front driveshaft 32.5”

- Fox shocks part number 985-24-114 these were recommended by a fox customer service representative over the universal double eyelet shocks for better valving. These shocks ride amazing! The metal bushings on the bottom and bar pins on the top need to be pressed out to fit the shock mounts on the roxor, fox said that is ok to do as long as a little grease is applied to the rubber eyelets before installing.



-As for tires I went with Accelera Badak X-tream through tirestreets.com 35x10.5x16 and have to run a 2” spacer to clear the springs and frame when fully turned.

Im still trying to figure out a steering stabilizer that would either fit the factory location or a double stabilizer that would bolt onto the axle, has anyone found something that works? Oh and by the way if you have a 7’ garage door and plan on this size of lift you will definitely be cussing every time you want to pull it inside and have to let the air out of the rear tires to fit ?



[Max A.]

I Love it man! And great post! Thanks for adding part numbers.


Sent from my iPad using Tapatalk



[Fallacy]

Front suspension successfully installed, everything went very well.
I’ll get to the rear axle early next week, hope to have it completed before the weekend.
I really appreciate everyones input here and especially to Max for the nicely done kit.



[Fallacy]

I need to lengthen my front driveshaft, can anyone give me the proper dimensions for 2.5” springs with Max‘s kit?
The minimum and maximum numbers (compressed and expanded) would be very helpful.



[Colderweather86]

I need to lengthen my front driveshaft, can anyone give me the proper dimensions for 2.5” springs with Max‘s kit?
The minimum and maximum numbers (compressed and expanded) would be very helpful.

Measure it from mounting surface to mounting surface as it sits. You only need 1 measurement.



[Fallacy]

Thanks for the reply, shaft has been cut and lengthened and I’ll install it this evening.



[Fallacy]

Quick little test drive before I tear out the rear axle for 4.56 R&P and the back half of the suspension.
Can‘t really state an opinion on it yet, drives kinda goofy with the Carolina squat.



[Fallacy]

Finally completed, now to put some miles on it. Leaving for New Mexico in 10 days.



[Roxasuras]

I like that cab enclosure



[Max A.]

Looking good!


Sent from my iPad using Tapatalk



[Fallacy]

All completed, very nice suspension action.
Ended up being a huge project, the suspension itself was very straight forward and went easily.
While I had it down I added 4.56 R&P‘s and a pair of Detroit Trutracs, 30 spline axles on both ends, RX41 turbo, EGT gauge, oil pressure, water temp, volt gauge, topped it off with a set of 285/75-16 tires.
Nice power increase, suspension change was well worth the cost and effort and it’s nice to have all the system monitoring with all the gauges. The ride changed enough that the wife is even happy.
