Roxor jeep build

[tcxtreme]

Pics.



[DLR]

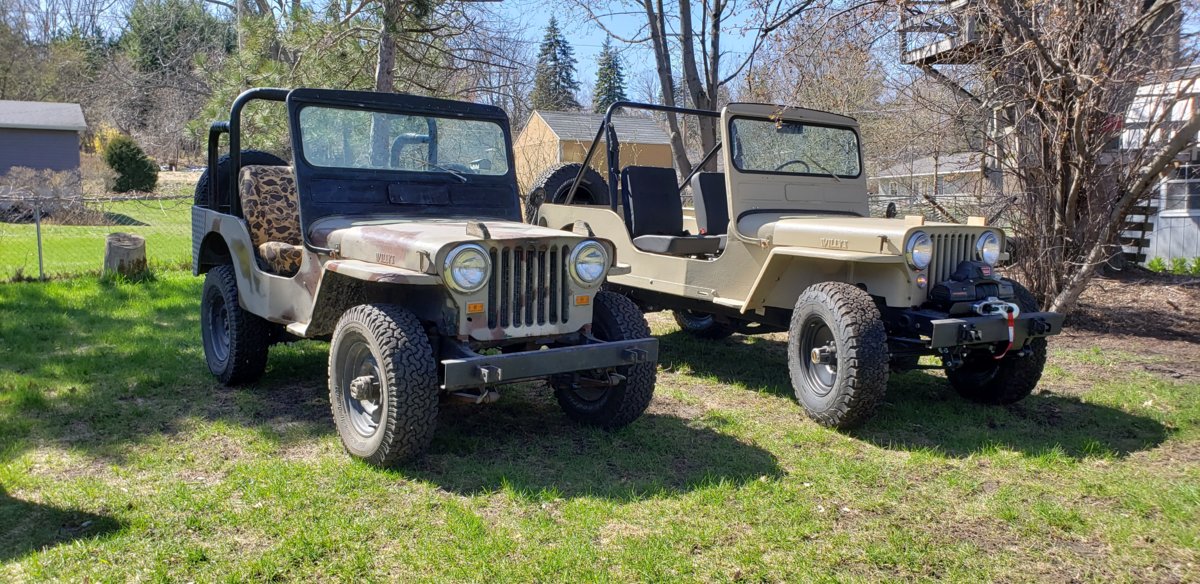

If you hadn't been following the thread, and just saw the first photo above, you would be hard pressed to guess which one was the Roxor and which the original Willys.



[Eyellgeteven]

Wow! Amazing job on the bringing the Willoxor to life...I think you will fool/confuse a lot of people, as well done as it is.



[Durdinfarm]

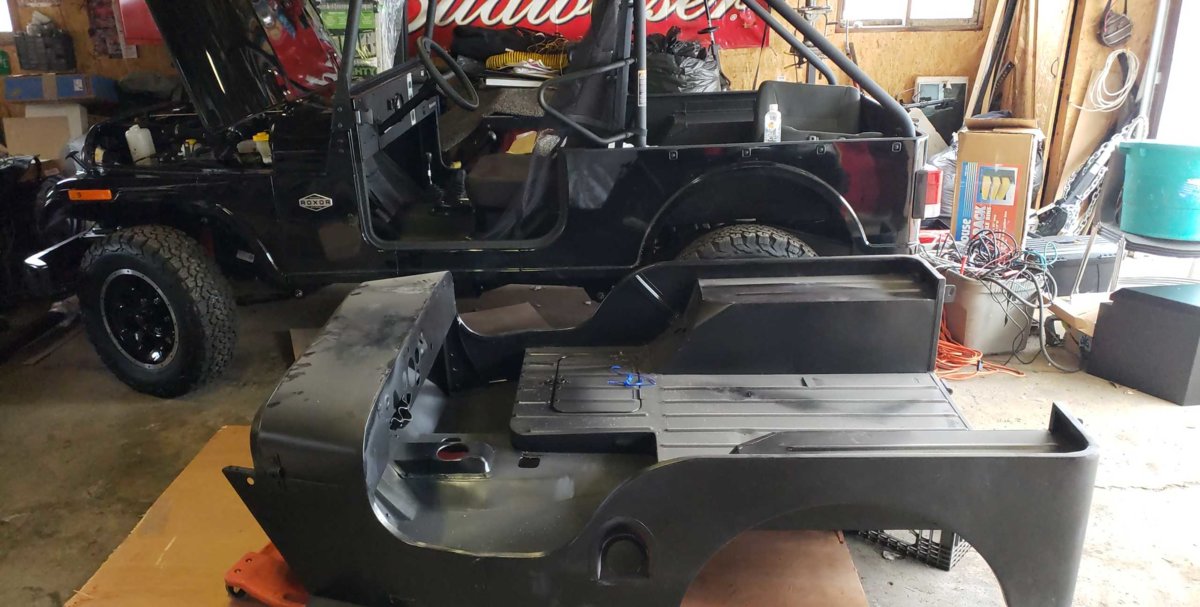

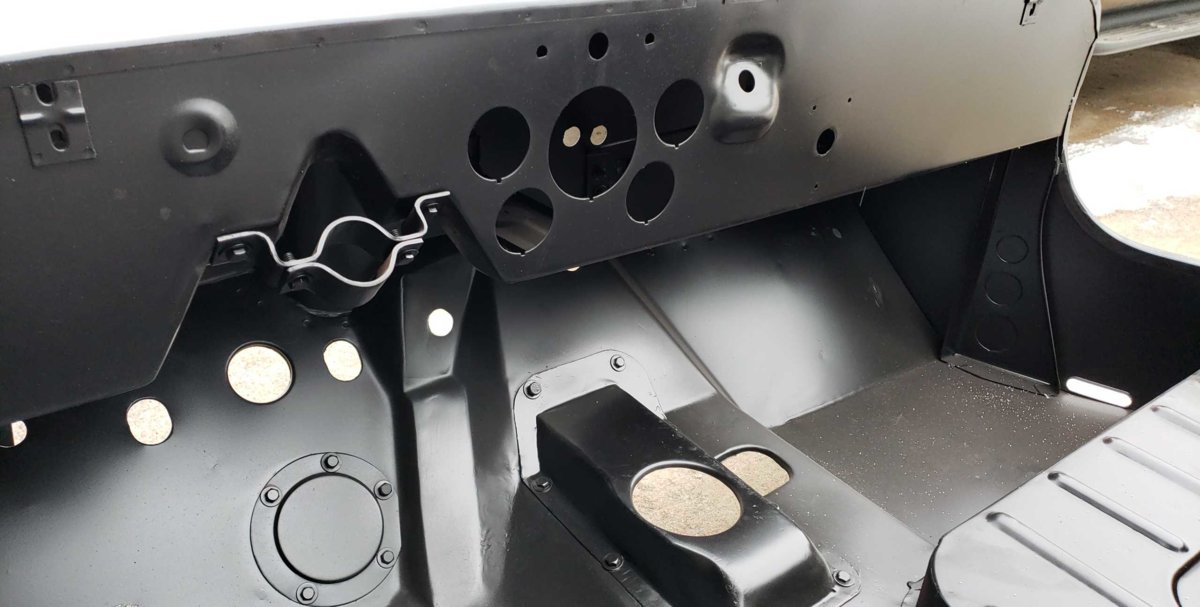

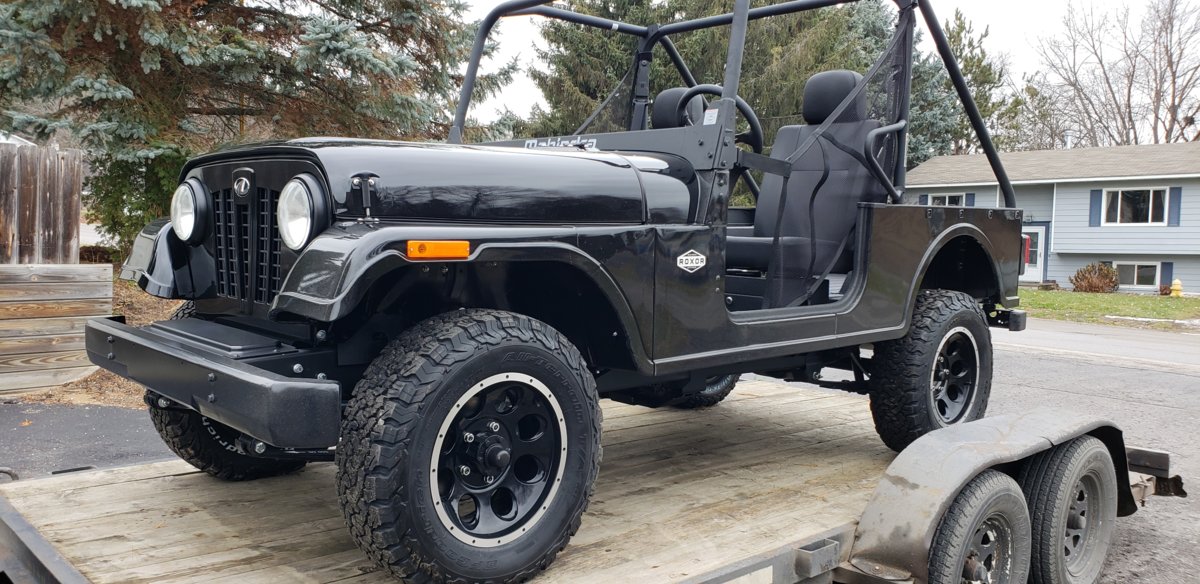

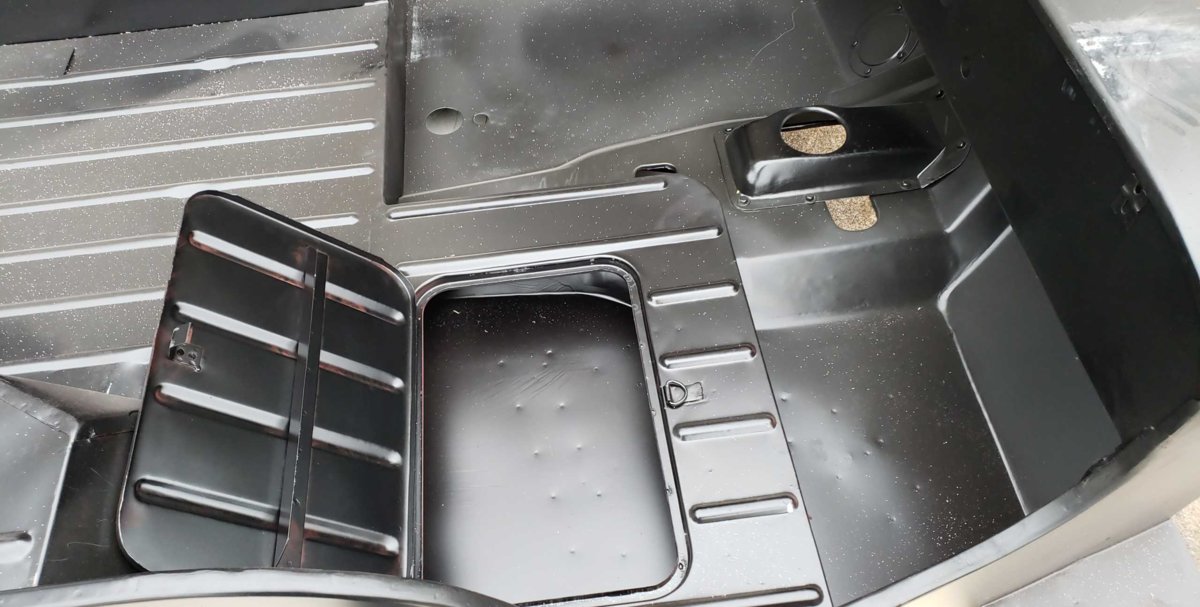

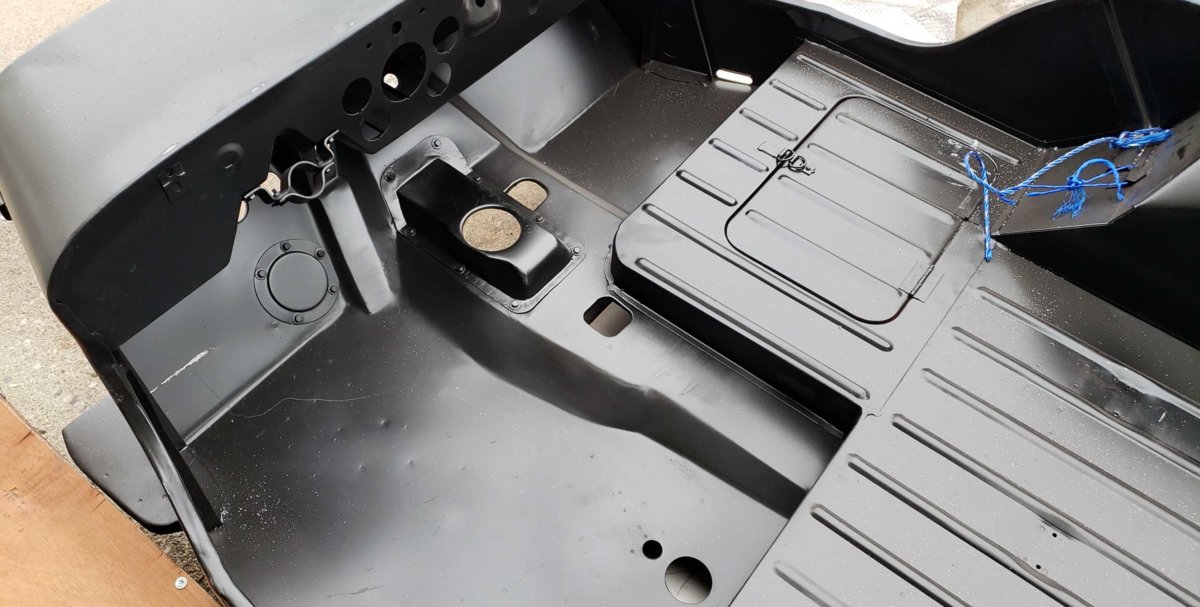

So a customer has a cj3a but wants a diesel version that he can drive every day and go wheeling. So I picked up this base Roxor and ordered a brand new cj3a body. Original style wheels. Egr delete. New taller tires. ECU stage 1 tune with top speed delete. Full blinkers and it will be street legal. Cutting to begin soon. View attachment 2028

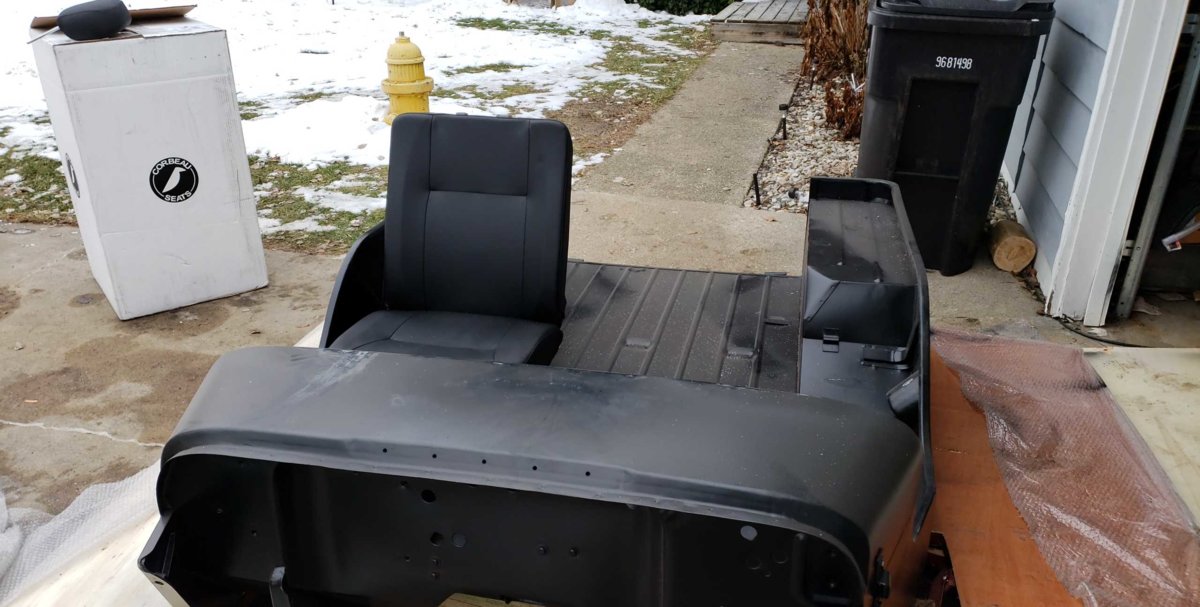

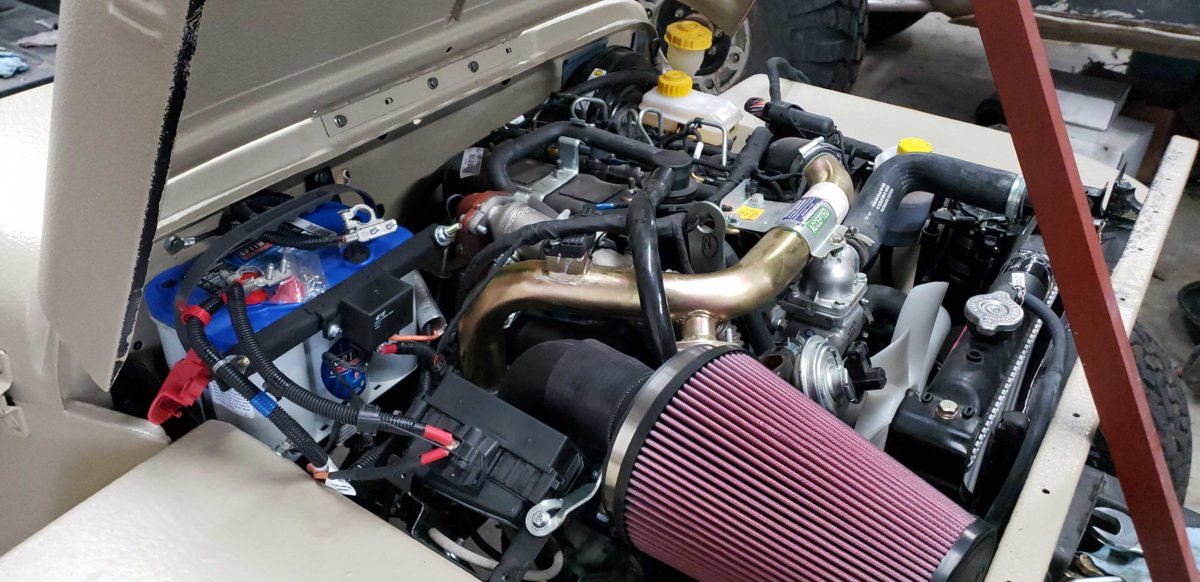

Lots of parts showing up this week. Going to start ripping the body off saturday. New tune and EGR delete are in and functioning. 2.5 straight exhaust is here.

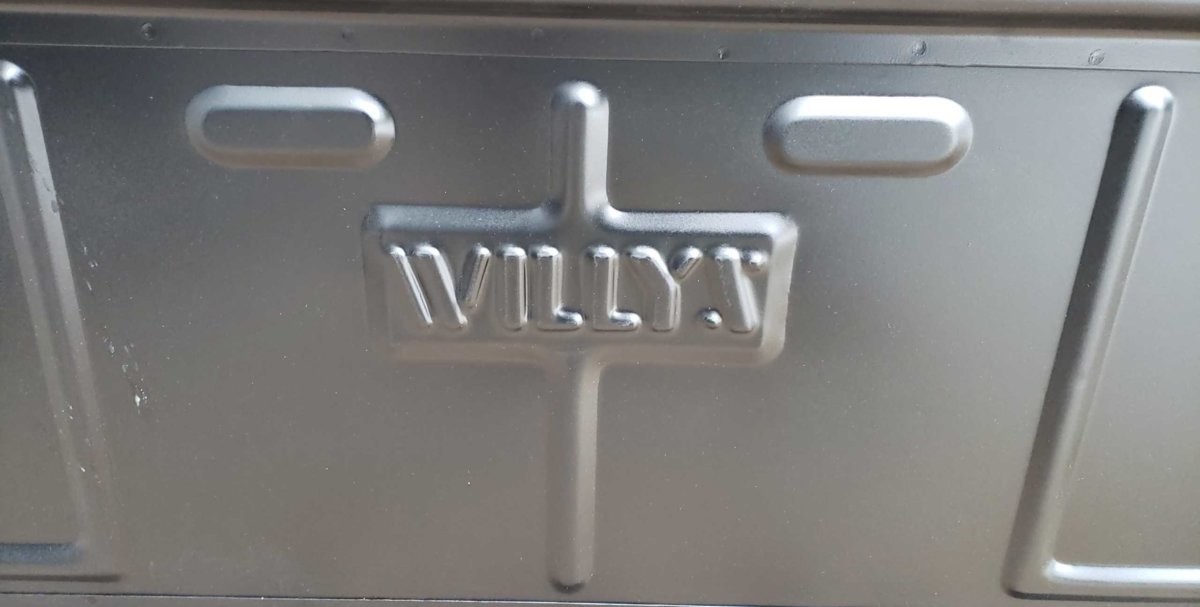

View attachment 2164View attachment 2165View attachment 2166View attachment 2167View attachment 2168View attachment 2169

COOL FANTASTIC WORK YOUR ARE DOING
I SEE YOU LENGTHEN THE TUBS ON THE WILLY'S JUST WONDERING WHAT IF YOU SHORTEN THE ROXOR FRAME AND REAR DRIVE SHAFT. I DID THAT A FEW YEARS BACK ON A F 450 TO PUT A DULLY BED ON IT 10 YEARS BEFORE FORD DECIDED TO MAKE A F 450 DULLY



[HTW]

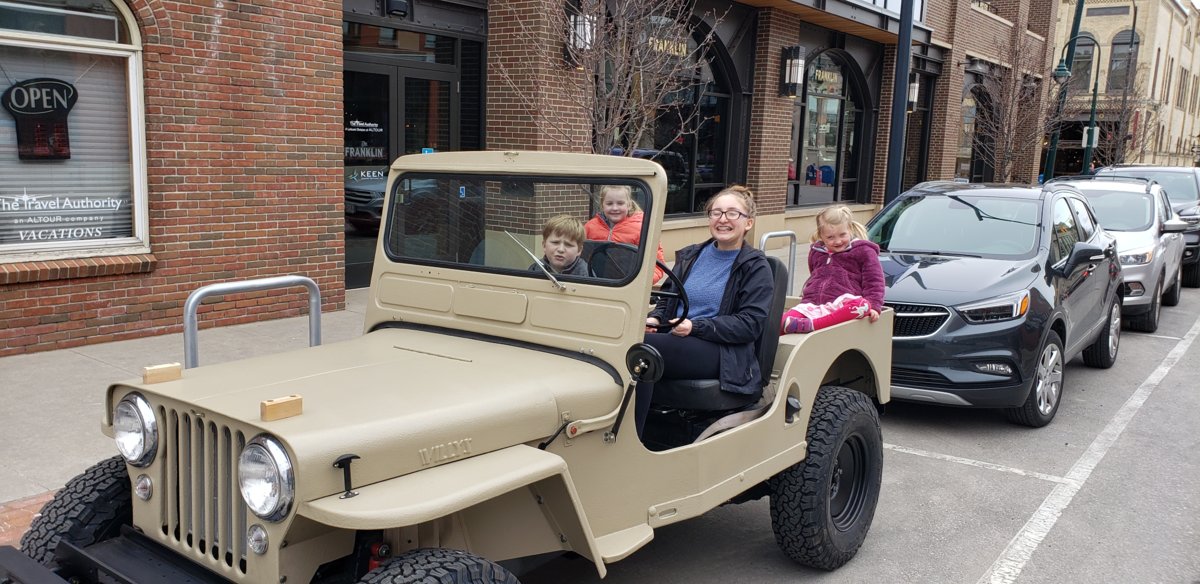

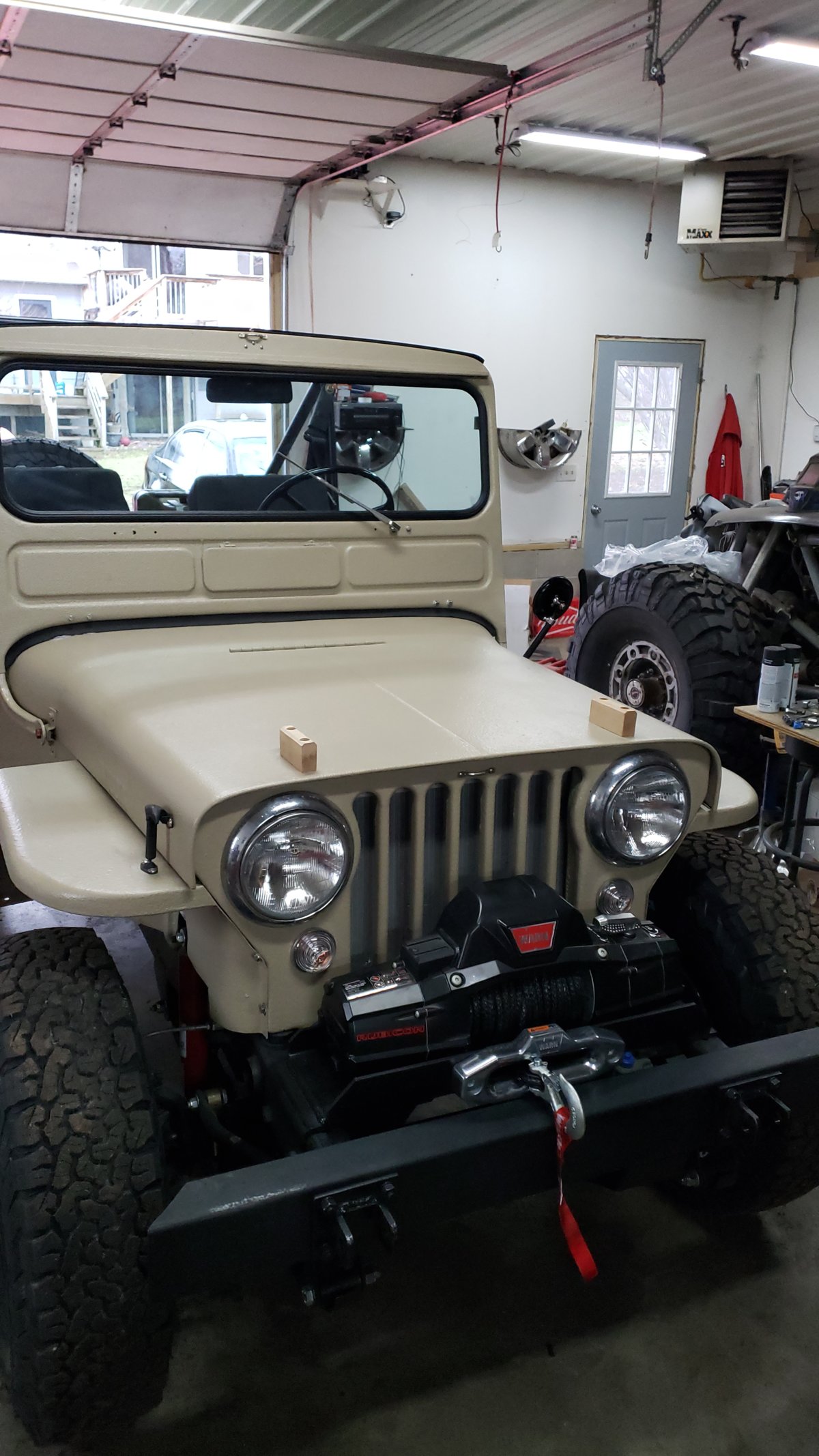

Pics.

View attachment 4587View attachment 4588View attachment 4589View attachment 4590View attachment 4591

Nice work! What do you plan on doing the Roxor body? I have a great frame of a 64 CJ5 that I would slap a Roxor body on. Kind of the reverse of your conversion.



[tcxtreme]

COOL FANTASTIC WORK YOUR ARE DOING
I SEE YOU LENGTHEN THE TUBS ON THE WILLY'S JUST WONDERING WHAT IF YOU SHORTEN THE ROXOR FRAME AND REAR DRIVE SHAFT. I DID THAT A FEW YEARS BACK ON A F 450 TO PUT A DULLY BED ON IT 10 YEARS BEFORE FORD DECIDED TO MAKE A F 450 DULLY

The jeep is all done with a whole summer of driving but we did talk about shortening the frame but we need more room for the 6 foot 3 driver anyways so it was perfect



[tcxtreme]

Nice work! What do you plan on doing the Roxor body? I have a great frame of a 64 CJ5 that I would slap a Roxor body on. Kind of the reverse of your conversion.

its actually going on a cj7



[tcxtreme]

Wow! Amazing job on the bringing the Willoxor to life...I think you will fool/confuse a lot of people, as well done as it is.

Nobody yet has had a clue.



[MaineRox]

Sorry guys. Didn't realize I left you hanging. Its turned out amazing. Bade a little roll br for it. A soft top. Dropped in the chromoly shafts 30 spline front and rear with the full floater rear along with 4.10s and elockers. Thing is really fun to drive. Has like 6000 miles on it now. As always anyone is welcome to message me with questions. I will do my best to help. Now for some pics

Amazing work! I'm envious. Can you come to Maine and work on my 1949 Willys and a Roxor!?! Make them one?



[tcxtreme]

Amazing work! I'm envious. Can you come to Maine and work on my 1949 Willys and a Roxor!?! Make them one?

I'm off all winter



[MaineRox]

I'm off all winter

Can I afford you?



[pejo0501]

Can I afford you?

?



[JoeMc]

That's turned really nice ! ?



[Tokarev]

its actually going on a cj7

Pics and/or info on this project, please.

This stuff makes me wonder if we will see stuff like retro aftermarket Land Cruiser or Land Rover body tubs.



[Darstar]

Pics and/or info on this project, please.

This stuff makes me wonder if we will see stuff like retro aftermarket Land Cruiser or Land Rover body tubs.

Already do.



[Tokarev]

Already do.

Cool!



[Indy4570]

it doesn't get much better than that. awesome job on this build!



[Roxasuras]

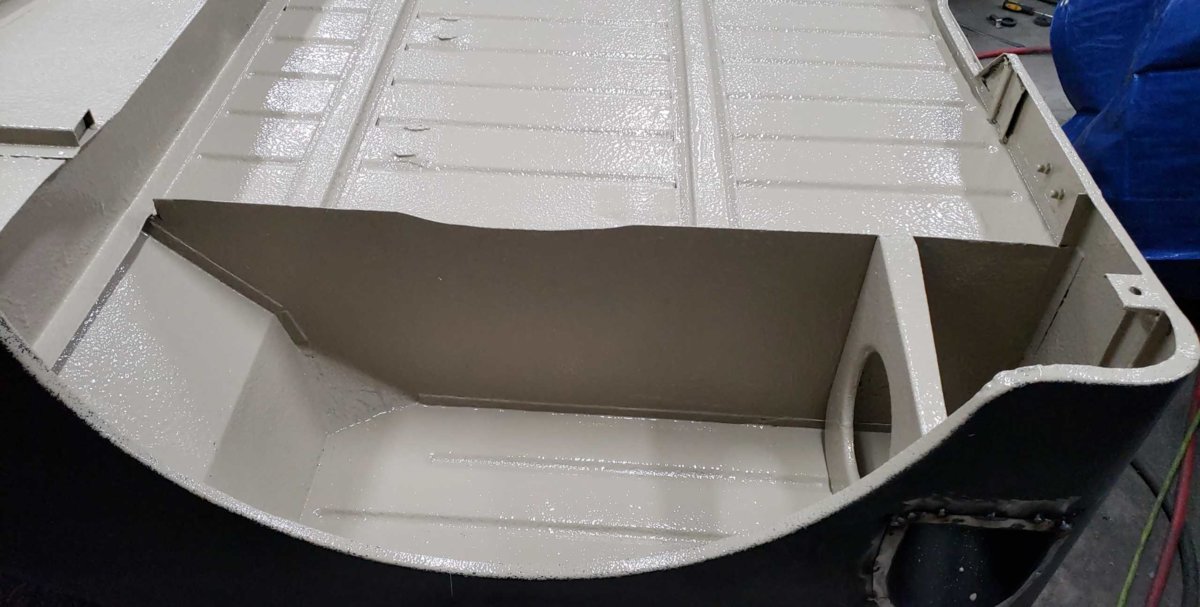

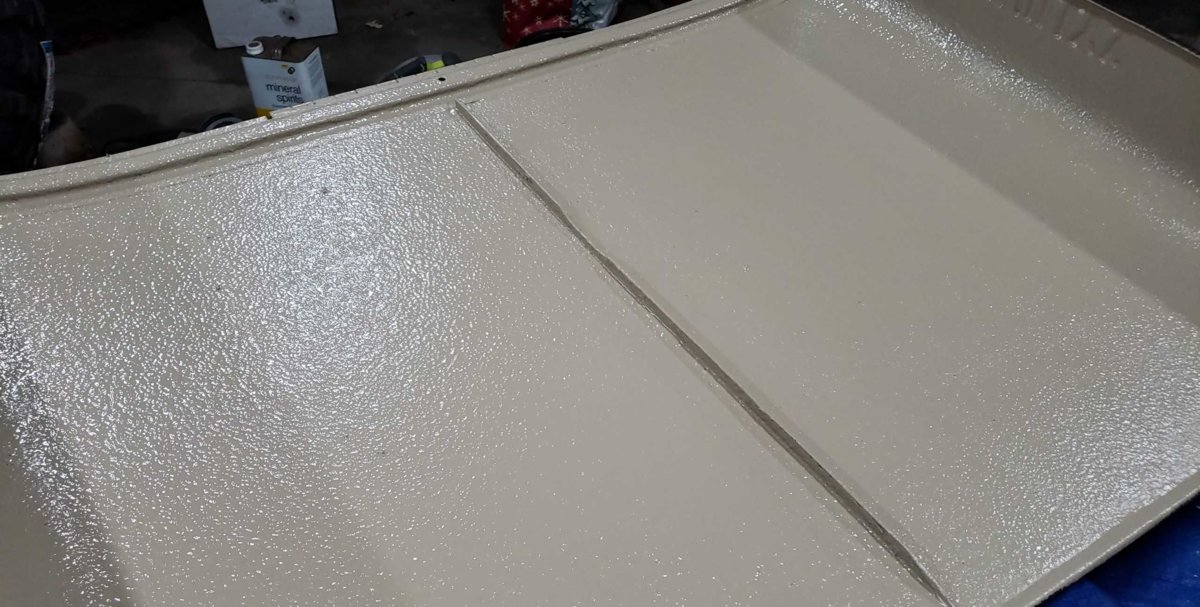

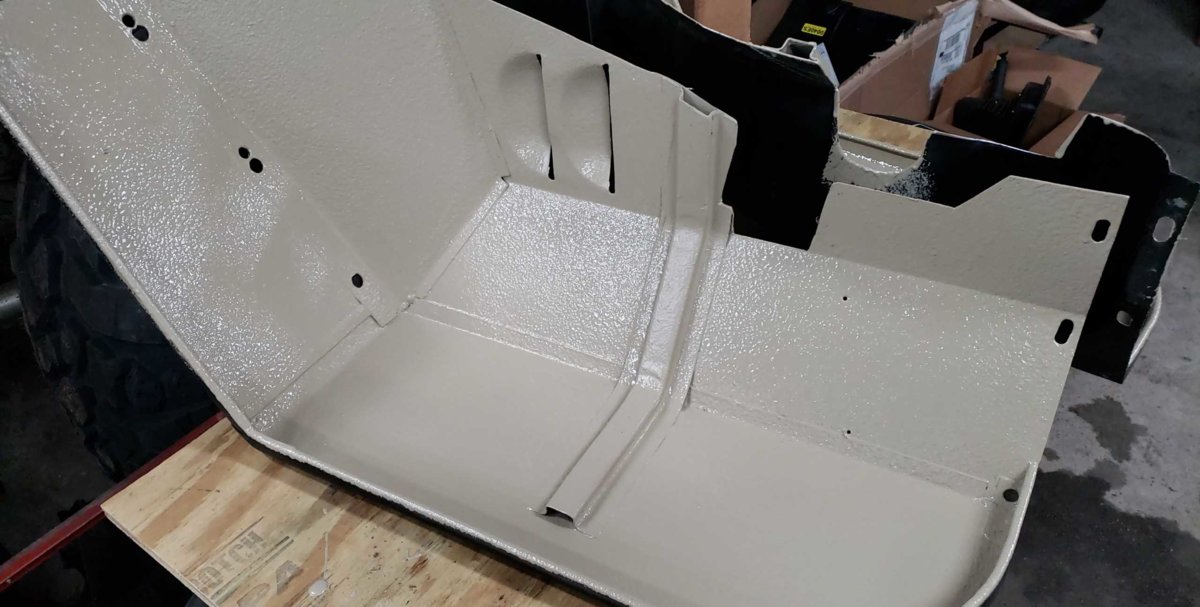

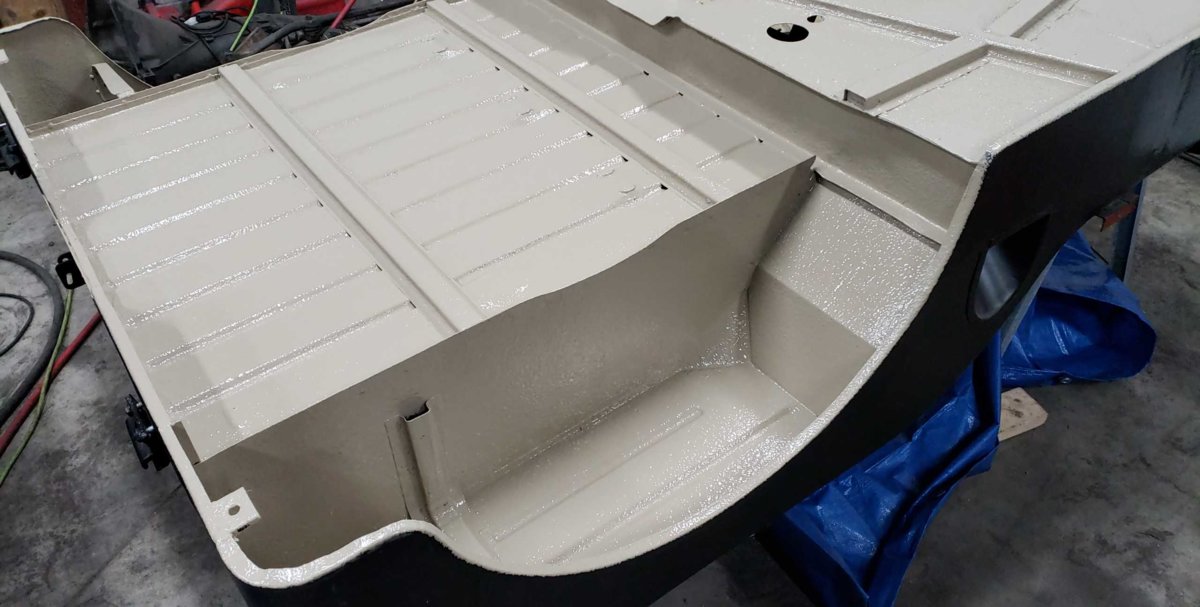

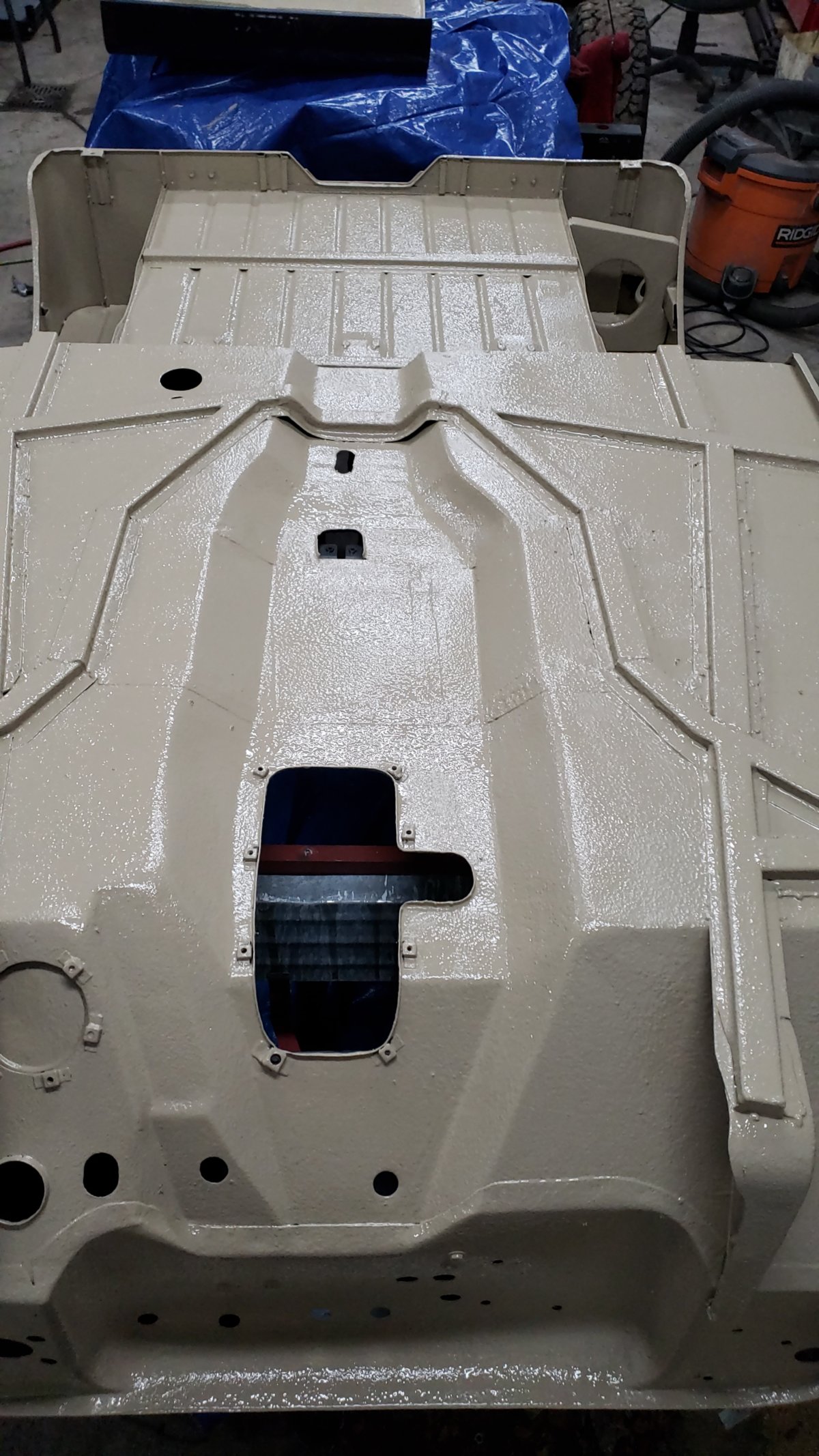

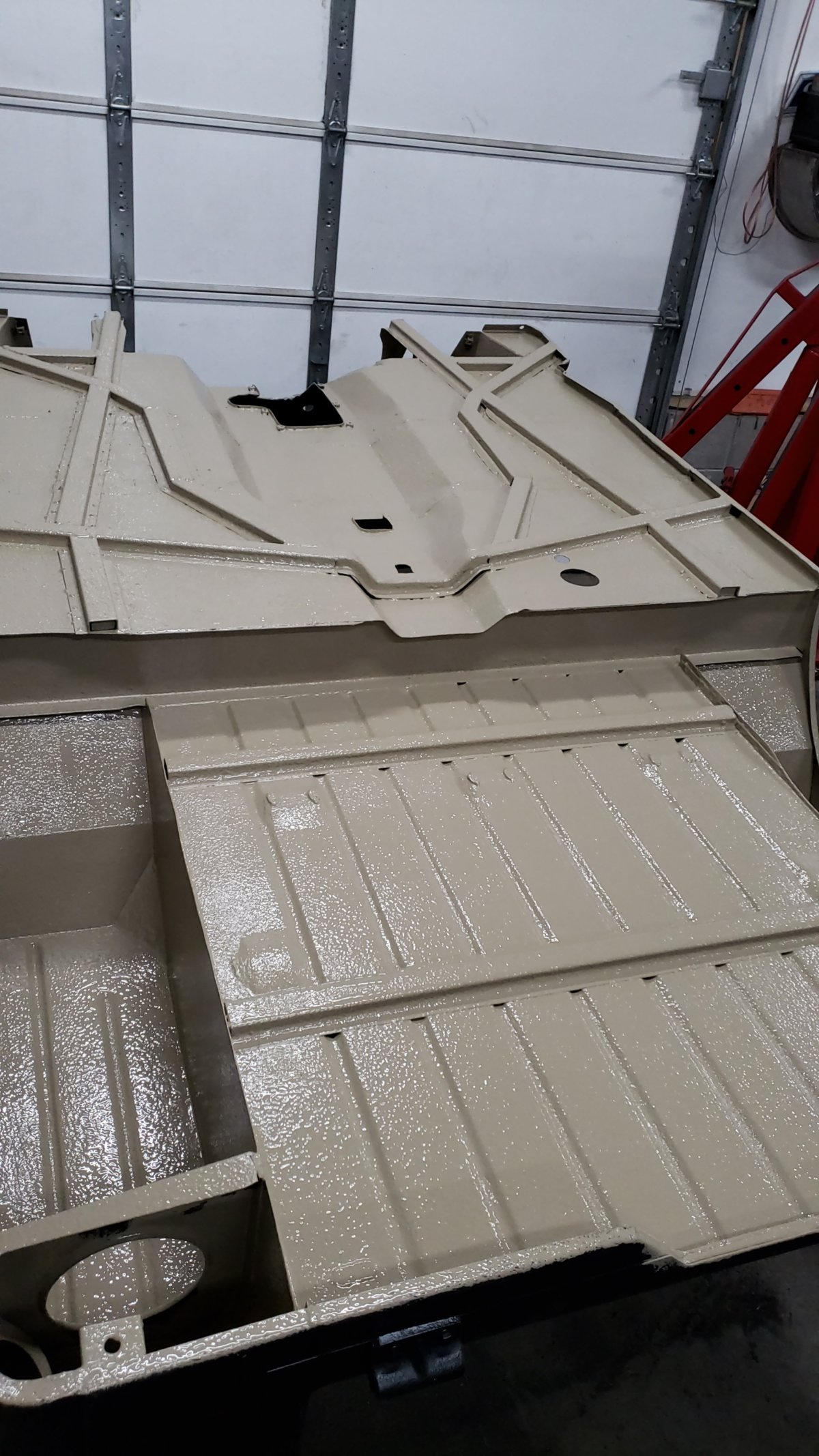

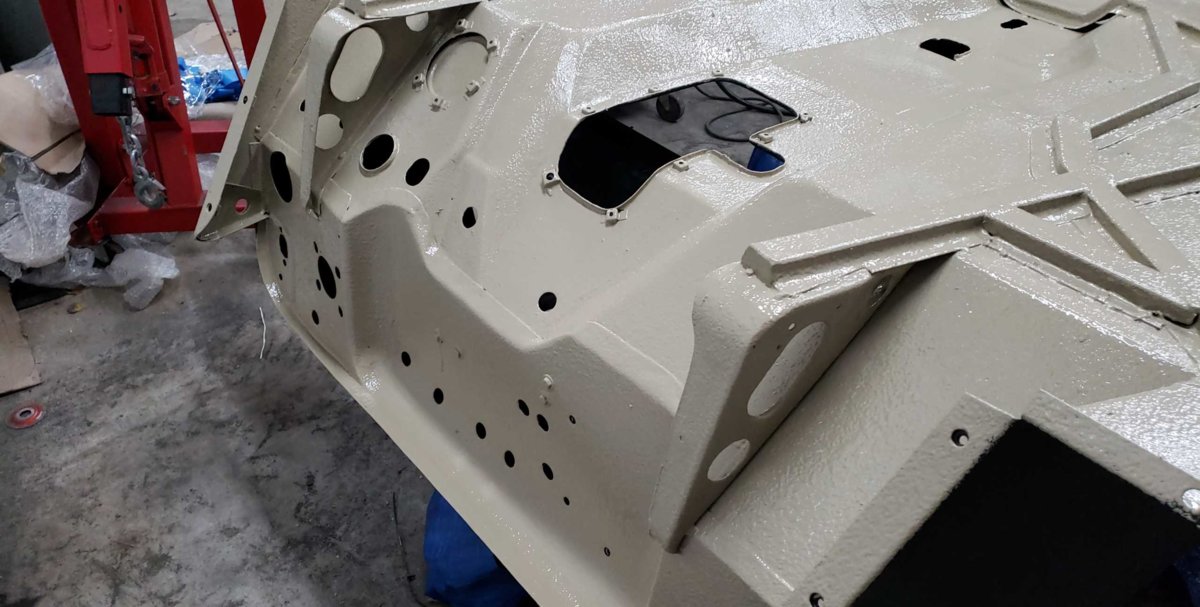

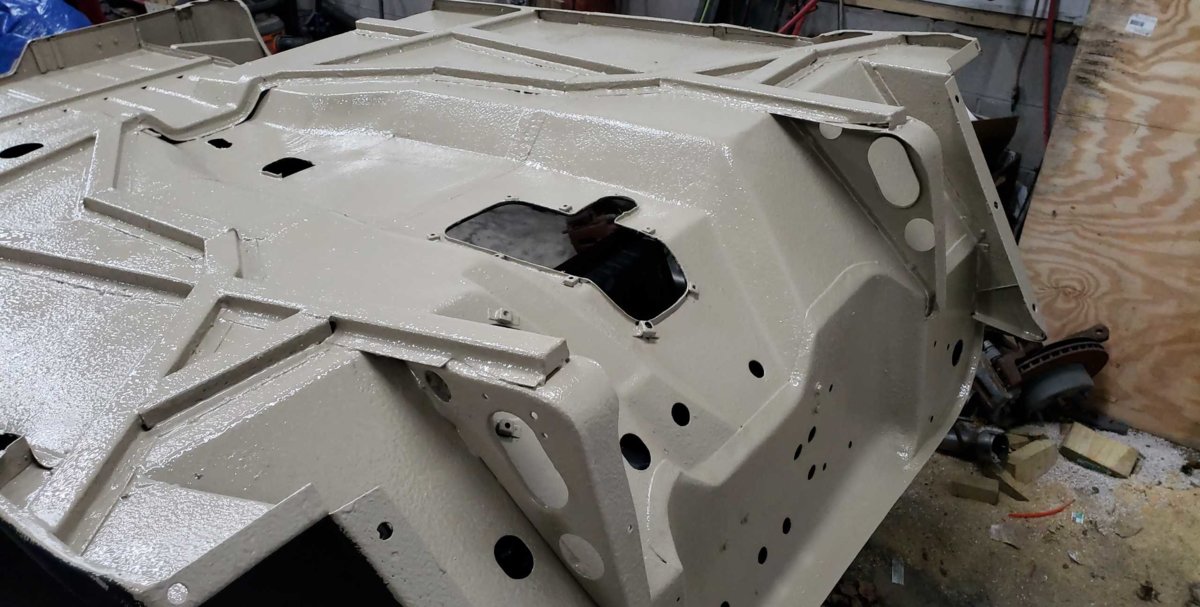

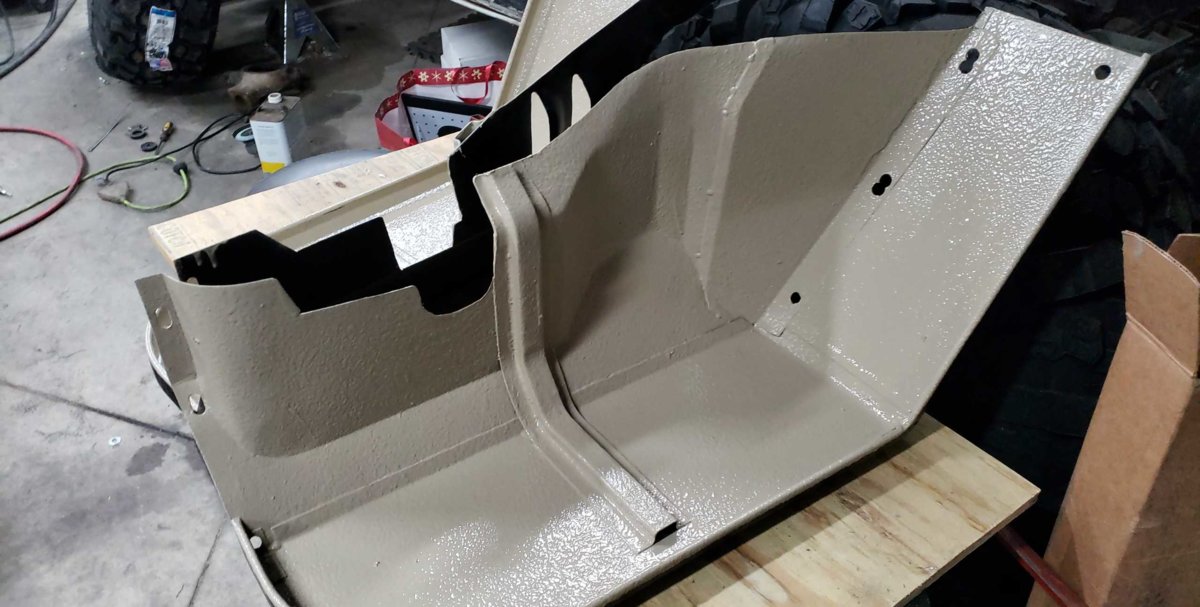

underside coated.

View attachment 2655 View attachment 2656 View attachment 2657 View attachment 2658 View attachment 2659 View attachment 2660 View attachment 2661 View attachment 2662 View attachment 2663

looks good



[Cheech]

Pics.

View attachment 4587 View attachment 4588 View attachment 4589 View attachment 4590 View attachment 4591

Very nice work



[Dan H.]

Funny part is after the EGR delete when you blow a little coal, people will just think it's cause its and old Willy's.
