All the Fuel

txroadkill

Well-known member
Joined
Oct 28, 2018
Messages
1,209
Points
113
Location
Texas
Roxor Ownership
Roxor Owner
Roxor #
2498
Wouldn’t I only be able to add one gauge off of that port?
The pyrometer would be on the exhaust block off and the boost on the intake. Can’t see a reason to have any more than one sensor on each plate.


Lebers driven

Member
Joined
Sep 13, 2022
Messages
62
Points
18
Location
San Antonio Texas
Roxor Ownership
Roxor Owner
Roxor #
7684
Just got off the phone with Wade. I asked about modifying the injectors, and he said that he had concerns about the factory injection pump keeping up or something. Long story short, he said I should be able to get all the power I need with going from his stage one to stage two tune with no concerns. I guess injectors are not the move, but I am going to have him bring my idle rpm down 100 RPM. Pretty excited about that one. My main goal power wise is that I want all four tires to break loose with lockers engaged before the vehicle stalls out, and Wade thinks I should have no problem with that with his stage two tune, and the reduced idle rpm


Haerterich

Active member
Joined
Sep 19, 2018
Messages
130
Points
43
Location
Caledonia, IL, USA
Roxor Ownership
Roxor Owner
Roxor #
738
Just got off the phone with Wade. I asked about modifying the injectors, and he said that he had concerns about the factory injection pump keeping up or something. Long story short, he said I should be able to get all the power I need with going from his stage one to stage two tune with no concerns. I guess injectors are not the move, but I am going to have him bring my idle rpm down 100 RPM. Pretty excited about that one. My main goal power wise is that I want all four tires to break loose with lockers engaged before the vehicle stalls out, and Wade thinks I should have no problem with that with his stage two tune, and the reduced idle rpm
i have seen many post talking about modifying injectors, i don't believe that is nessary. my Rotor makes 175hp and 350 torque, at this power range the fuel pump is maxed out but the injectors are not. this was dyno tuned at Calibrated power solutions when they used my Rotor to delvolep there meth injection kit Also i still have the stock air box and it is not a restriction with this power, so beware with changing to an open filter air cleaner,


Wm435

Active member
Lifetime Member
Joined
Aug 13, 2021
Messages
285
Points
28
Location
Fort Myers, FL, USA
Roxor Ownership
Roxor Owner
Roxor #
0000
i have seen many post talking about modifying injectors, i don't believe that is nessary. my Rotor makes 175hp and 350 torque, at this power range the fuel pump is maxed out but the injectors are not. this was dyno tuned at Calibrated power solutions when they used my Rotor to delvolep there meth injection kit Also i still have the stock air box and it is not a restriction with this power, so beware with changing to an open filter air cleaner,
175 hp? 350 torque!!!

What's your set up to get those sweet numbers?

I'm going to dyno test mine in the future, but I'm thinking I'm around 148hp, going by wades dyno testing on youtube.


Colderweather86

Well-known member
Lifetime Member
Joined
Apr 20, 2020
Messages
723
Points
63
Location
Palmer, AK, USA
Roxor Ownership
Roxor Owner
Roxor #
7262
i have seen many post talking about modifying injectors, i don't believe that is nessary. my Rotor makes 175hp and 350 torque, at this power range the fuel pump is maxed out but the injectors are not. this was dyno tuned at Calibrated power solutions when they used my Rotor to delvolep there meth injection kit Also i still have the stock air box and it is not a restriction with this power, so beware with changing to an open filter air cleaner,
Assuming you still have the Calibrated Power tune, the advertised Torque number is 245, not 350.


Haerterich

Active member
Joined
Sep 19, 2018
Messages
130
Points
43
Location
Caledonia, IL, USA
Roxor Ownership
Roxor Owner
Roxor #
738
175 hp? 350 torque!!!

What's your set up to get those sweet numbers?

I'm going to dyno test mine in the future, but I'm thinking I'm around 148hp, going by wades dyno testing on youtube.

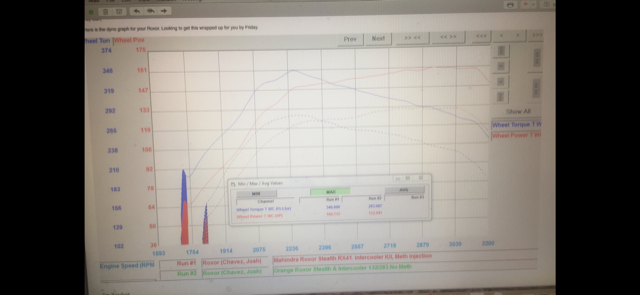

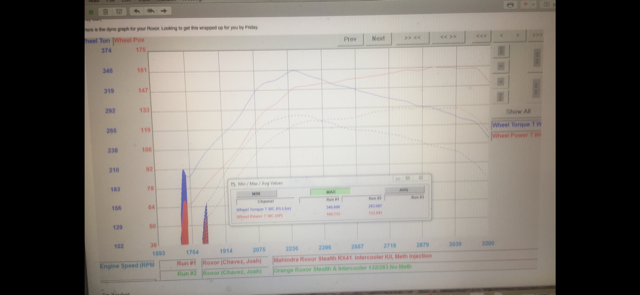

ok my memory not as good as it used to be so i searched my pictures and found the picture i took of the dyno results, 160.7hp and 345.6 torque. The only change after was the electric radiator fan, that gains about 10hp and torque according to what i have read from Diesel Freaks, vivid racing and CPS. I should have look this up before i Posted. Sorry about that.

Now my set up.
Upgraded turbo
Intercooler
3 inch exhaust, side exit in stock location
Meth injection
Clutch upgrade
Electric rad fan
Stock air box
still on stock 3:73 gears
That sums up my performance upgrades.

with the power i have, knowing that the injectors are not maxed out but the fuel pump is, i don't believe modifying the injectors/ installing an open element air filter will do much. However larger injectors will allow more fuel to be injected at the right time and might get some gains, but again with the fuel pump maxed out that very questionable.


just a two notes on the exhaust, after many years of jeeping when you install the exhaust out the back you will get exhaust rolling up into the cab area, this is why i built my own system to side exit.
the other concern i had is the speed sensor, the wires are very close to the exhaust and over time may damage the wires and sensor. so I installed a 90 degree adaptor so the sensor is parallel to the exhaust then put a heat sleeve over the sensor. I used the adaptor for old Corvettes, the RPM gauge was driven off the distributor and has the same threads.





Haerterich

Active member
Joined
Sep 19, 2018
Messages
130
Points
43
Location
Caledonia, IL, USA
Roxor Ownership
Roxor Owner
Roxor #
738
Assuming you still have the Calibrated Power tune, the advertised Torque number is 245, not 350.
i do not have the stage two tune, CPS used my Roxor to delvolpe the meth kit. However thanks for the post it did make me look up the picture i took of the dyno results and i was incorrect. final results are 160.7 hp and 345.6 torque.


Colderweather86

Well-known member
Lifetime Member
Joined
Apr 20, 2020
Messages
723
Points
63
Location
Palmer, AK, USA
Roxor Ownership
Roxor Owner
Roxor #
7262
Gotcha. You're spraying water/methanol as well. That's where the big number is coming from.


Wm435

Active member
Lifetime Member
Joined
Aug 13, 2021
Messages
285
Points
28
Location
Fort Myers, FL, USA
Roxor Ownership
Roxor Owner
Roxor #
0000
ok my memory not as good as it used to be so i searched my pictures and found the picture i took of the dyno results, 160.7hp and 345.6 torque. The only change after was the electric radiator fan, that gains about 10hp and torque according to what i have read from Diesel Freaks, vivid racing and CPS. I should have look this up before i Posted. Sorry about that.

Now my set up.
Upgraded turbo
Intercooler
3 inch exhaust, side exit in stock location
Meth injection
Clutch upgrade
Electric rad fan
Stock air box
still on stock 3:73 gears
That sums up my performance upgrades.

with the power i have, knowing that the injectors are not maxed out but the fuel pump is, i don't believe modifying the injectors/ installing an open element air filter will do much. However larger injectors will allow more fuel to be injected at the right time and might get some gains, but again with the fuel pump maxed out that very questionable.


just a two notes on the exhaust, after many years of jeeping when you install the exhaust out the back you will get exhaust rolling up into the cab area, this is why i built my own system to side exit.
the other concern i had is the speed sensor, the wires are very close to the exhaust and over time may damage the wires and sensor. so I installed a 90 degree adaptor so the sensor is parallel to the exhaust then put a heat sleeve over the sensor. I used the adaptor for old Corvettes, the RPM gauge was driven off the distributor and has the same threads.



View attachment 12018

I wanted to run meth in my engine.

Wade from DF said although meth works fine, the engine must be HOTTER. If not it will oxidation can occur inside the block. Our roxor engine isn't hot enough to evaporate the water entirely


Lebers driven

Member
Joined
Sep 13, 2022
Messages
62
Points
18
Location
San Antonio Texas
Roxor Ownership
Roxor Owner
Roxor #
7684
ok my memory not as good as it used to be so i searched my pictures and found the picture i took of the dyno results, 160.7hp and 345.6 torque. The only change after was the electric radiator fan, that gains about 10hp and torque according to what i have read from Diesel Freaks, vivid racing and CPS. I should have look this up before i Posted. Sorry about that.

Now my set up.
Upgraded turbo
Intercooler
3 inch exhaust, side exit in stock location
Meth injection
Clutch upgrade
Electric rad fan
Stock air box
still on stock 3:73 gears
That sums up my performance upgrades.

with the power i have, knowing that the injectors are not maxed out but the fuel pump is, i don't believe modifying the injectors/ installing an open element air filter will do much. However larger injectors will allow more fuel to be injected at the right time and might get some gains, but again with the fuel pump maxed out that very questionable.


just a two notes on the exhaust, after many years of jeeping when you install the exhaust out the back you will get exhaust rolling up into the cab area, this is why i built my own system to side exit.
the other concern i had is the speed sensor, the wires are very close to the exhaust and over time may damage the wires and sensor. so I installed a 90 degree adaptor so the sensor is parallel to the exhaust then put a heat sleeve over the sensor. I used the adaptor for old Corvettes, the RPM gauge was driven off the distributor and has the same threads.



View attachment 12018
That was really my goal of a slightly larger injector is, as you said to get the fuel in at the right time, and I wouldn’t consider an open element air filter an upgrade anyway but the vacuum indicator on my factory air intake does get sucked down when I really lay into it and let that turbo start to really build boost under load. I’ll probably wait for a snorkel kit in hopes of it having a bigger intake pipe and able to get outside air


Wm435

Active member
Lifetime Member
Joined
Aug 13, 2021
Messages
285
Points
28
Location
Fort Myers, FL, USA
Roxor Ownership
Roxor Owner
Roxor #
0000
Been looking to get a 4 port version. I have talked to a guy in Kentucky that will custom cast a 4 port head if i get him a stock 2 port. Probably get custom push rods made if i go to this extent.
Any updates to this?
