Hard cab and full cj doors

R

rifleman1981

Member
Joined
Nov 15, 2019
Messages
42
Points
18
Location
Seiling Oklahoma
Roxor Ownership
Roxor Owner
I’d say I’ll pass dot inspection and be street legal in a few weeks, used a scrambler half cab, and cut the frame and mounted Jeep cj hard doors, it’s just my opinion, but I think it looks better than anything else on the market at this point.....



...................
R

rifleman1981

Member
Joined
Nov 15, 2019
Messages
42
Points
18
Location
Seiling Oklahoma
Roxor Ownership
Roxor Owner
I also pulled the transfer case, and removed the interlock pill and did a twin stick conversion, so I can use 2 high, 2 low, 4 high and 4 low. The sticks are in a lot better position now.



44Bogger

44Bogger

Member
Joined
Oct 2, 2018
Messages
57
Points
18
Location
DeRidder, LA, USA
Roxor Ownership
Roxor Owner
Looks great all around.

I'll start with the many question you are going to get.

Could you give us a step by step on the twin stick?

I know where the pill is/what is does. Did you completely remove the t case or can you get it out by removing the front bearing assembly and leaving the t case installed?

And I see you used cables to move the rods, interesting.

M

mrdkoch

New member
Joined
Sep 1, 2019
Messages
6
Points
3
Location
Sioux Falls, SD, USA
Roxor Ownership
Roxor Owner
Love the use of the Jeep windshield and hard top. Looking to do that myself, but got some negative feedback on the project - too expensive and too much work. Could you pm me with details of your efforts so far? Thanks.

jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
789
Points
63
Location
WI
Roxor Ownership
Roxor Owner
Herm makes a twin stick setup for the Spicer18. Not sure if his works on the Roxor variant, but worth a call.

Novak also sells a nice double boot. This will keep everything in stock locale and might avoid drilling/cutting

jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
789
Points
63
Location
WI
Roxor Ownership
Roxor Owner
What all did you do to the CJ7 doors and how flush does it fit?

I measured it up right when I got it and no normal doors were a snug fit.

Kake America

Kake America

Member
Lifetime Member
Joined
Dec 27, 2019
Messages
72
Points
18
Location
Kake, AK, USA
Roxor Ownership
Roxor Owner
Roxor #
01762
R

rifleman1981

Member
Joined
Nov 15, 2019
Messages
42
Points
18
Location
Seiling Oklahoma
Roxor Ownership
Roxor Owner

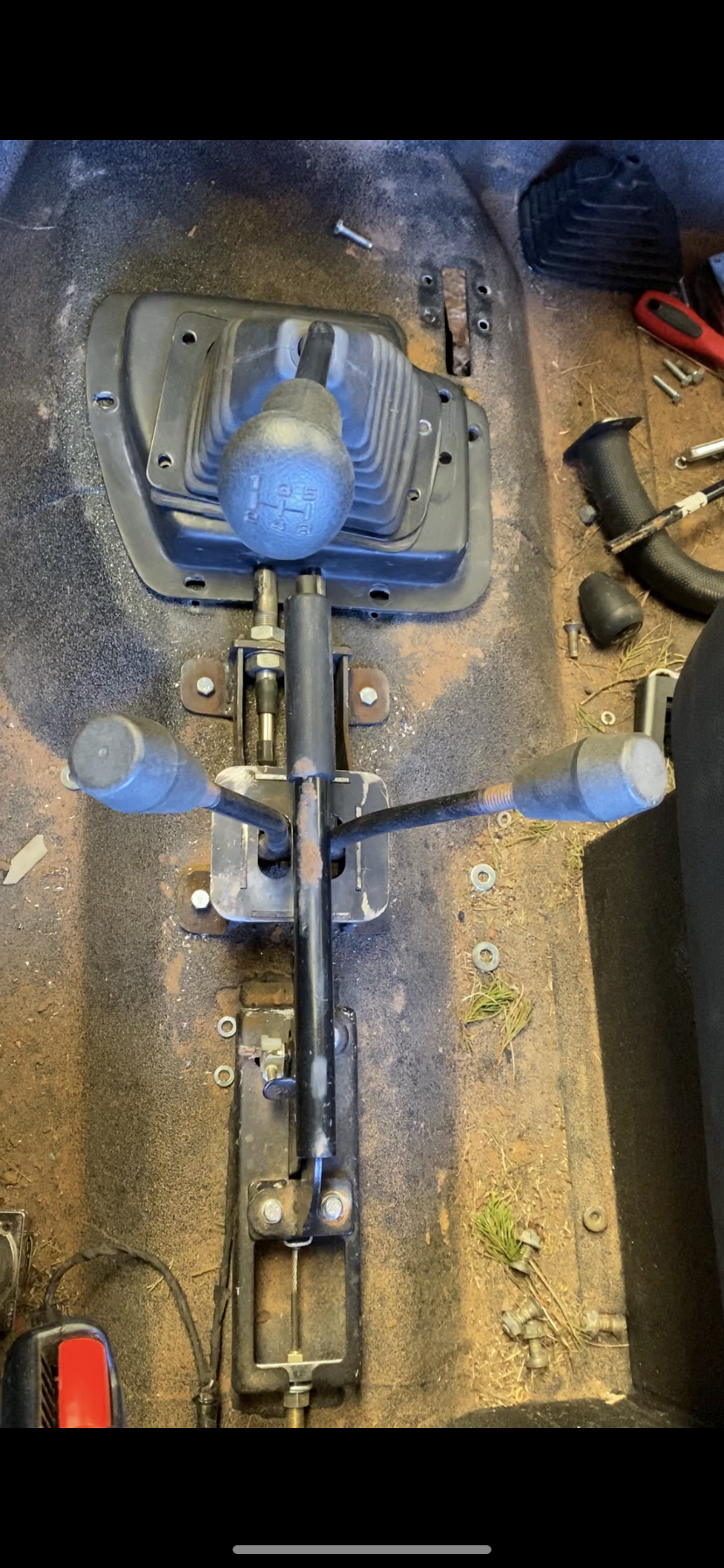

So, the twin stick was on an old Jeep I had traded for, I had to make yokes that fit over the shift rails, and build a bracket that held them out of flat strap and attach it to the threaded part of the transfer case that holds the springs and detent balls for the shift rails. I used a cable shifter because I hated where the factory shift lever was, where it is now is as easy as shifting the transmission. As for the doors, there is nothing easy about them, I had to relocate the hinges, and cut the back of the door frame, they fit flush just like they would on a Jeep but I think I took about 5” of the frame out on the back side. As far as negative feedback, a factory cab that’s equivalent to what I built is $5000, I’ve got less than $1000 worth of parts in what I did, and it looks better to me than what I can buy. You can pickup cj, yj, or tj doors between $300 and $800, I have $600 for the scrambler cab, but I do have a ton of time and labor in it.

R

rifleman1981

Member
Joined
Nov 15, 2019
Messages
42
Points
18
Location
Seiling Oklahoma
Roxor Ownership
Roxor Owner
You can ou
Looks great all around.

I'll start with the many question you are going to get.

Could you give us a step by step on the twin stick?

I know where the pill is/what is does. Did you completely remove the t case or can you get it out by removing the front bearing assembly and leaving the t case installed?

And I see you used cables to move the rods, interesting.
ll the bearing assembly/nose cone off, you need to drop the crossmember and pull the rubber transfer case mount, there’s 5 bolts holding the housing on. I didn’t pull my whole case but you will loose some oil.

  • Like
Reactions: DGP
44Bogger

44Bogger

Member
Joined
Oct 2, 2018
Messages
57
Points
18
Location
DeRidder, LA, USA
Roxor Ownership
Roxor Owner
You can ou

ll the bearing assembly/nose cone off, you need to drop the crossmember and pull the rubber transfer case mount, there’s 5 bolts holding the housing on. I didn’t pull my whole case but you will loose some oil.

Awesome, could you please take a pic of the underside?

R

Randy Burns

Member
Joined
Oct 30, 2018
Messages
45
Points
8
Location
Deadwood, SD, USA
Roxor Ownership
Roxor Owner
Roxor #
12727
This is what the aftermarket guys need to be building, this looks way better than anything out there by far!! Looks great.

M

M151

Member
Lifetime Member
Joined
Mar 17, 2019
Messages
93
Points
18
Location
Northwest USA
Roxor Ownership
Roxor Owner
Roxor #
3535
It looks incredible. So is it finished?
