I'm very happy to know I am of help to you all.

By the way I'm 13.5k miles in and its still running beautifully. That stock clutch is ALOT stronger than most people would believe especially with all my mods

I will NEVER buy another car and make car payments again, this is truly a godsend for me and my family. In the future I will be getting a second roxor and keeping the original one as well

This roxor saved and saves me money big time, and it's a beautiful vehicle, rugged built



[tom]

Thank You Mother Mary and Joesph....



[tecknomage]

Thank you thank you thank you... Now to find or improvise a fan shroud



[Wm435]

Thank You Mother Mary and Joesph....

Thank you thank you thank you... Now to find or improvise a fan shroud

I bought a diesel freak electric fan, and I put it on a toggle switch and called it a day, i leave the fan running all the time when driving. I would do away the sensor, one less thing that could go wrong . I'm sure the environment the roxor is in is taken into consideration as to use the sensor or use a toggle switch

I live in Florida so it's okay to leave the fan on during the entire trip



[tecknomage]

I may go that route, & parallel a switch on the fan. just IN CASE I forget to turn it on the sensor would catch it. replace the sensor with lower value thermocouple so it'd come on sooner as well. Have a Gilomen stage 1 tune, & just got the larger cross over pipe on sale from diesel freak. Figure anything, I can do to decrease engine temp will help. Need to find a better source for filters & crush washers.. any ideas?



[tecknomage]

I REALLY need a set of gauges



[Wm435]

I may go that route, & parallel a switch on the fan. just IN CASE I forget to turn it on the sensor would catch it. replace the sensor with lower value thermocouple so it'd come on sooner as well. Have a Gilomen stage 1 tune, & just got the larger cross over pipe on sale from diesel freak. Figure anything, I can do to decrease engine temp will help. Need to find a better source for filters & crush washers.. any ideas?

I wouldn't have the slightest clue I'd just buy it as I go from Amazon or DF



[GiStore]

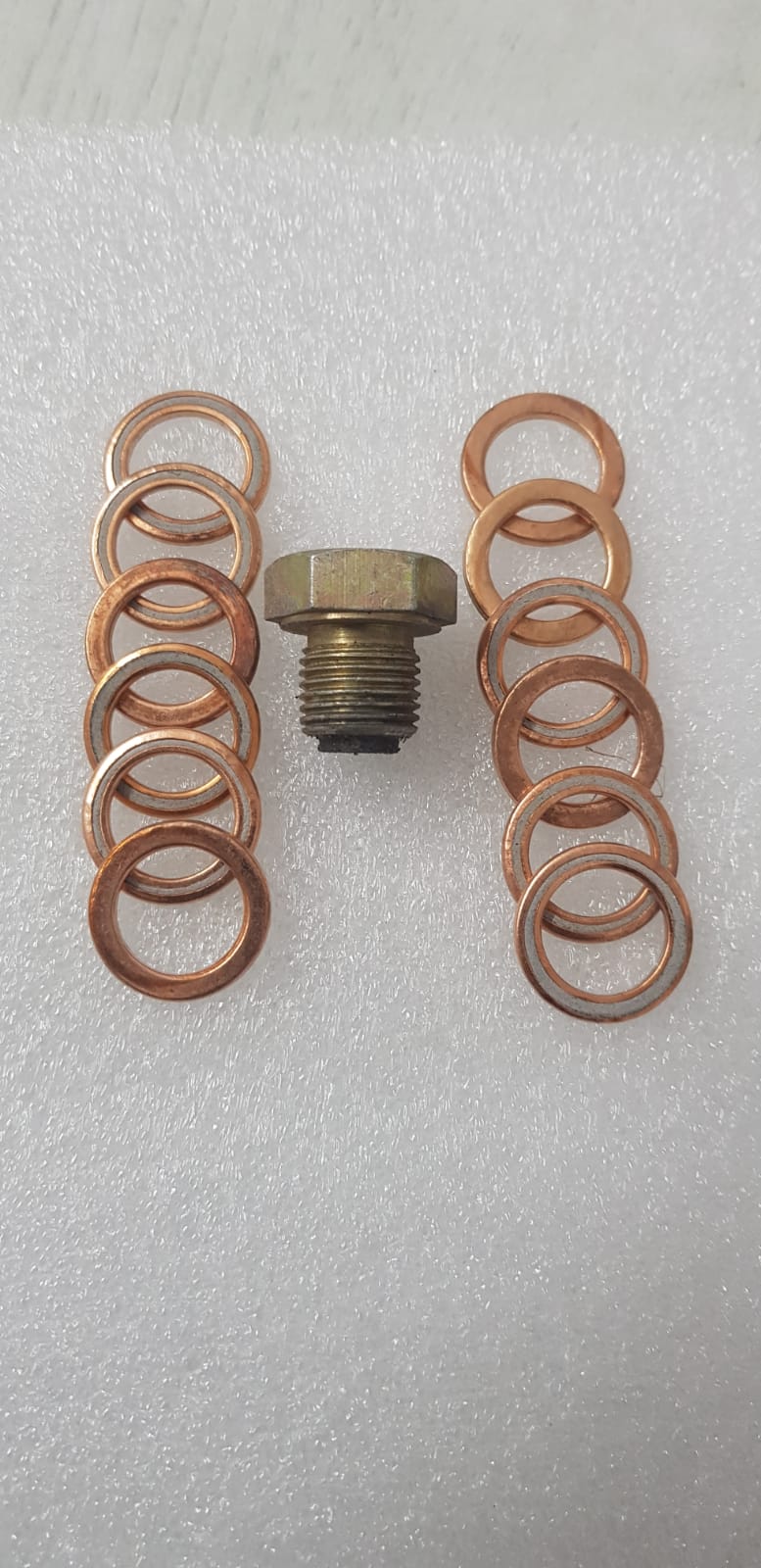

Considering is issue of crush washers being a headache have decided to send two washers free with all filter orders from my store from today.

Security Measure

www.ebay.com

Its also available spirally

New Mahindra Roxor OEM Oil Drain Plug Washer Copper 0311AAC00260N PACK OF 5 | eBay

Find many great new & used options and get the best deals for New Mahindra Roxor OEM Oil Drain Plug Washer Copper 0311AAC00260N PACK OF 5 at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[GiStore]

Considering is issue of crush washers being a headache have decided to send two washers free with all filter orders from my store from today.

Security Measure

www.ebay.com

Its also available spirally

New Mahindra Roxor OEM Oil Drain Plug Washer Copper 0311AAC00260N PACK OF 5 | eBay

Find many great new & used options and get the best deals for New Mahindra Roxor OEM Oil Drain Plug Washer Copper 0311AAC00260N PACK OF 5 at the best online prices at eBay! Free shipping for many products!

www.ebay.com

View attachment 11996

Hope This Resolves the issue for all



[Ridem32]

This post with manuals is still rocking on!


Sent from my iPhone using Tapatalk



[Greg]

I wasn't able to find the repair manual anywhere online. So I emailed the factory and they gave me the link to the e version. I know alot of people in past forums were trying to obtain substitutions due to it not being available for the Roxor. Anyway if you need it here it is

Repair manual

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00544_REPAIR+MANUAL+ROXOR+REV-2.pdf

Diagnostic

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00555_EMS+Diagnostic+Manual_Roxor_Rev2.pdf

Wiring

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00554-Mahindra+Roxor+Wiring+Manual_Rev1.pdf

Thank you for this valuable information.



[MTCowboy]

I wasn't able to find the repair manual anywhere online. So I emailed the factory and they gave me the link to the e version. I know alot of people in past forums were trying to obtain substitutions due to it not being available for the Roxor. Anyway if you need it here it is

Repair manual

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00544_REPAIR+MANUAL+ROXOR+REV-2.pdf

Diagnostic

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00555_EMS+Diagnostic+Manual_Roxor_Rev2.pdf

Wiring

https://s3.us-east-2.amazonaws.com/manaroxitdocuments/ROXOR+Manuals/MAN-00554-Mahindra+Roxor+Wiring+Manual_Rev1.pdf

I just downloaded and cannot thank you enough. These are invaluable for someone who does almost all their own work.



[ranchonodinero]

Anyone have a lead on the newer manuals?



[DDP70]

Anyone have a lead on the newer manuals?

There is a QR code under the hood on my 2022 right above the brake and clutch cylinders on the drivers side fire wall. That is the link to my manual. Check yours as it may be there too.



[ranchonodinero]

There is a QR code under the hood on my 2022 right above the brake and clutch cylinders on the drivers side fire wall. That is the link to my manual. Check yours as it may be there too.

Yep-found and got that. I was looking for the repair and service manuals for the new 2023 and up.



[Zenigata]

Can anybody post a link to the manuals for the newer Roxors? I don't have a Roxor to scan a QR code for and I want a manual to get a better feeling for the vehicle before I decide to buy it.



[Hummingbird Ranch]

The QR code just gives you the link to the new 2023-2024 owners manual. You can easily find that on the Mahindra Roxor web page. The links for the 2018 service manuals are already linked in this thread. No one has yet been able to obtain, or has yet shared, any of the newer service manuals. We are all in the same boat as you.



[Icy McDusty]

Can anybody post a link to the manuals for the newer Roxors? I don't have a Roxor to scan a QR code for and I want a manual to get a better feeling for the vehicle before I decide to buy it.

I haaven't found updated service manuals or the like yet but did find a couple newer operator's guides that I don't think have been posted yet using searches. Links below.

2020 Operator's Guide
https://manaroxitdocuments.s3.us-ea...Manuals/ROXOR+2020MY+Operator's+Guide_V01.pdf

2022 Operator's Guide
https://s3.us-east-2.amazonaws.com/mana.assets.test3/2021/ROXOR-OperatorGuide-2022.pdf

It is my understanding that not much changed between 2018-2022 except for the hood & grille, so most of what's in the older documents will still apply.



[Redrod]

Old thread I know but a great one! Thanks



[Navasot]

How about the updated engine and transmissions?
