EGR delete done!

...................
Darstar

Darstar

Active member
Joined
Jul 2, 2018
Messages
470
Points
43
Location
Marquette, MI, USA
Roxor Ownership
Roxor Owner
Ok , we are all those of a different feather
An other respective is the reflection we have seen , as owners, of the Roxor. ........this vehicle has yet to be played out, it’s new , and is developing as we speak.......why is no other automotive endeavor anywhere close .? Laying down twenty grand for something we never expected , or thought was ever attainable , let alone our daily world. .......this is why I am so interested in the outcome.

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner

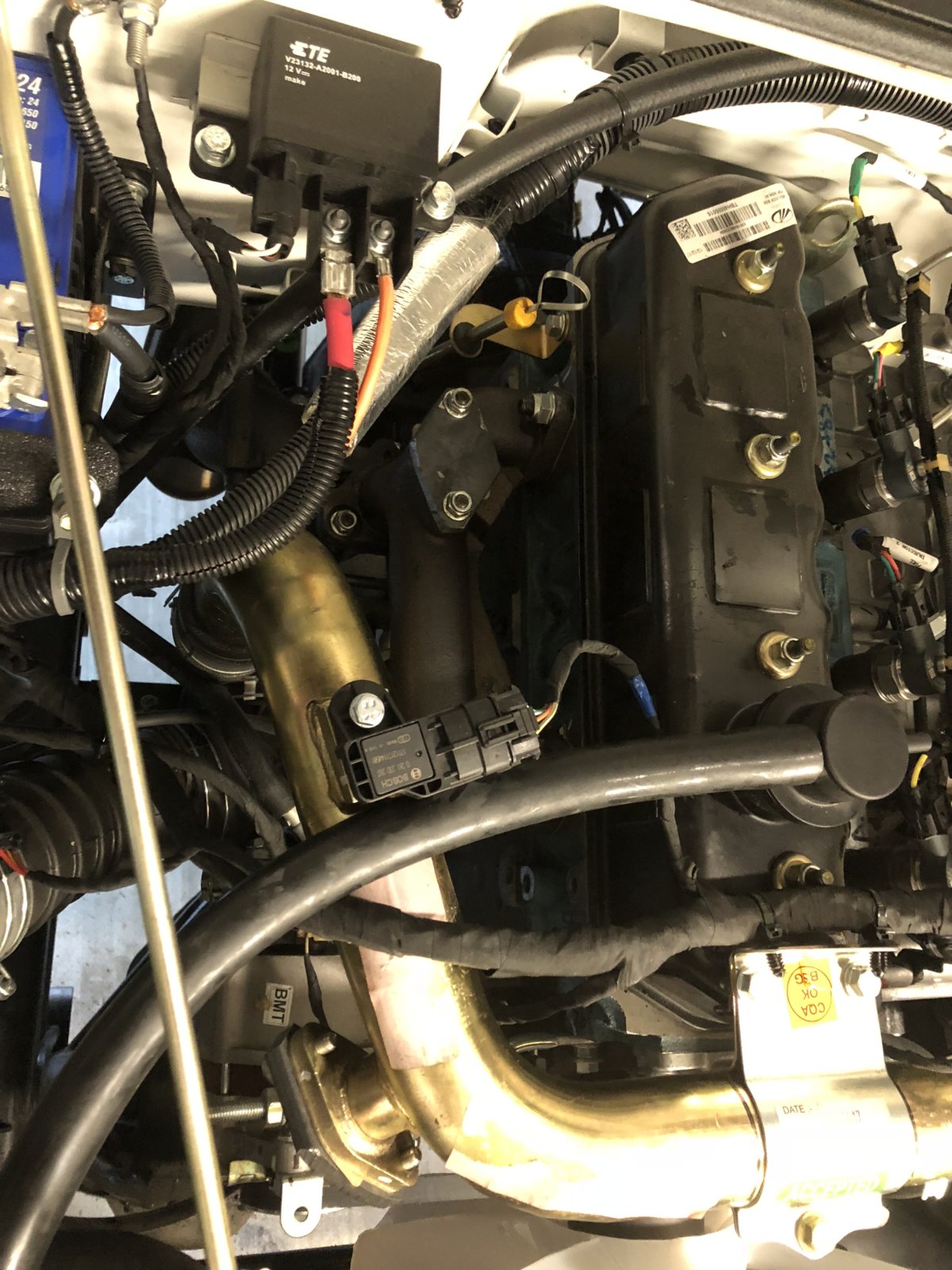

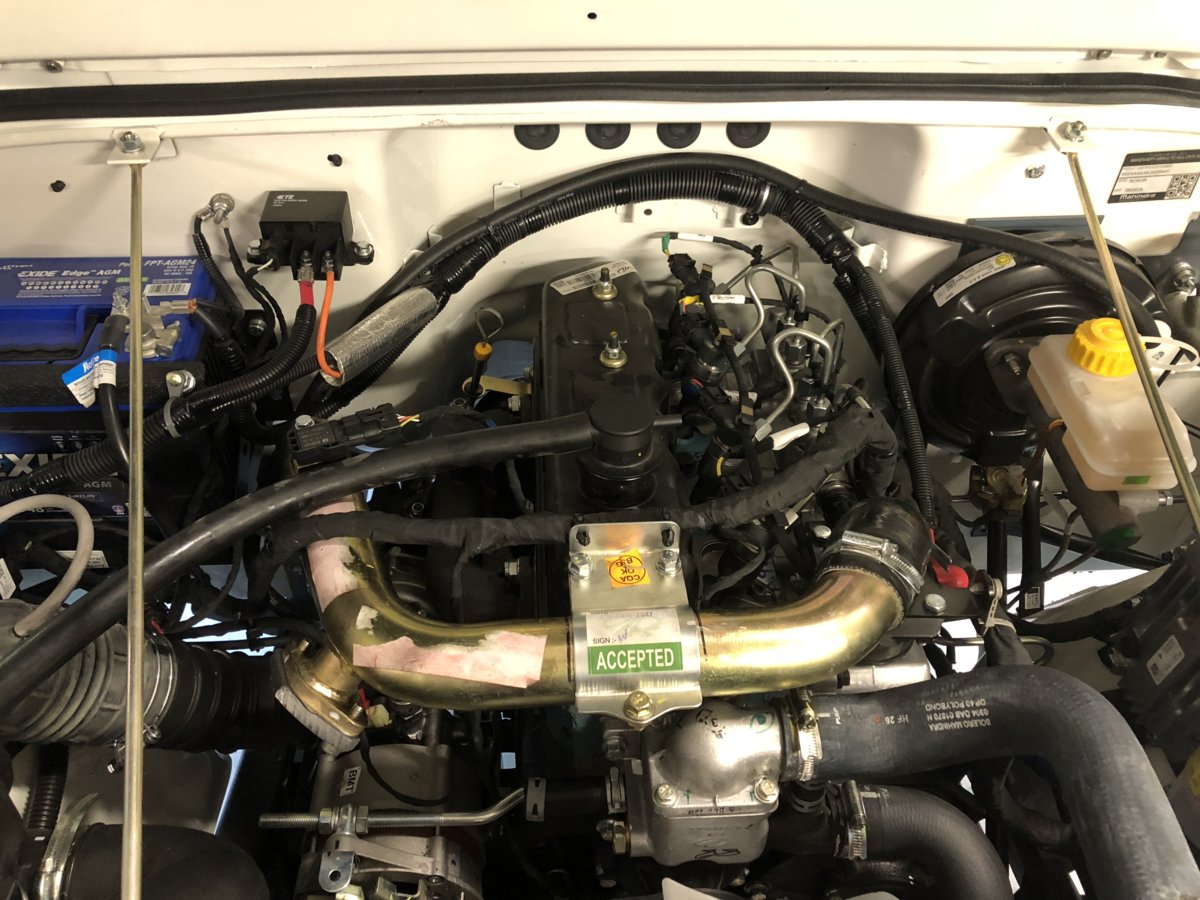

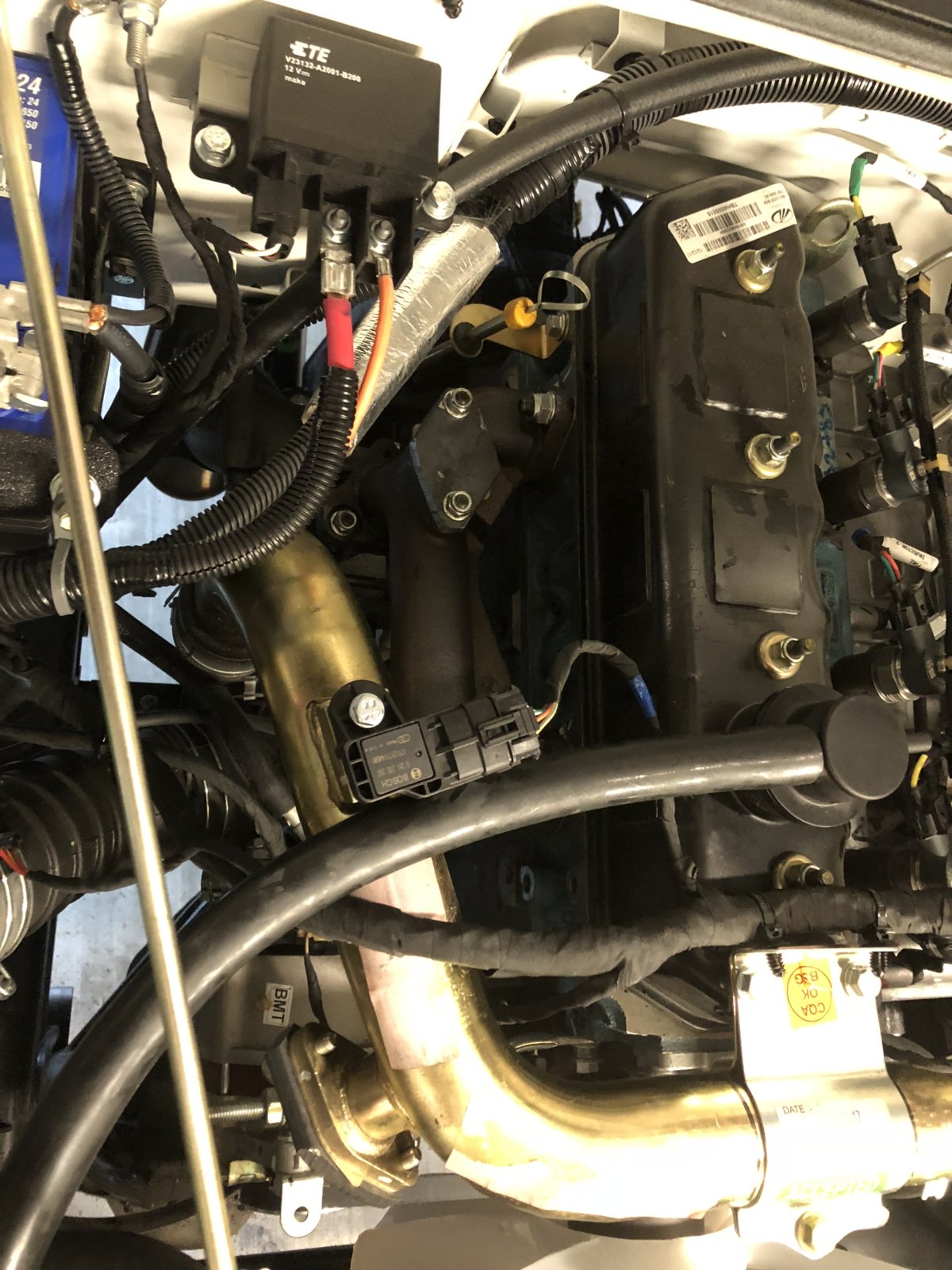

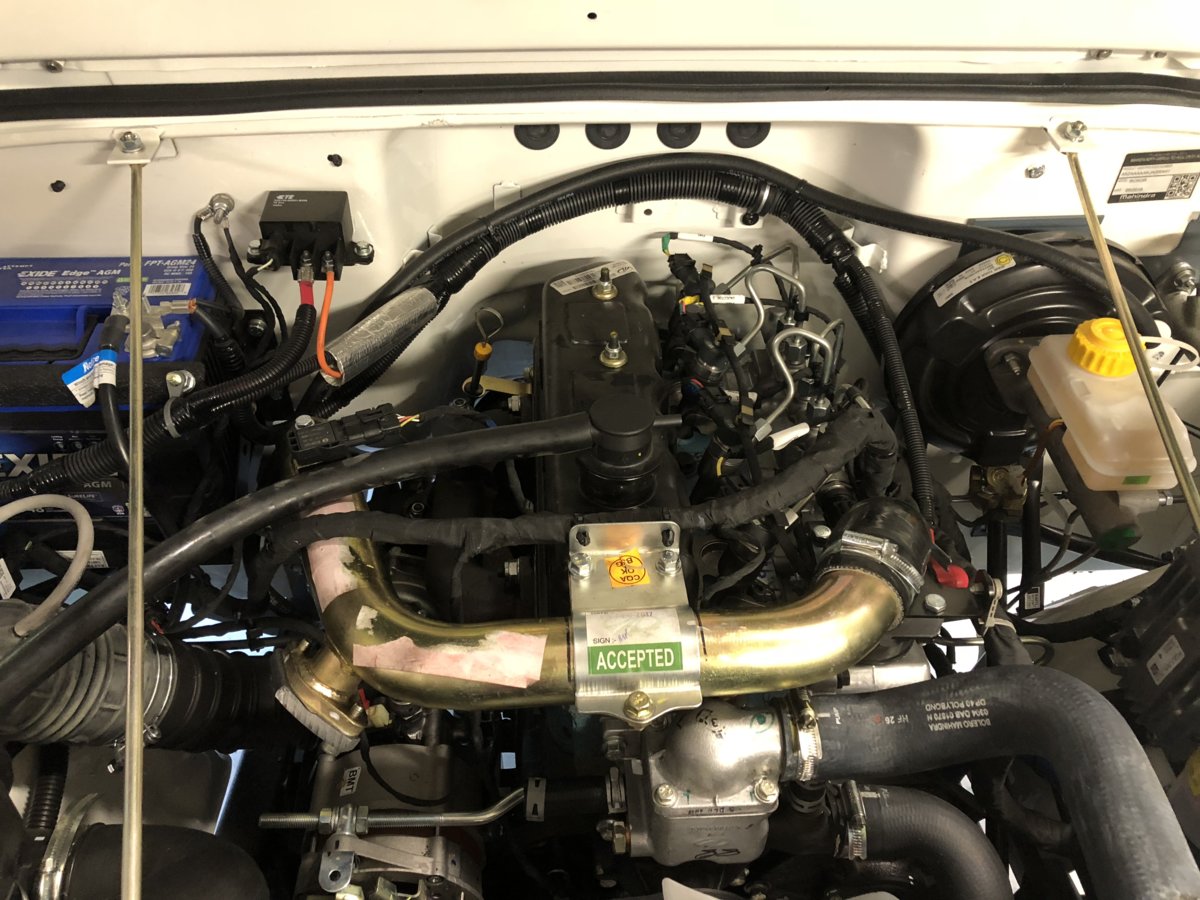

It’s minus an egr and all associated parts. Install was easy and no codes!

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner
I made the block off plates from 5/16” steel plate. It was probably a little overkill but I didn’t want them to warp and have a leak. You can reuse the metal gaskets that are on there. The only issue I had on mine was a coolant leak where I plugged off the water line on the pressure side but a worm gear hose clamp fixed it.

i303

i303

Active member
Joined
Aug 1, 2018
Messages
126
Points
43
Location
Arizona
Roxor Ownership
Roxor Owner
Roxor #
1266
Other than the work itself, how does it run? And what benefit do you attain?

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner
Now there is no benefit other than removing some excess heat from the engine compartment but over time and left alone a big difference. There was a surprising amount of soot for only 140 miles.

jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
699
Points
63
Location
WI
Roxor Ownership
Roxor Owner
Other than DPF, EGR might be the single stupidest decison in the automotive world. It needs to go for the longevity of the engine.

Last edited:
jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
699
Points
63
Location
WI
Roxor Ownership
Roxor Owner
I made the block off plates from 5/16” steel plate. It was probably a little overkill but I didn’t want them to warp and have a leak. You can reuse the metal gaskets that are on there. The only issue I had on mine was a coolant leak where I plugged off the water line on the pressure side but a worm gear hose clamp fixed it.
Plugged not bypassed?

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner
I plugged the coolant line on both sides of the water pump because the egr cooler was the only thing it fed. A bypass would just rob coolant flow from the engine because it would be a 6” loop that isn’t feeding anything else.

jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
699
Points
63
Location
WI
Roxor Ownership
Roxor Owner
Very cool. Us tundra types will be putting that heat to good use :p

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner
It will be a very easy place to connect heater hoses for a pressure and return side for those wanting to install a heater.

J

Jimmyb

Active member
Founding Member
Joined
Mar 13, 2018
Messages
189
Points
43
Roxor Ownership
Roxor Owner
Sure thing! I’m going to meet with a friend of mine this week about cutting block off plates in bulk on a water jet machine.

R

ROXOR

Administrator
Staff member
Joined
Mar 3, 2018
Messages
234
Points
43
Location
North Carolina
Roxor Ownership
Looking to buy
Thread Updated.
Moved all ERG DELETE into this thread and I feel it will be a hot topic!

jrobz23

jrobz23

Well-known member
Founding Member
Joined
May 17, 2018
Messages
699
Points
63
Location
WI
Roxor Ownership
Roxor Owner
Sure thing! I’m going to meet with a friend of mine this week about cutting block off plates in bulk on a water jet machine.
I am definitely interested in the plates.
