Good afternoon.

I recently bought the new straigh roll bar arms and C pillar kit for my ROXOR with the idea of adding a back seat. The original 45° bar pieces came off the no issues.

The new straight bar on the passenger side fits fine. Bolt holes line up and everything seems to be in order. But the driver side bar holes won't line up with the B pillar. The top two bolt holes are probably close to 1/4" from being lined up with each other.

Before I get a drill out and open the bolt holes I thought I'd ask here for some pointers if anyone has had a similar experience.

Sent from my SM-G970U using Tapatalk

...................
CJ2Rox

CJ2Rox

Active member
Joined
Oct 30, 2020
Messages
282
Points
43
Location
Clearfield, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
6475
Unfortunately they are all like that. I had 4 passenger rops that I swapped out the sport rops. I had a time getting the passenger side to line up. Was able with some crystal blue persuasion. It will line up to the existing holes you will just need to do alittle fighting. I have the original 4 seater high back seat that I'm trying to sell for half the price as the new one.

Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
312
Points
43
Location
US
Just talked to Dustin at Sherwood. It sounds like MANA may have gotten a bad batch of 4-passenger ROPS from their supplier. He says I'm the 5th person to call and complain about the fitment. No word yet on how MANA will go about providing a fix.

Sent from my SM-G970U using Tapatalk

CJ2Rox

CJ2Rox

Active member
Joined
Oct 30, 2020
Messages
282
Points
43
Location
Clearfield, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
6475
I had those rops, the fix is a prybar and some force.

txroadkill

txroadkill

Well-known member
Joined
Oct 28, 2018
Messages
579
Points
63
Location
Texas
Roxor Ownership
Roxor Owner
Roxor #
2498
Don’t know about a bad batch. I guess it depends on batch size. I bought one that was discounted due to scratches/chips in the powder coat from shipping. It was exactly like described here. i just drilled/wallowed out the holes to make it fit. Bought mine 2 years ago. So the batch had to have been huge if that’s the case.

CJ2Rox

CJ2Rox

Active member
Joined
Oct 30, 2020
Messages
282
Points
43
Location
Clearfield, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
6475
The guy I swapped rops for had the same issue putting my 4 passenger rops on where his sport rops used to be. I was able to make it work with out drilling

M

Mpm

New member
Joined
Aug 22, 2020
Messages
12
Points
3
Location
Camas, WA, USA
Roxor Ownership
Roxor Owner
I was one of the guys that got a bad set from Sherwood/Roxor. My scenario was a bit different though. After waiting 10 weeks, I got the shipment but it included 2 right side ROPS bars. One was a perfect fit and the other would’ve required some filing. Waited another 6 weeks to get a replacement. All I needed was a left bar but they sent another full set. The “new” left side bar did require some filing to fit the B and C pillars. I had received the full soft top after 6 weeks and finally got it installed after 16 weeks, due to this rear ROPS issue with QC from Roxor. Obviously, it took some patience on my part but Sherwood (Dustin) was good to work with. All in all, it was worth the wait and the full top is outstanding.


Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
312
Points
43
Location
US

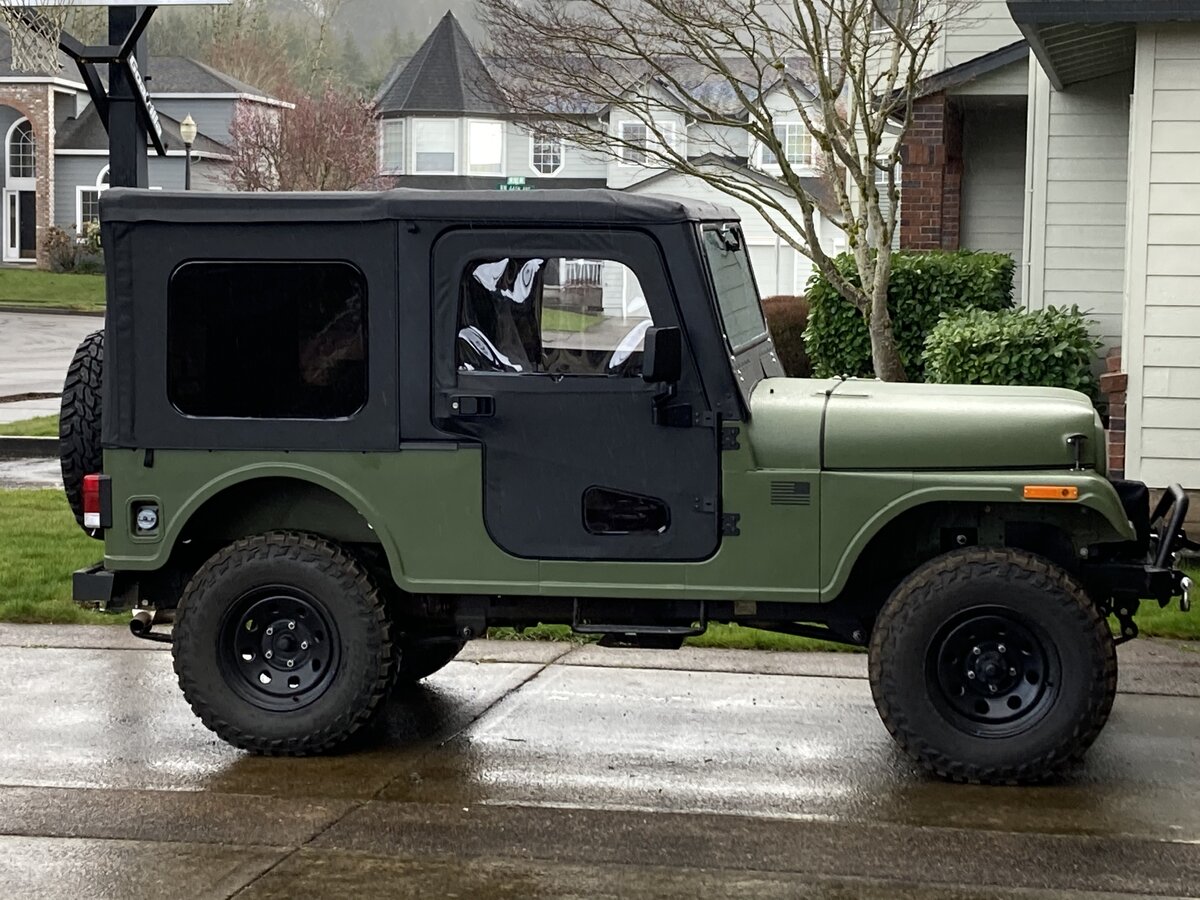

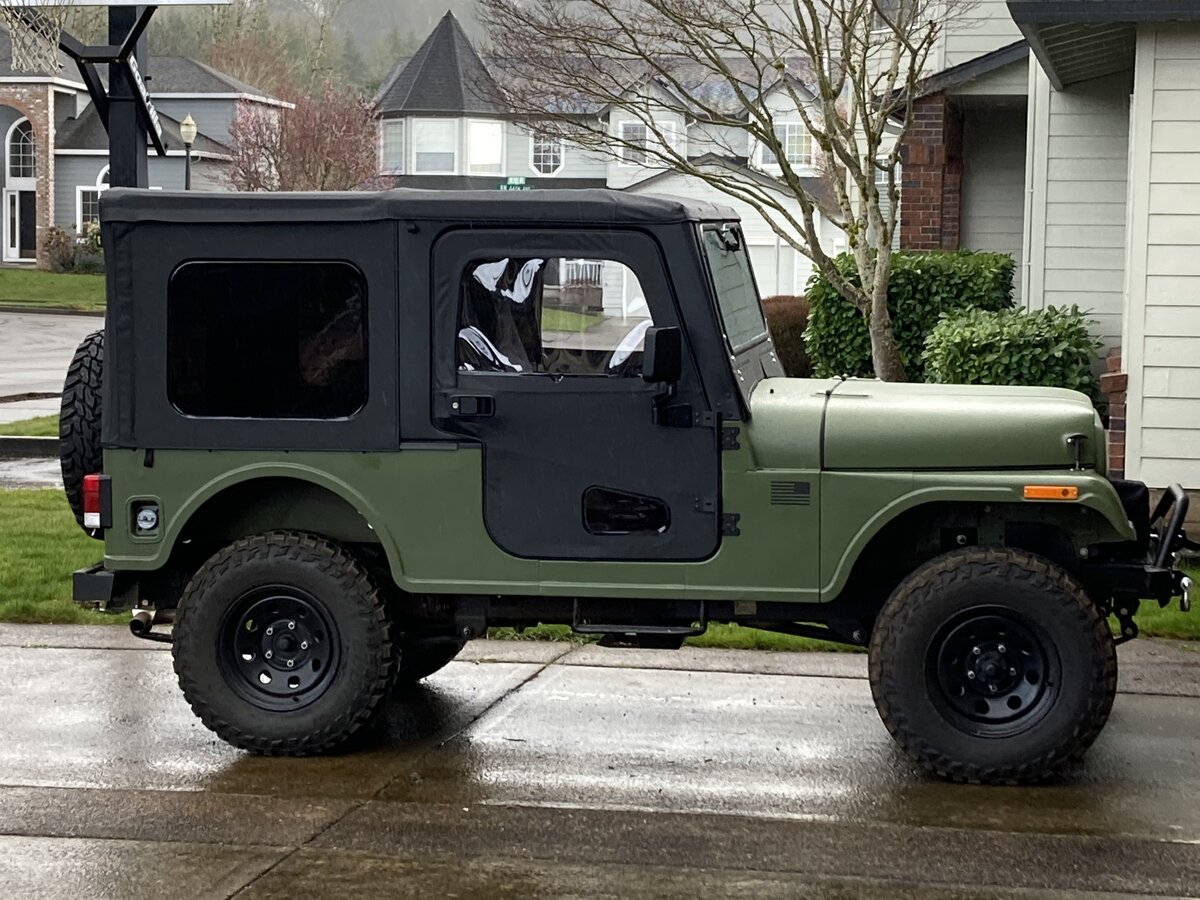

I was one of the guys that got a bad set from Sherwood/Roxor. My scenario was a bit different though. After waiting 10 weeks, I got the shipment but it included 2 right side ROPS bars. One was a perfect fit and the other would’ve required some filing. Waited another 6 weeks to get a replacement. All I needed was a left bar but they sent another full set. The “new” left side bar did require some filing to fit the B and C pillars. I had received the full soft top after 6 weeks and finally got it installed after 16 weeks, due to this rear ROPS issue with QC from Roxor. Obviously, it took some patience on my part but Sherwood (Dustin) was good to work with. All in all, it was worth the wait and the full top is outstanding.View attachment 9069View attachment 9069

View attachment 9069
Looks nice. Who's windshield?

Sent from my SM-G970U using Tapatalk

M

Mpm

New member
Joined
Aug 22, 2020
Messages
12
Points
3
Location
Camas, WA, USA
Roxor Ownership
Roxor Owner
It’s a Dirt Warrior fixed windshield. I really like the vents. I was fairly concerned about how it would fit with the roxor (bestop) soft top but it worked out very well with some minor modification.


Sent from my iPhone using Tapatalk

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,385
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
I was one of the guys that got a bad set from Sherwood/Roxor. My scenario was a bit different though. After waiting 10 weeks, I got the shipment but it included 2 right side ROPS bars. One was a perfect fit and the other would’ve required some filing. Waited another 6 weeks to get a replacement. All I needed was a left bar but they sent another full set. The “new” left side bar did require some filing to fit the B and C pillars. I had received the full soft top after 6 weeks and finally got it installed after 16 weeks, due to this rear ROPS issue with QC from Roxor. Obviously, it took some patience on my part but Sherwood (Dustin) was good to work with. All in all, it was worth the wait and the full top is outstanding.View attachment 9069View attachment 9069

View attachment 9069
Nice shell, looks good.

Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
312
Points
43
Location
US
There's just no lining up the top two holes in the B pillar on the driver's side. The mounting bracket is simply too short.

I may be able to drill the holes out but looking at how far I'd have to go likely means new bolts or adding washers. It might be better to cut some elongated slots rather than auger the holes out.

Other options include simply welding the bar to the pillar, cutting the bracket off and welding a longer one in place, ignoring the problem and leaving to top bolts out or simply putting the original ROPS back on.

I'll call Sherwood again in the morning to see if they've been able to get any additional info from MANA.



Sent from my SM-G970U using Tapatalk

CJ2Rox

CJ2Rox

Active member
Joined
Oct 30, 2020
Messages
282
Points
43
Location
Clearfield, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
6475
I personally cut off the center pillar brackets and welded them the way I wanted the Rops.
