2.7L EGR HELP

[Wm435]

I've never driven a solid front axle vehicle. Also never been that fast on four wheels with no roof or windshield. That may be part of why it felt sketchy.

I've done it with roof and Windshield, and without and yes it feels very sketchy without a steel roof and a DOT rated window.

I love my roxor, got close to 40K miles and no regrets



[BAM]

I have a 2024 and it will not put your roxor in limp mode, keep everything electronic plugged in and just install the plates.

Did you do anything with the coolant lines?



[SPX]

Did you do anything with the coolant lines?

You can either reroute them or leave them there is not difference.



[kcrepairgarage]

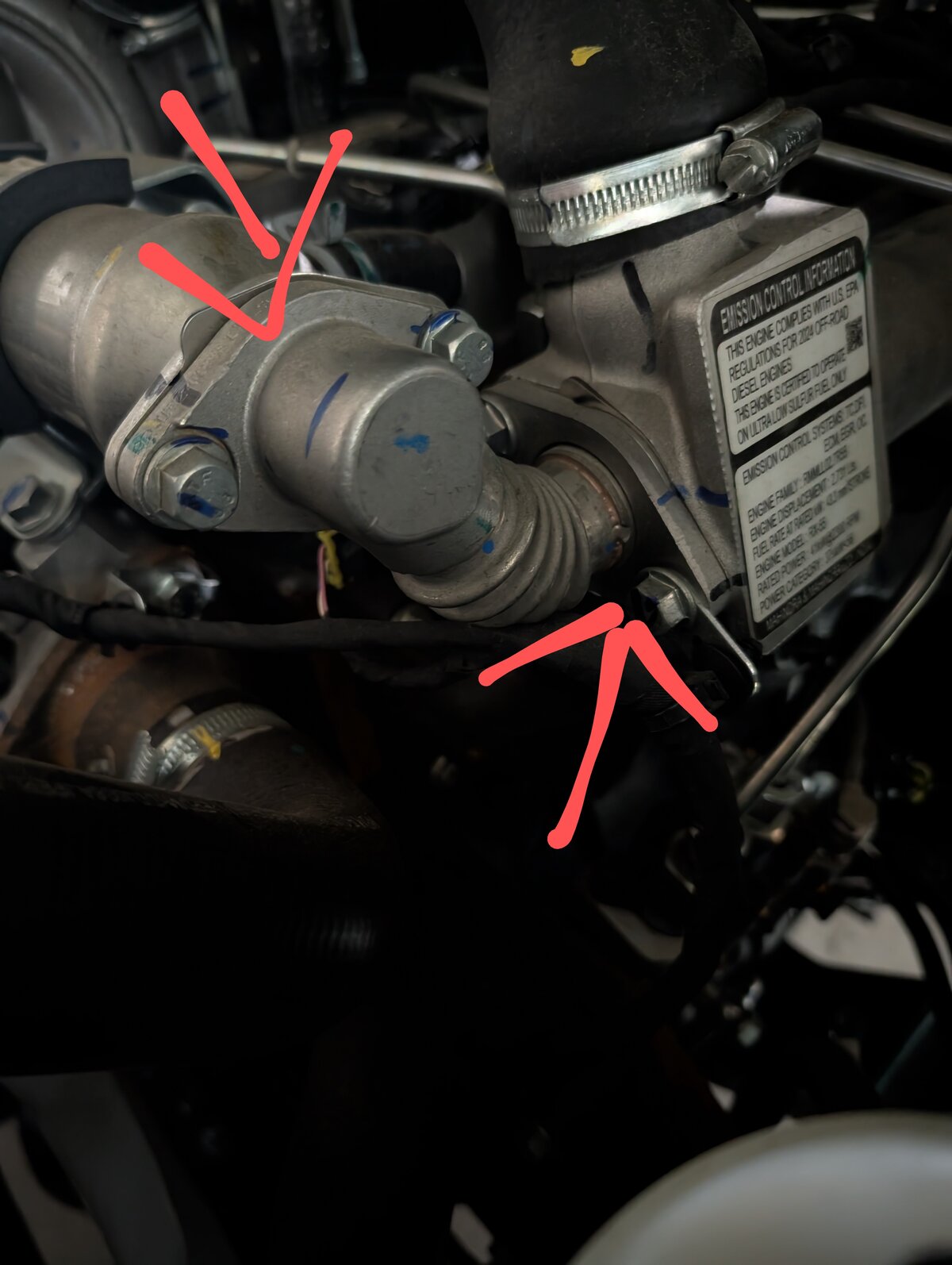

I am receiving my plates to block off the EGR? Is this the two spots to place the plates?

Never owned a diesel before and want to make sure I'm not getting ahead of myself!

This is a 2.7L '24 Model

Thanks,
View attachment 14609

Did this placement of plates seem to work correctly?



[SPX]

Did this placement of plates seem to work correctly?

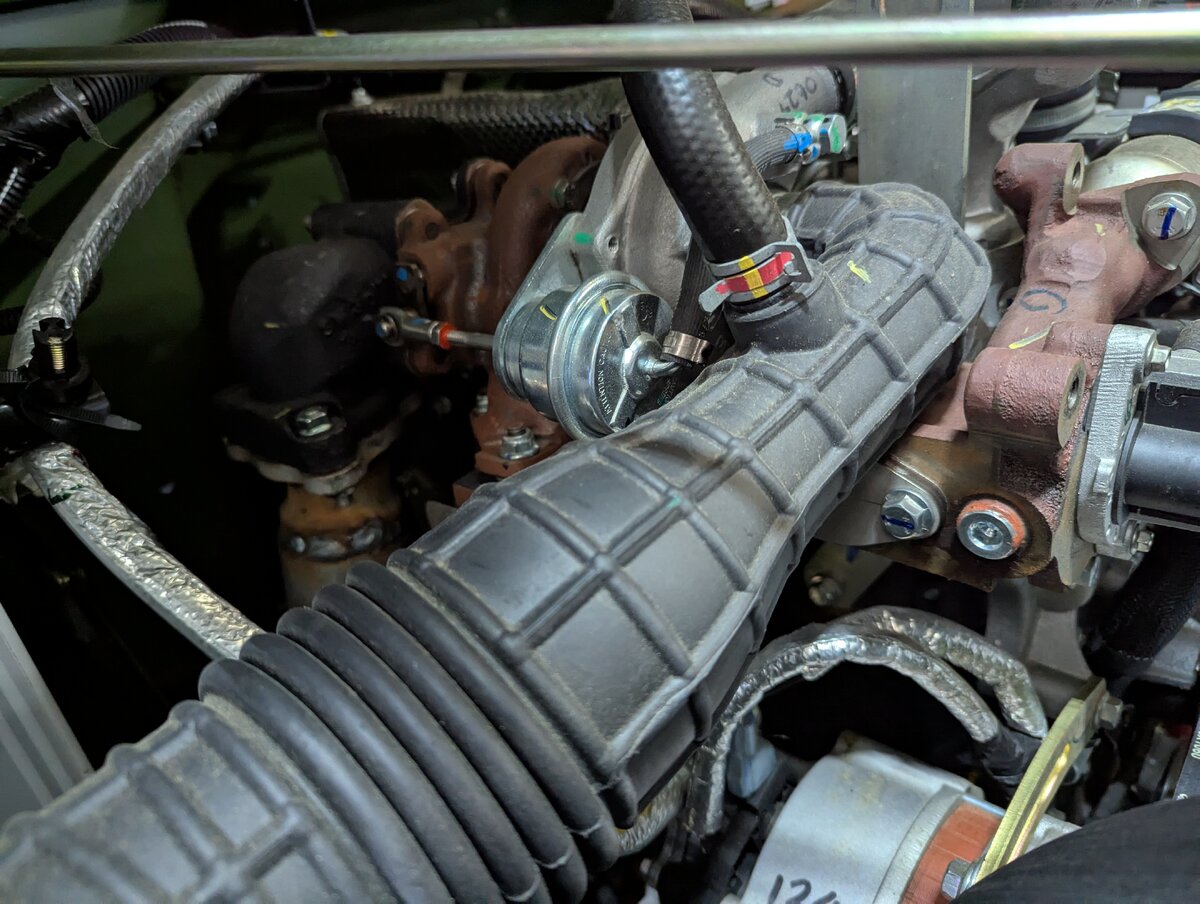

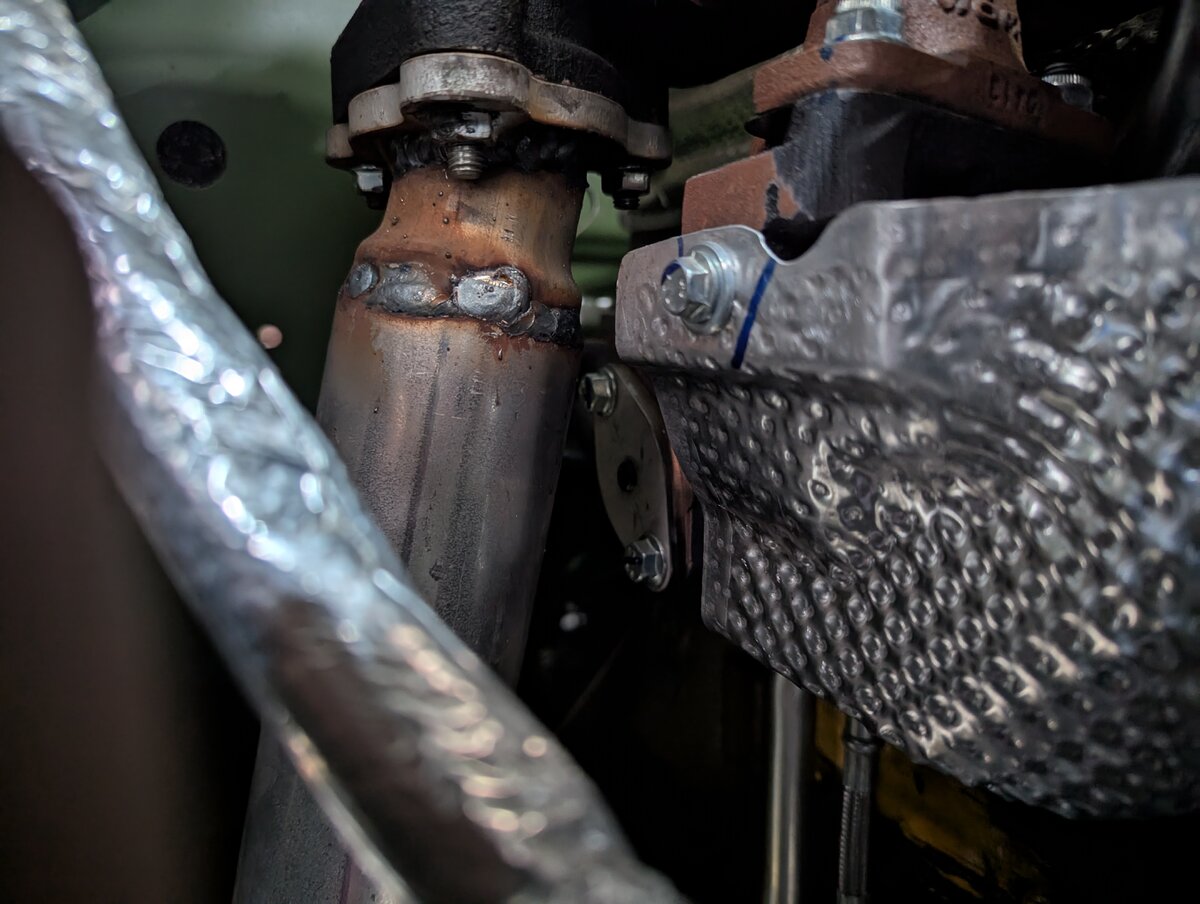

Look at these Pics this is where removed tube and you can see the two block off plates installed. One beside exhaust pipe where SCR was and the other under the air intake on turbo.

In your picture where the upper arrow is, I took off and welded it closed and put it back on like factory.
