Where is a good spot to find a switched 12v source I can tie into?

...................
Bister

Bister

Well-known member
Founding Member
Joined
Mar 9, 2018
Messages
1,242
Points
113
Location
Gerald, SK, Canada
Roxor Ownership
Roxor Owner
Roxor #
2194
Where is a good spot to find a switched 12v source I can tie into?
I tied into the power point wire to trigger a relay for my extra fuse box. I think there is a spot on the ignition also if you know how to get into it. There are a few other also.

BDRAG

BDRAG

Well-known member
Lifetime Member
Joined
Aug 26, 2018
Messages
423
Points
63
Location
DALLAS AREA
Roxor Ownership
Roxor Owner
Roxor #
1541
I tied into the power point wire to trigger a relay for my extra fuse box. I think there is a spot on the ignition also if you know how to get into it. There are a few other also.
For my power accessories that I did not want on while key or accessory is on, I tapped off the provided stud on the positive battery terminal. I add an in line fuse on any wire I have run there. Just find the correct nut and washers. May be 1/4-20 or a metric. Can't remember.

I also added a power switch to control them separate from the key. I kill all power to my radio and GPS so I don't get a power drain on the battery during storage down time.

I added an all weather switch in one of the factory dash switch locations that have the blank offs. I used a switch I found at AutoZone.

IMG_20200325_141841.jpg IMG_20200325_141853.jpg IMG_20180901_235748.jpg

Bister

Bister

Well-known member
Founding Member
Joined
Mar 9, 2018
Messages
1,242
Points
113
Location
Gerald, SK, Canada
Roxor Ownership
Roxor Owner
Roxor #
2194
For my power accessories that I did not want on while key or accessory is on, I tapped off the provided stud on the positive battery terminal. I add an in line fuse on any wire I have run there. Just find the correct nut and washers. May be 1/4-20 or a metric. Can't remember.

I also added a power switch to control them separate from the key. I kill all power to my radio and GPS so I don't get a power drain on the battery during storage down time.

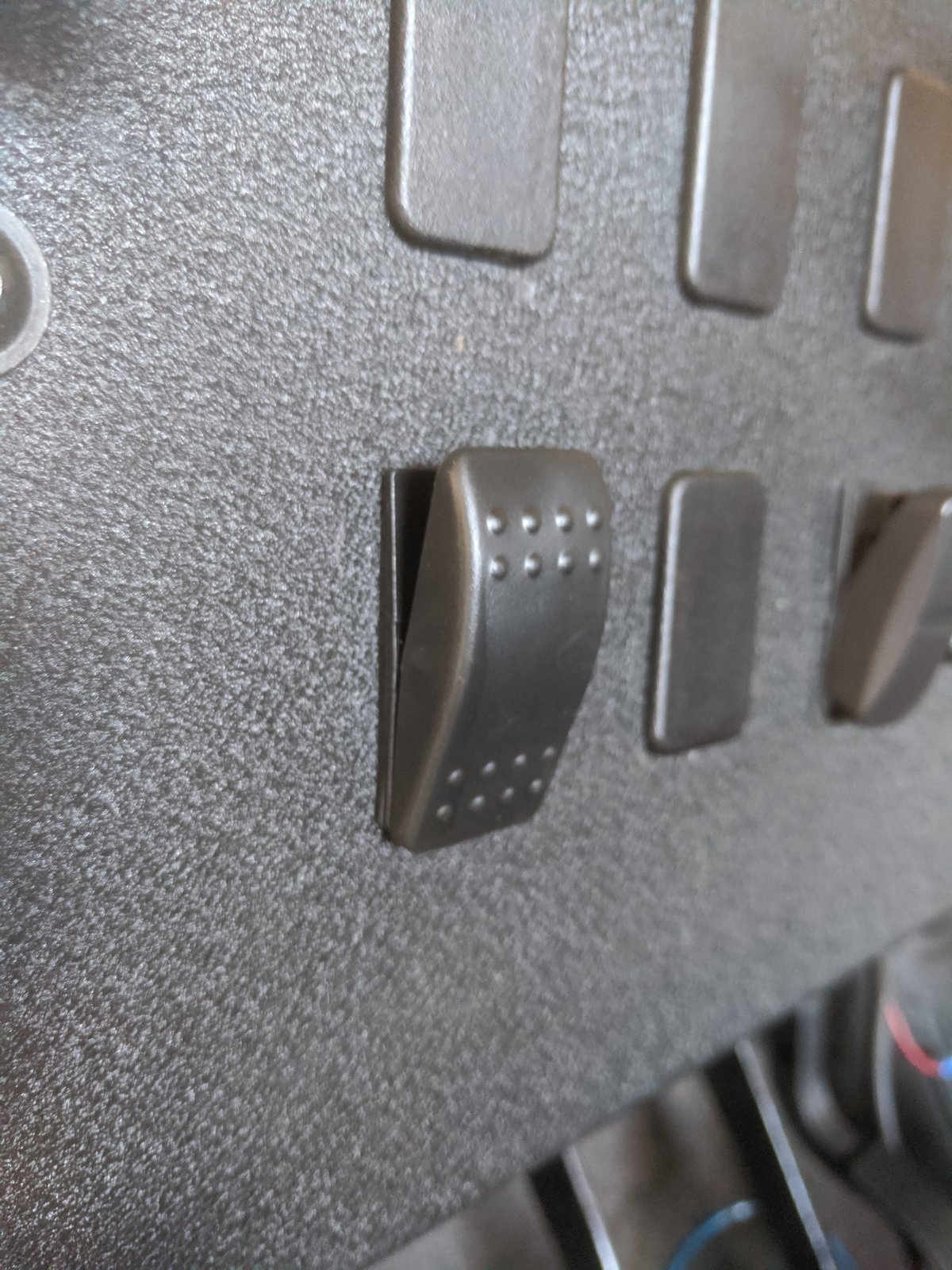

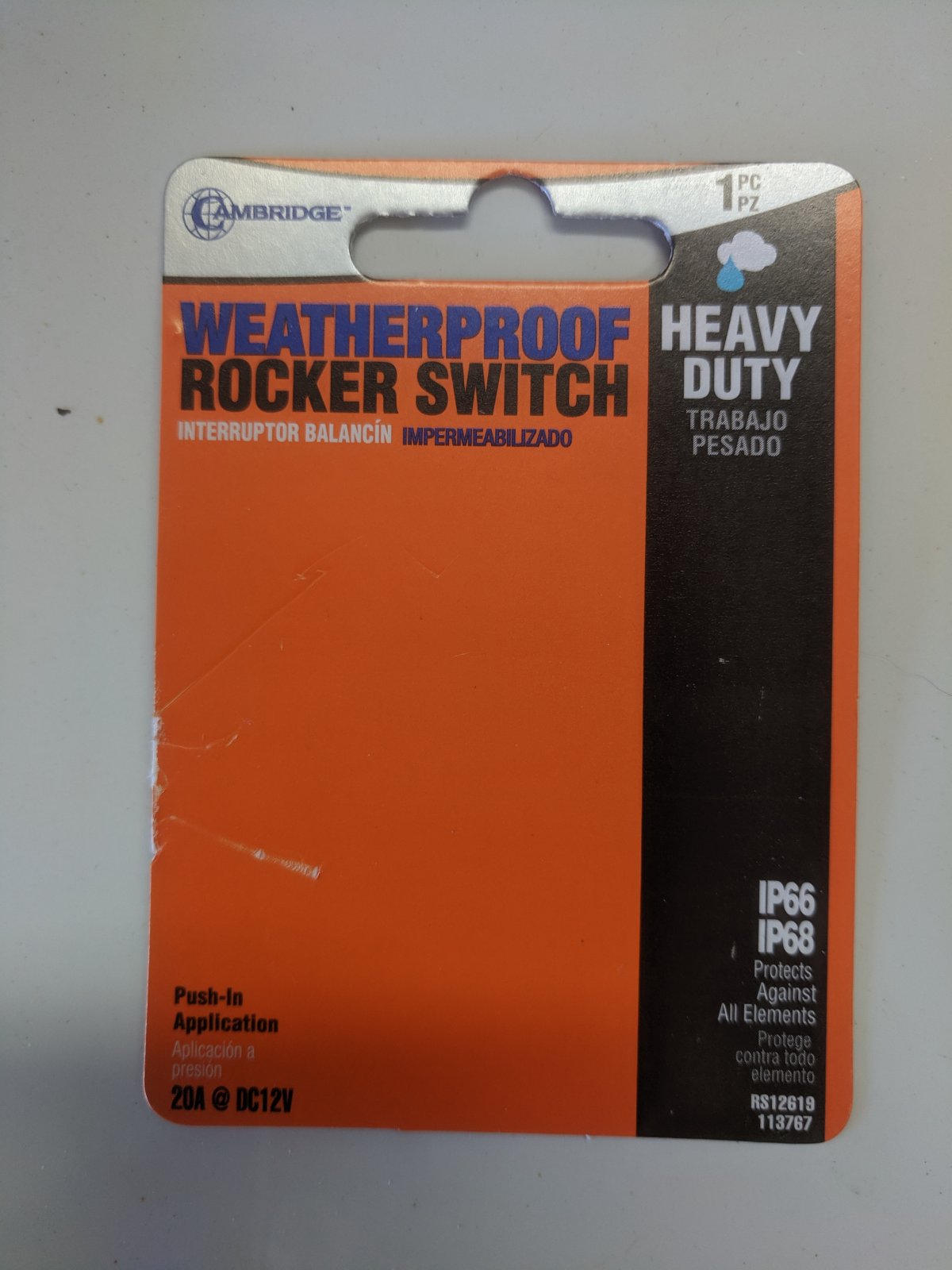

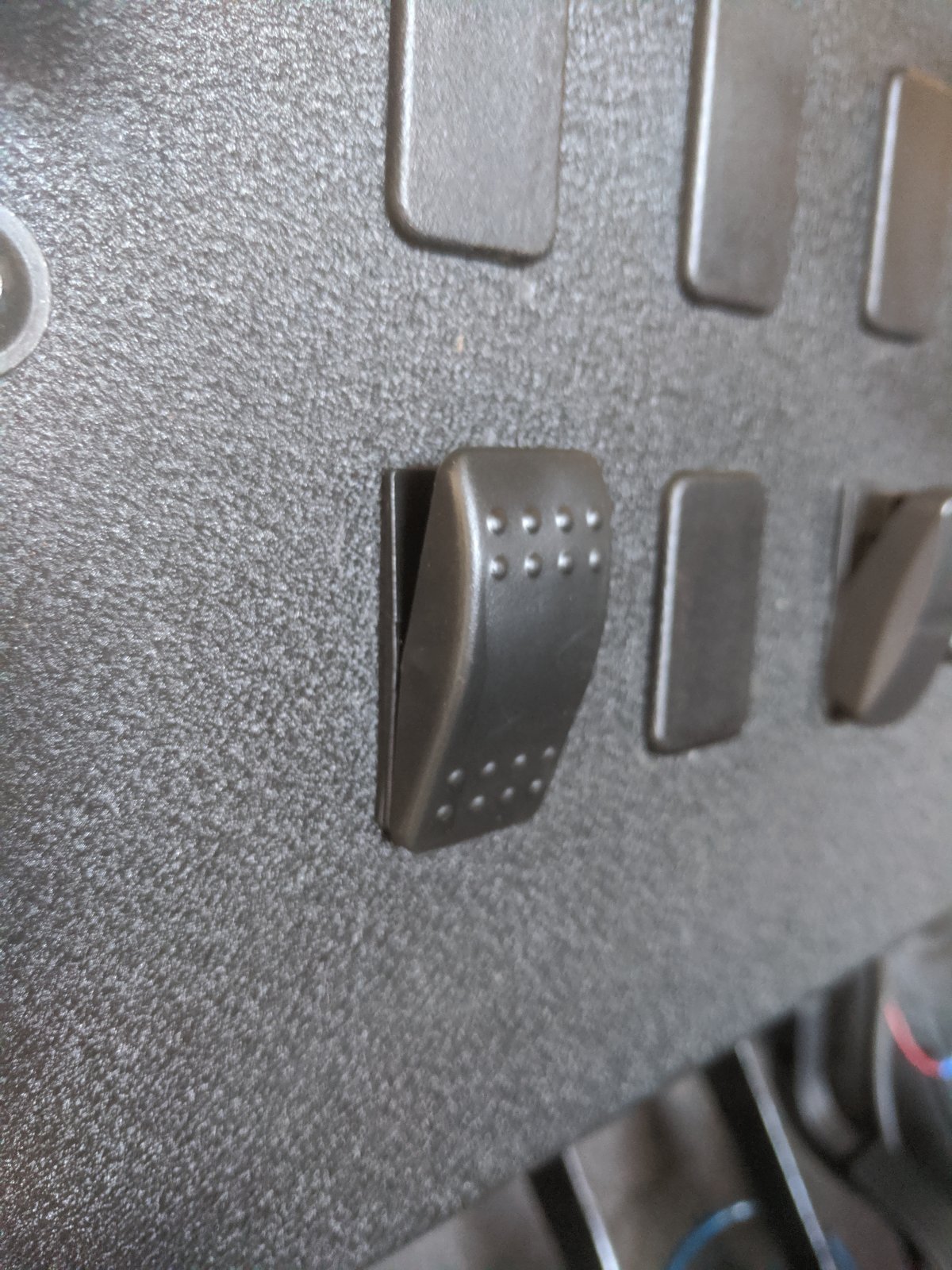

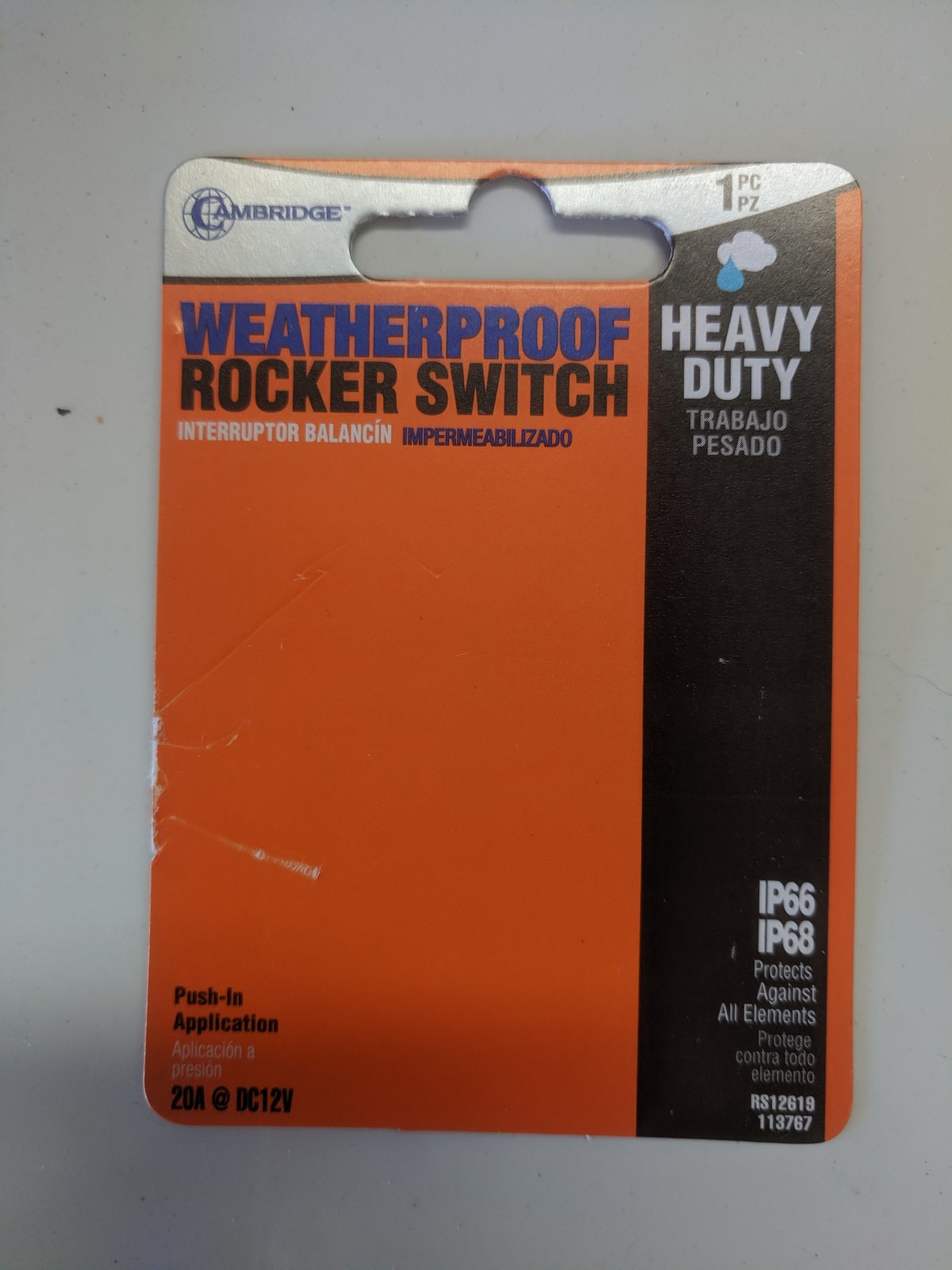

I added an all weather switch in one of the factory dash switch locations that have the blank offs. I used a switch I found at AutoZone.

View attachment 6582 View attachment 6583 View attachment 6584
That is close to what I did. My fuse box is hooked direct to the battery, but I use a relay triggered by the power point wire to turn the extra fuse block on and off instead of a manual switch. Everything goes off with the key. You can replace your manual switch with a $4 relay and it becomes all automatic with the key.

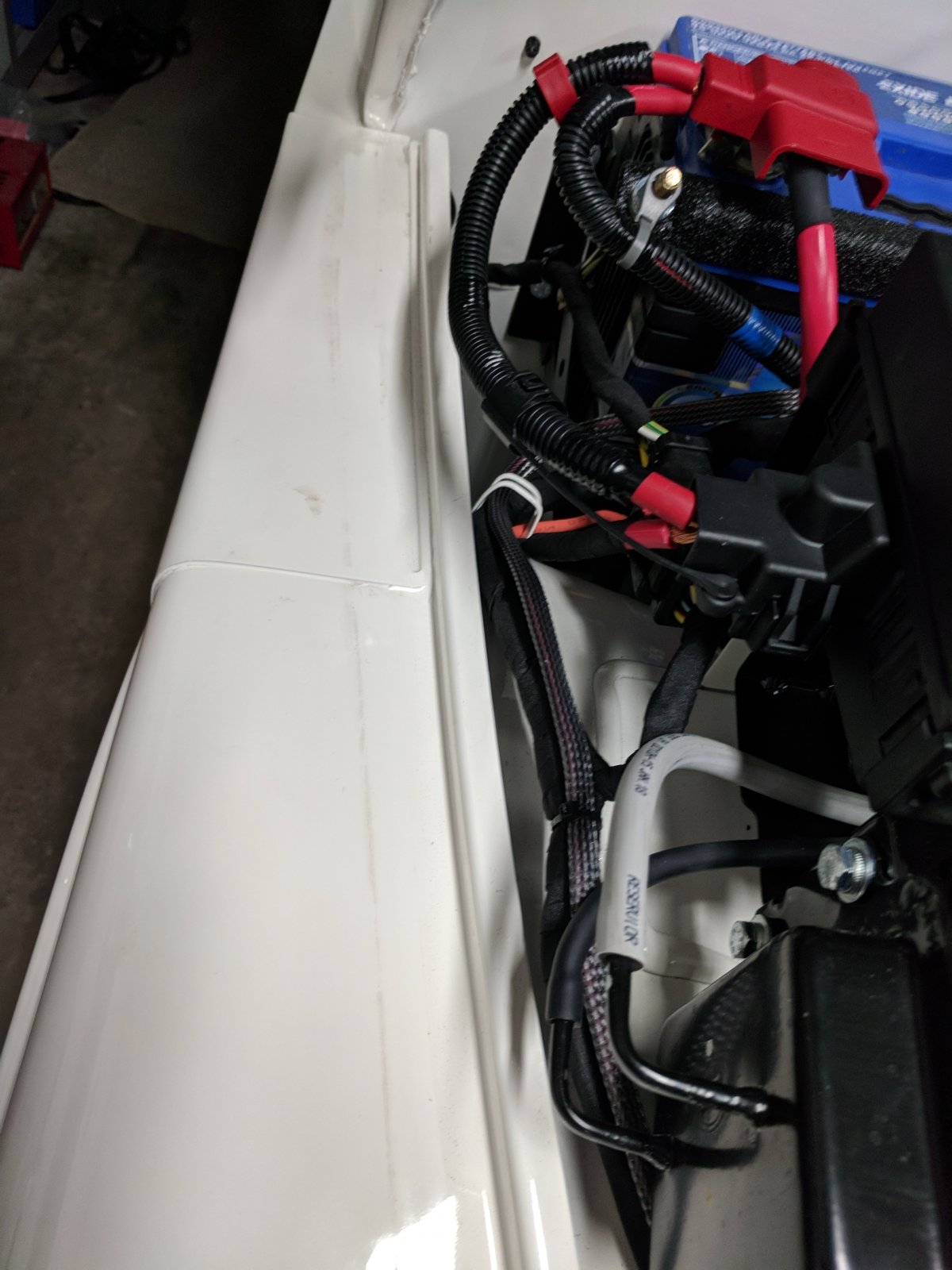

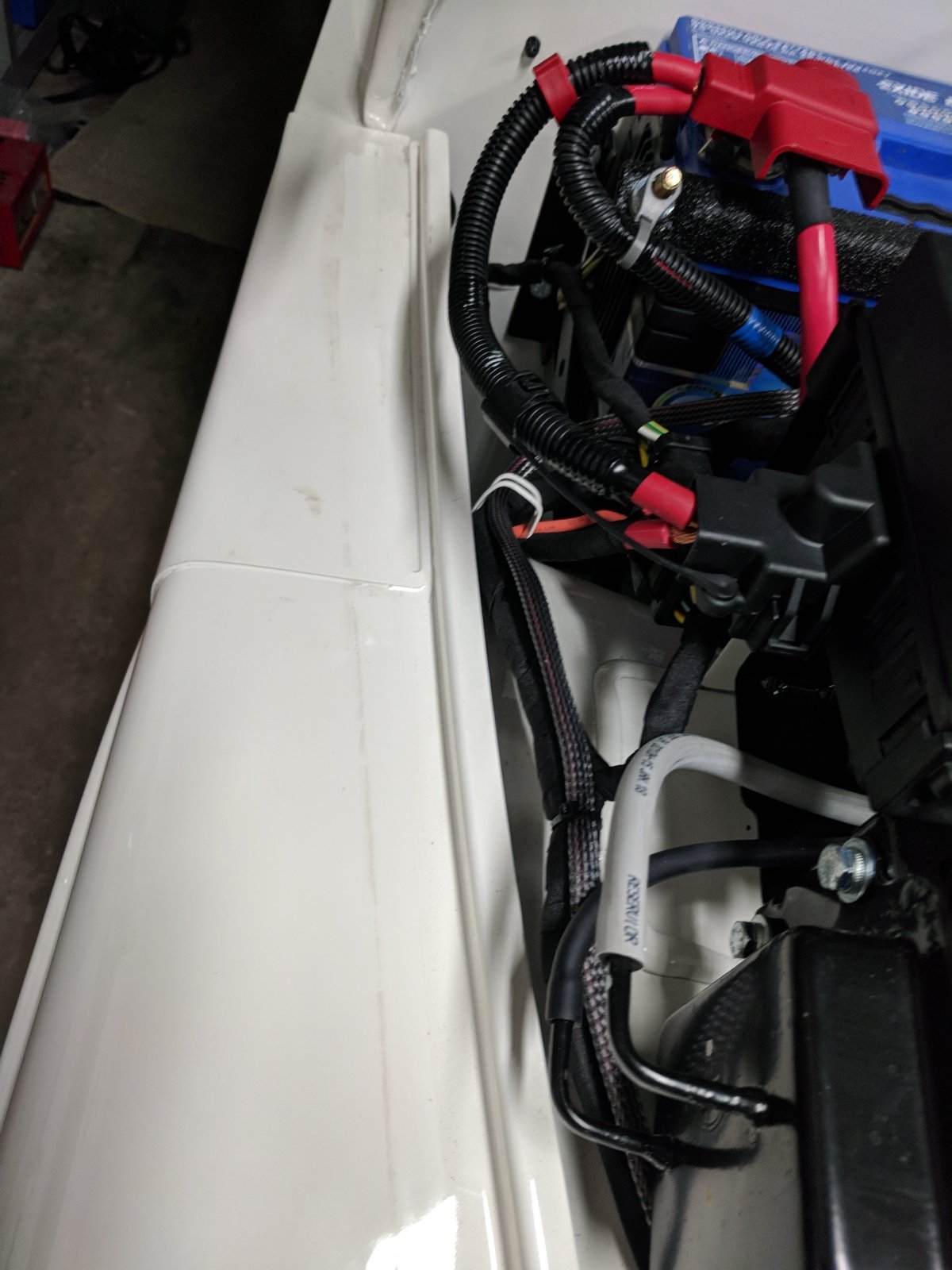

This is my extra fuse block that all my after market stuff is hooked to. It comes on and off with the key so I have no power drains. FYI: this is before I tied up the wiring. lol


75f250

75f250

Member
Joined
Nov 15, 2018
Messages
60
Points
18
Location
Slave Lake, AB, Canada
Roxor Ownership
Roxor Owner
Roxor #
2196
I just added more circuits into the original fuse box under to hood to avoid adding any clutter from an extra fuse box and relays

DesertRox

DesertRox

Active member
Joined
Apr 10, 2020
Messages
105
Points
28
Location
Southern Arizona
Roxor Ownership
Roxor Owner
I just added more circuits into the original fuse box under to hood to avoid adding any clutter from an extra fuse box and relays
What parts did you use to add to the box?

75f250

75f250

Member
Joined
Nov 15, 2018
Messages
60
Points
18
Location
Slave Lake, AB, Canada
Roxor Ownership
Roxor Owner
Roxor #
2196

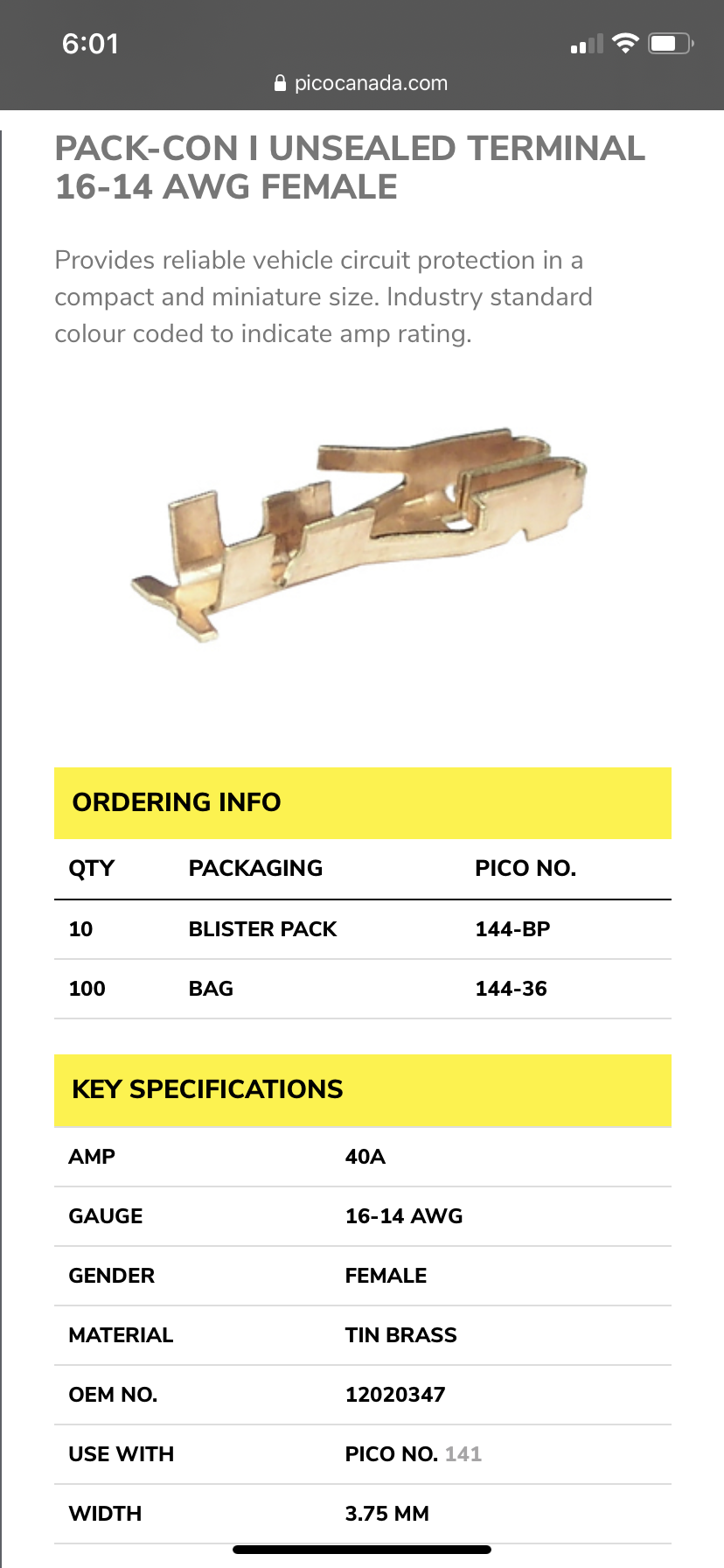

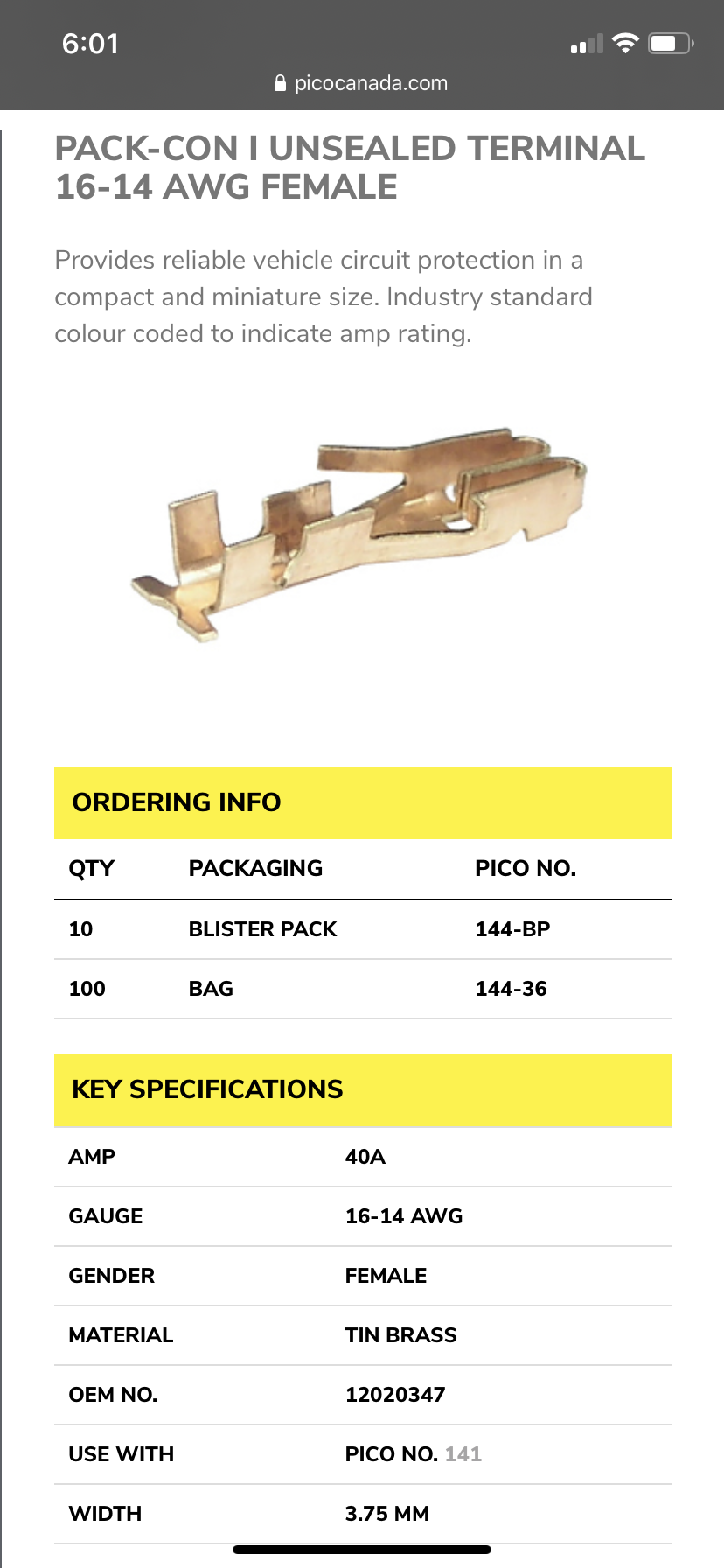

It was pico pack-con 1 or 2 can’t find the pack. I removed the fuse box from its mount and opened the back. Tied it into keyed power inside the boxCE609114-99A9-44B5-B4A7-E4D86E71102E.png I did have to modify the fuse connectors a bit

DesertRox

DesertRox

Active member
Joined
Apr 10, 2020
Messages
105
Points
28
Location
Southern Arizona
Roxor Ownership
Roxor Owner
It was pico pack-con 1 or 2 can’t find the pack. I removed the fuse box from its mount and opened the back. Tied it into keyed power inside the boxView attachment 6591 I did have to modify the fuse connectors a bit
Great this will help!! Thanks for the info
