Share your Mahindra Roxor Pictures!

...................
Darstar

Darstar

Active member
Joined
Jul 2, 2018
Messages
405
Likes
143
Points
43
Location
Marquette, MI, USA
Roxor Ownership
Roxor Owner

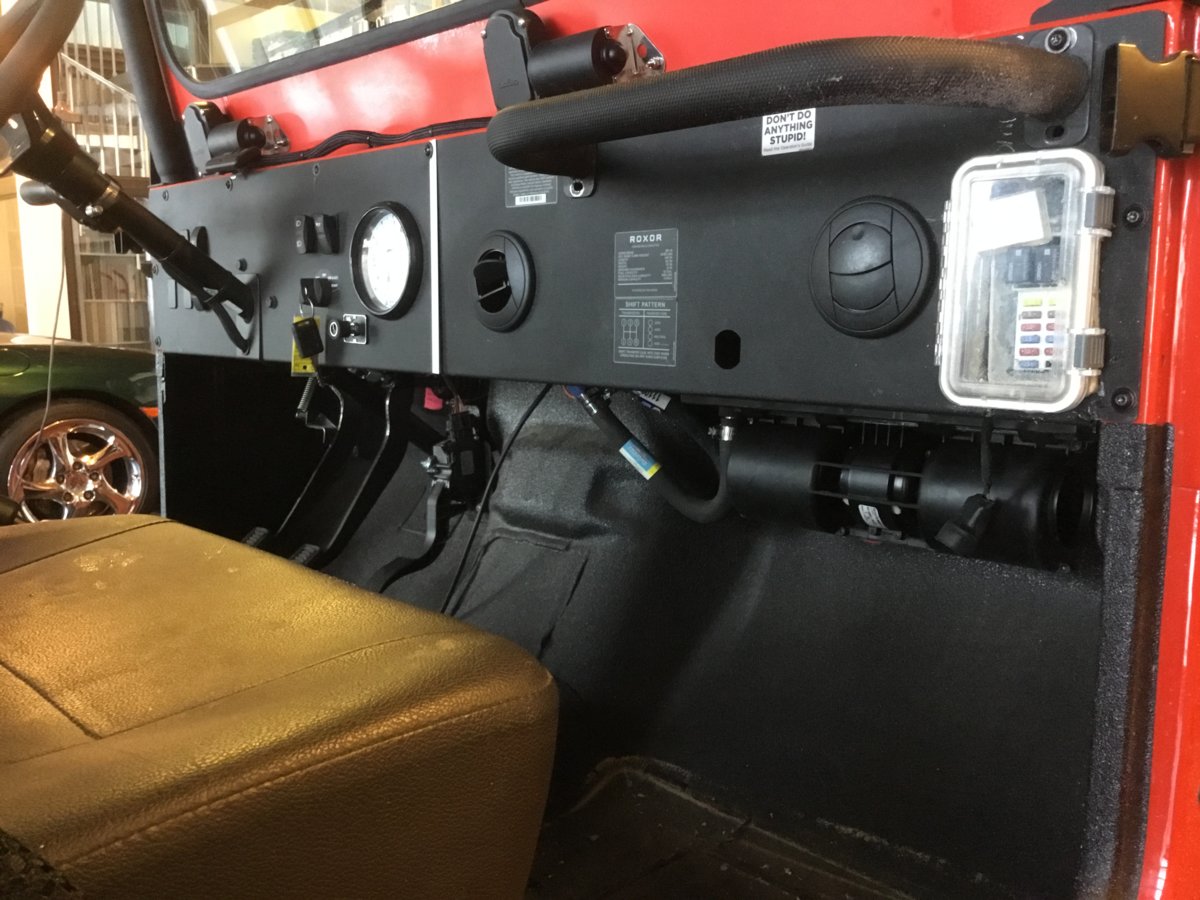

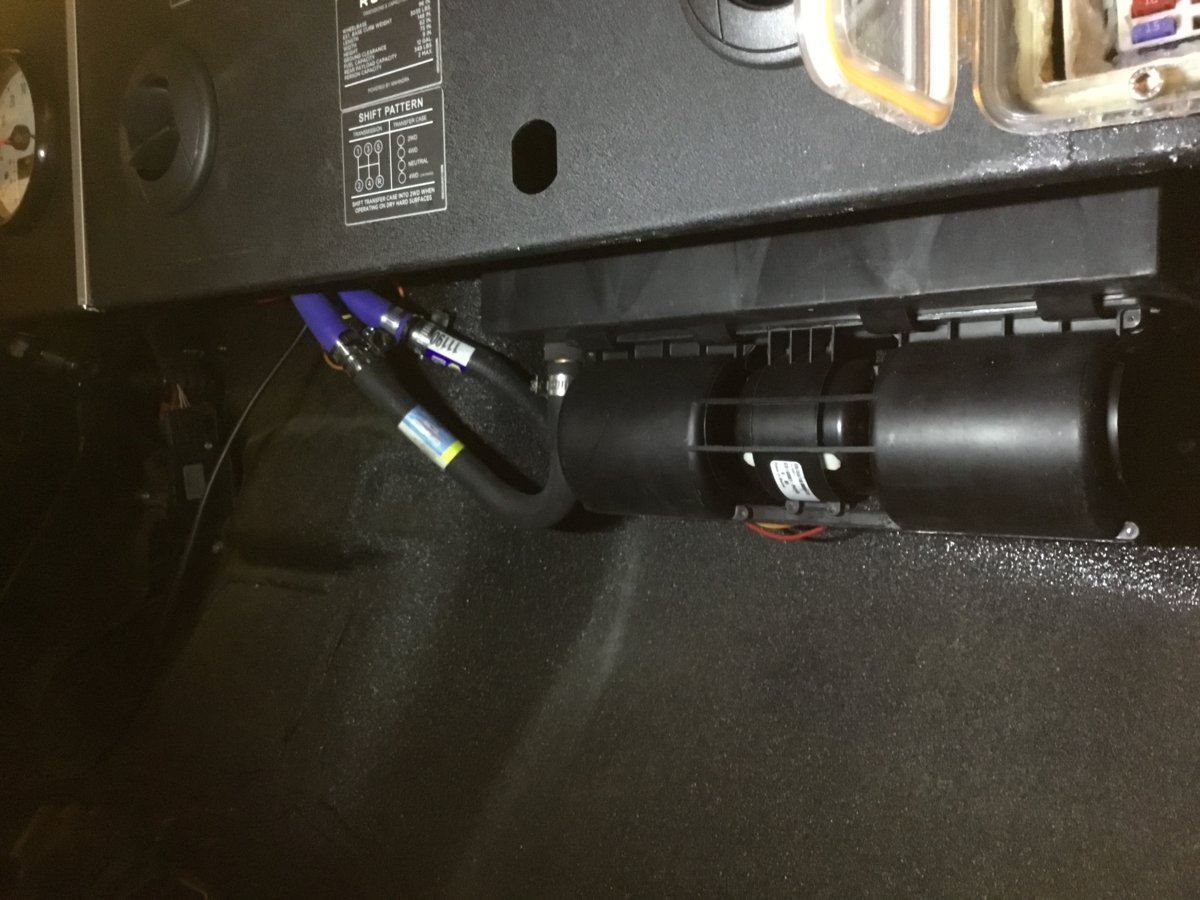

The pics hopefully shows what I did. For me I chose to cut dash in half for ease of install and other future installs. ( I am not young anymore,standing on my head is no longer an option ,! I had to relocate fuse block to front of dash. I used a waterproof cell phone case from Meijers . It’s now painted black. I also used 2 molded heater hose connectors, and factory holes in firewall. By cutting dash in half I was able to chuck up in dril press with hole saw, made for easy,safe drilling.

Eyellgeteven

Eyellgeteven

Member
Joined
Jul 13, 2019
Messages
73
Likes
36
Points
18
Location
Salt Lake City, UT, USA
Roxor Ownership
Roxor Owner
Roxor #
4124

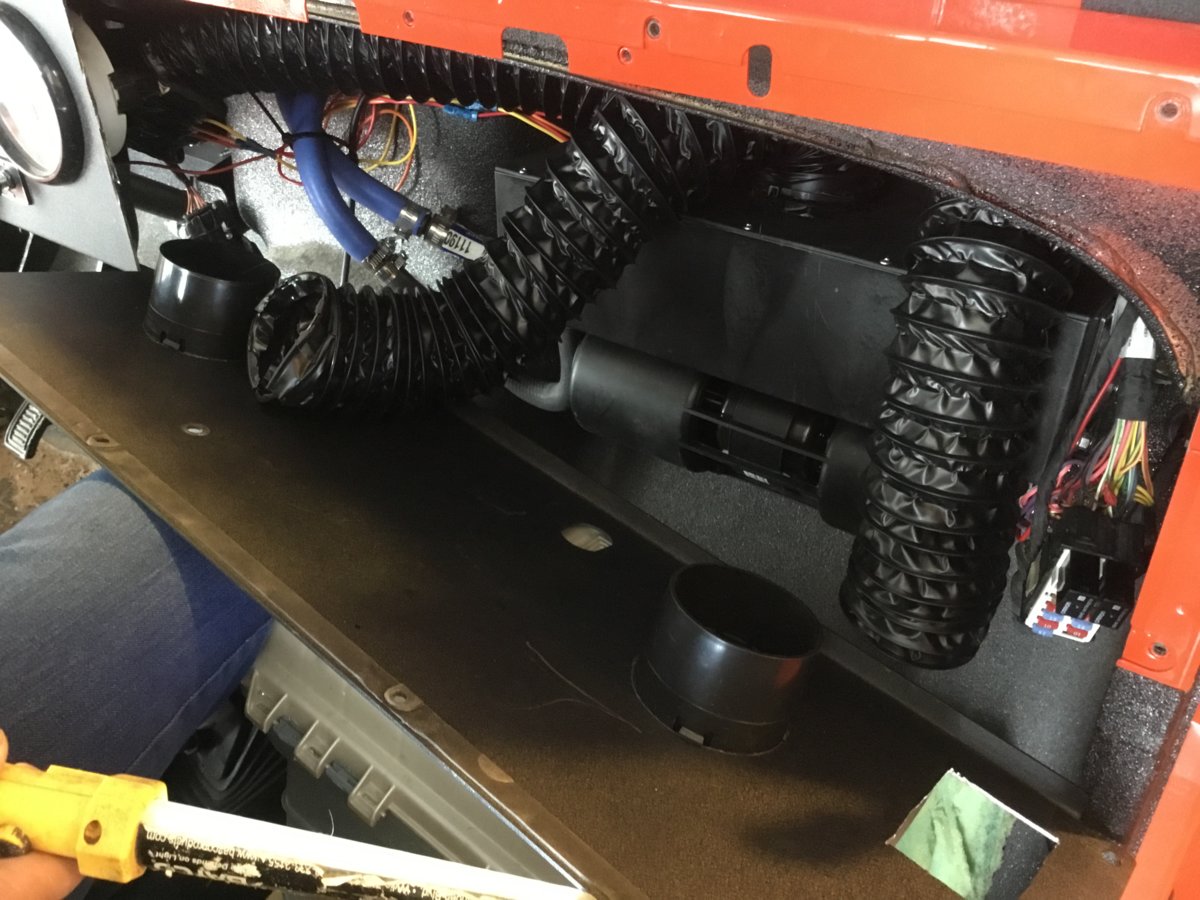

I bought the triple outlet unit, also three speed , fit perfectly under dash. The third outlet I ran the ducting above my feet. Cut 2 holes in dash for directional outlets.
I have this same heater ordered...looks like it fits great.
