No Taillights

[Flatlander]

My stock taillights won’t work. Not sure if anyone else has had this issue. All bulbs work fine for stop, turn, and reverse. I have an XTC signal kit. I unplugged that box and and plugged harnesses back in like it was original and made no difference. All fuses are also fine. Not sure where to go from here.



[Roxasuras]

maybe a loose ground?



[txroadkill]

Fuses under passenger dash?



[Flatlander]

Fuses under passenger dash?

Yes…thank you. Forgot about that other little fuse box. That was the problem.



[txroadkill]

Yes…thank you. Forgot about that other little fuse box. That was the problem.

Glad it worked out for you. That fuse box is always overlooked. Out of sight out of mind.



[CJ2Rox]

Went to watch Pioneer fireworks tonight and apone trying to leave no tail lights one backup light right side and only left signal worked. Had family follow us home. Bulbs all fine, will check fuse box tomorrow



[Roxasuras]

Maybe wiring is frayed? Or fuse?
I miss pioneer day



[CJ2Rox]

You sure do miss alot of things.... Last week a branch got lodged up along drivers side fuel tank. I'm thinking it may have hit them



[CJ2Rox]

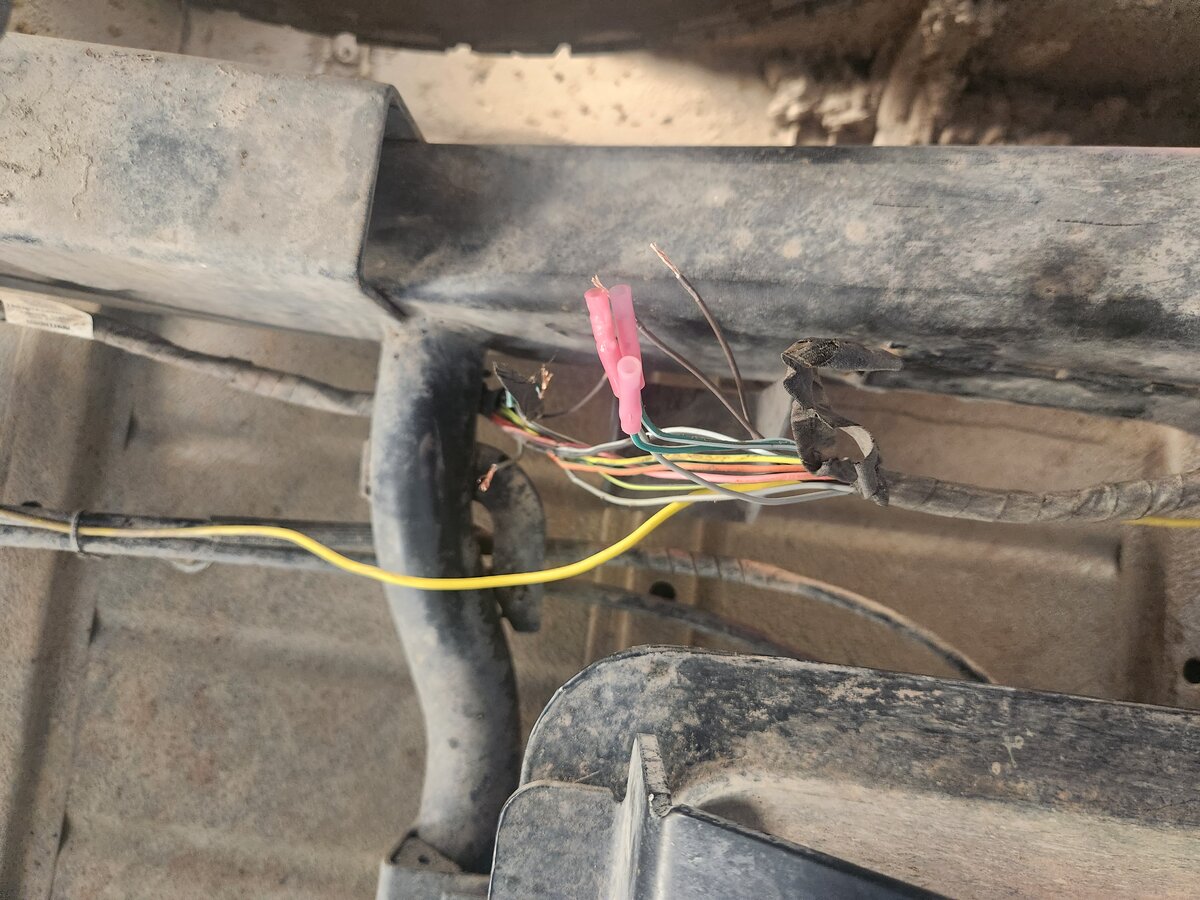

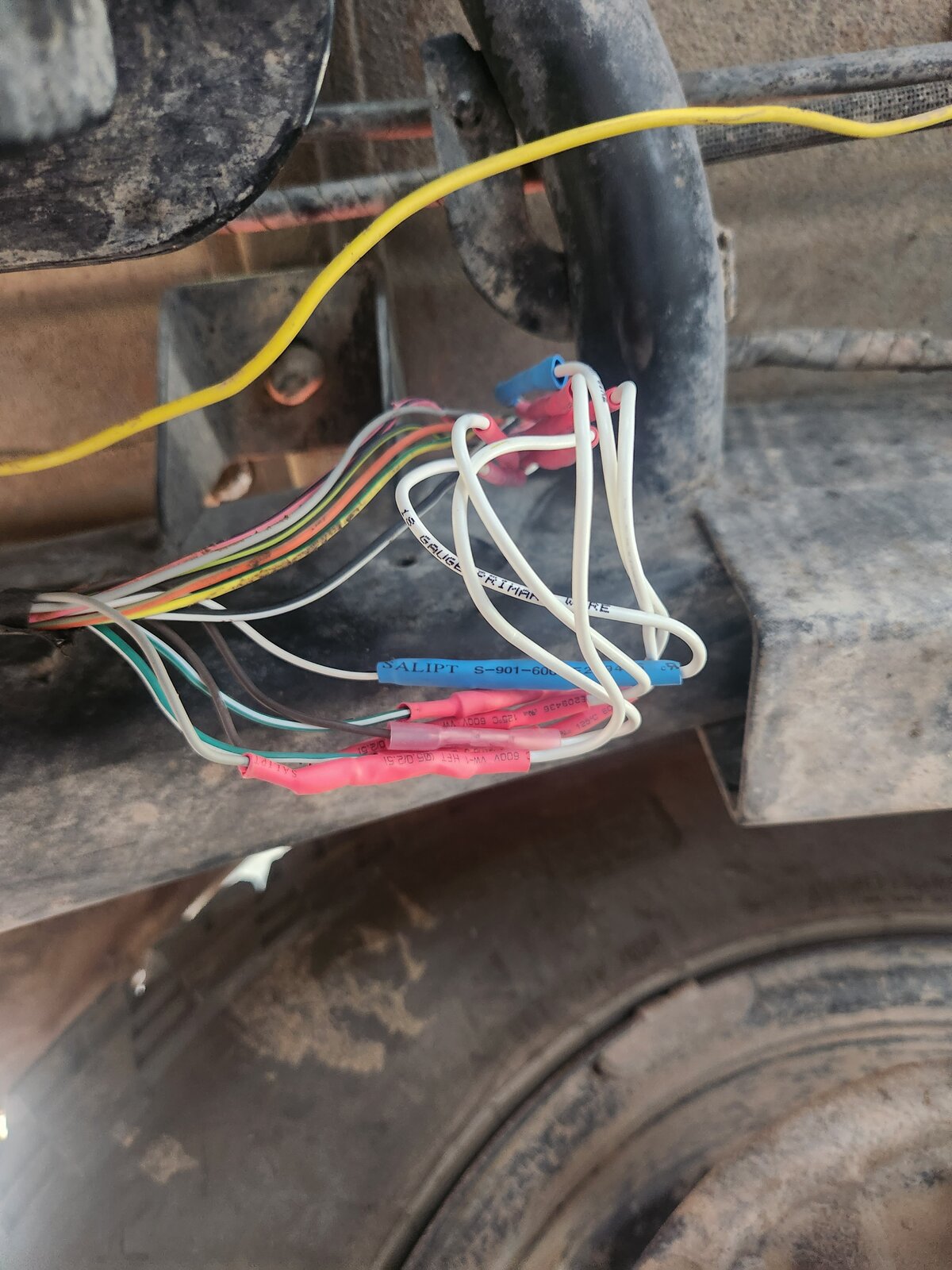

So after a night of thinking what I've done I've realized it must have been the huge log that lodged under there on last week's trail ride. Sure enough I had about 6 broken wires. Now I got everything working on the middle and backup lights. I've never gotten the top lights to work. Does anyone know what it's for. I got brake lights and blinker and running lights working. What color wires run that one. And what's it do on your Roxors?



[Colderweather86]

So after a night of thinking what I've done I've realized it must have been the huge log that lodged under there on last week's trail ride. Sure enough I had about 6 broken wires. Now I got everything working on the middle and backup lights. I've never gotten the top lights to work. Does anyone know what it's for. I got brake lights and blinker and running lights working. What color wires run that one. And what's it do on your Roxors?

View attachment 12574 View attachment 12575

Complete Roxor Electrical manual

Here's the manual, in 4 PDF's. It was too big for 1 or even 2 scans on our Printer/Fax machine at work. Mods/Admins: Can we sticky this

teamroxor.com



[txroadkill]

The top lights are turn signals and aren’t wired in from factory . I spliced into them for my turn signals.



[TomRox]

Correct, top lights are not used
I wired mine in for turn signals too
