2022 Roxor/CJ8 project

[Wm435]

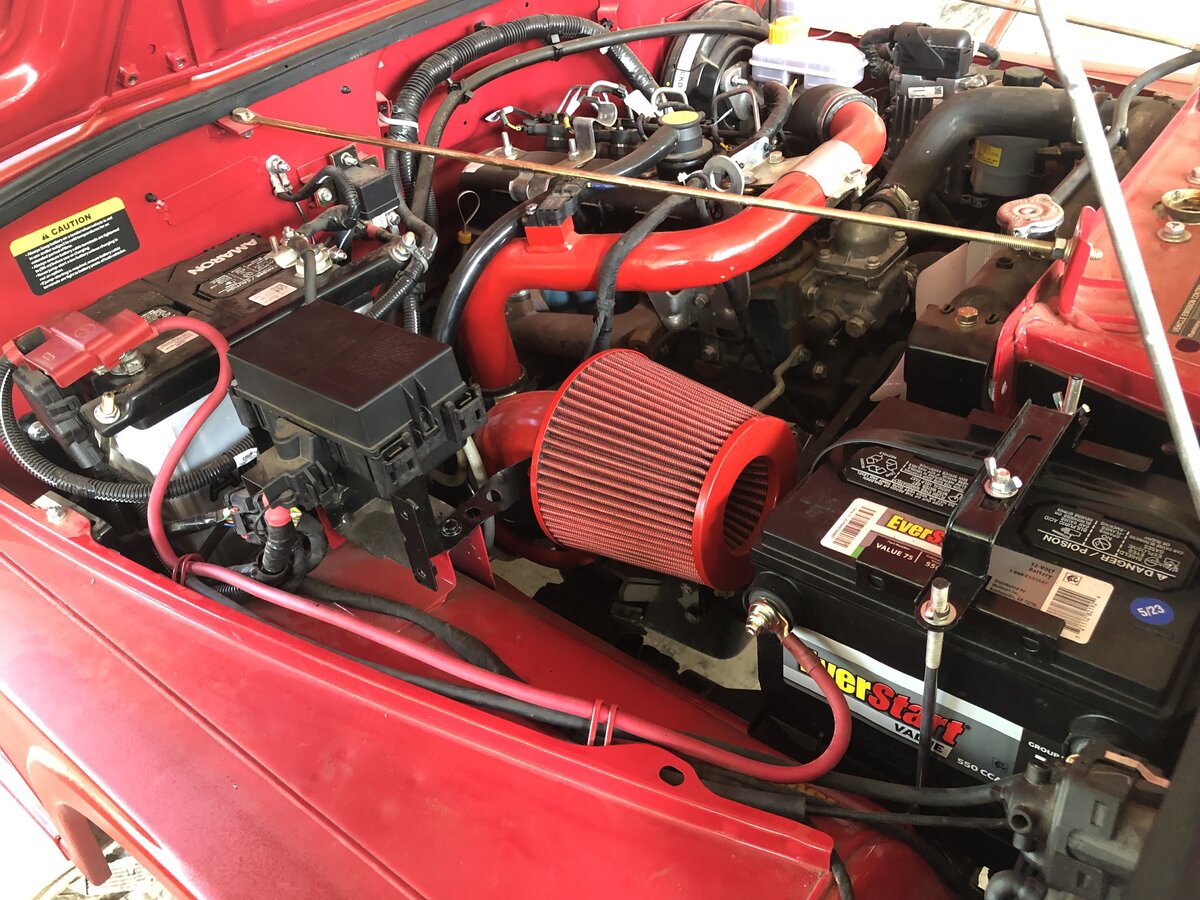

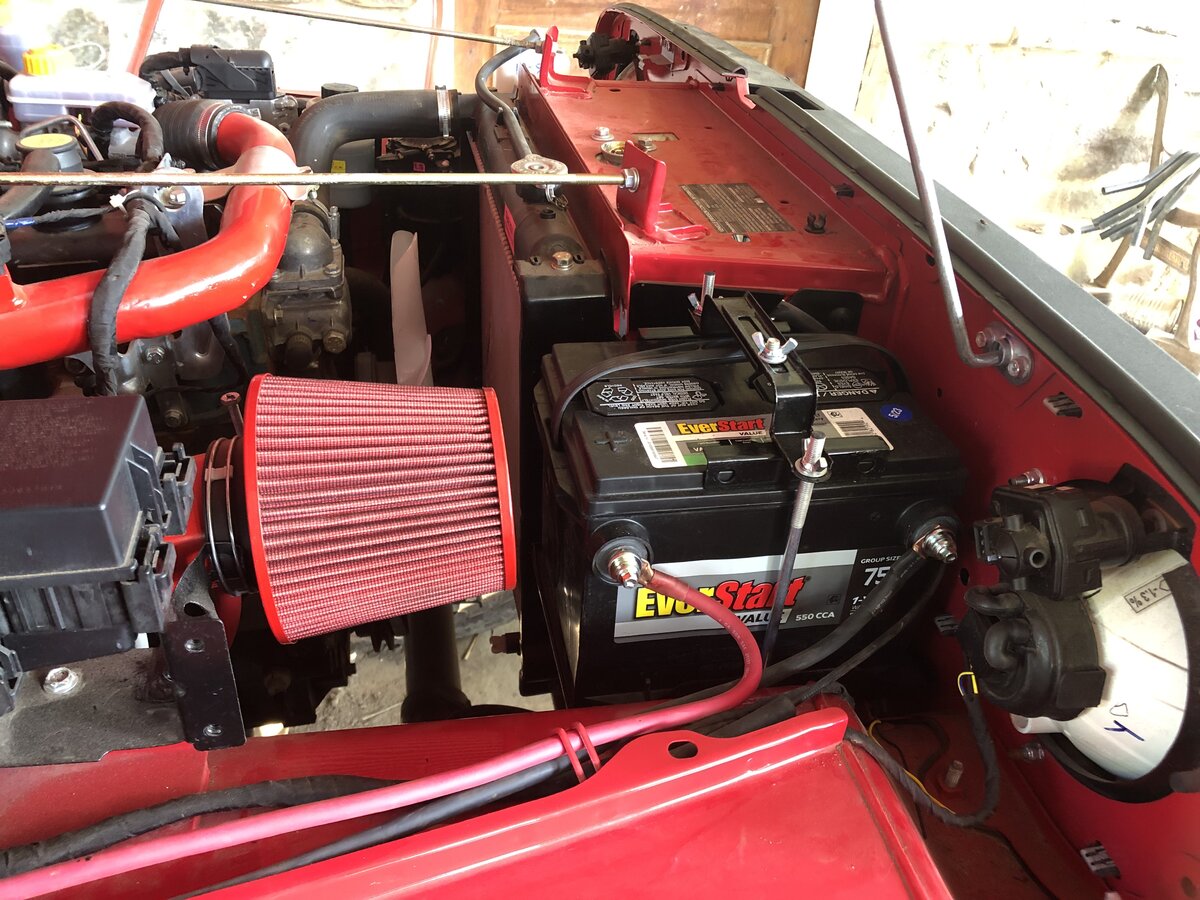

Got the dual battery deal going

View attachment 12381 View attachment 12382

Where did you get that sweet looking airfilter set up? Since that one company stopped making them for Roxors' a few years back we are left to use chevy S-10 filter setups.



[G.Tallant]

Where did you get that sweet looking airfilter set up? Since that one company stopped making them for Roxors' a few years back we are left to use chevy S-10 filter setups.

$26 eBay universal cold air intake. To make it work you cut a 3” piece out of the factory pipe for a connection to the new metal one. I used the clamps off the factory one. Seriously I spent $26 total to do it. I’ll see if I can get a link to it for you



[G.Tallant]

Where did you get that sweet looking airfilter set up? Since that one company stopped making them for Roxors' a few years back we are left to use chevy S-10 filter setups.



[CJ2Rox]

Be careful with these no name airfilters. Get a quality filter for the kit



[Wm435]

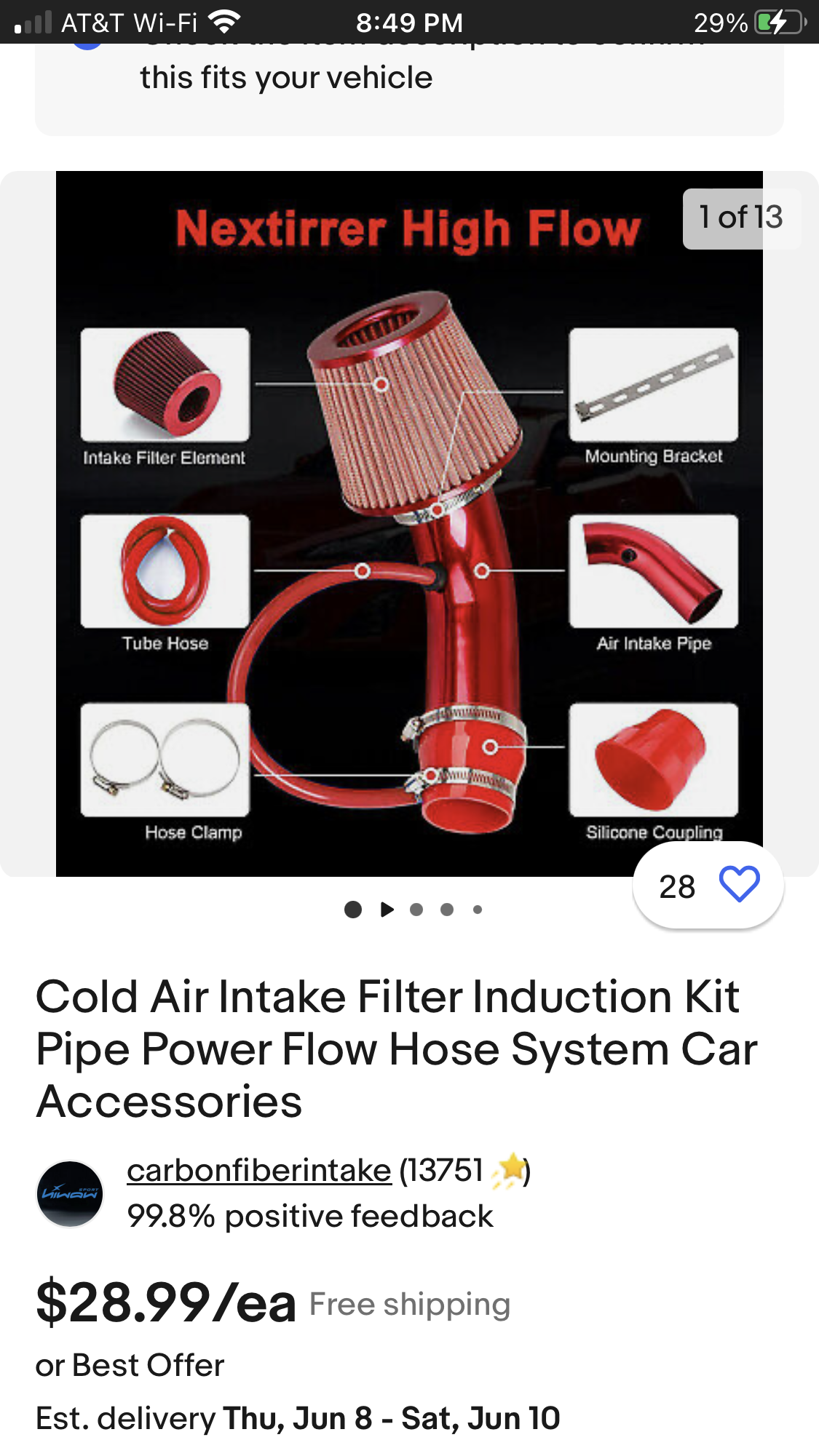

View attachment 12408

Thanks, on further inspection it looks very close to a Chevy s10 set up



[CJ2Rox]

I tried out the filter that came with these kits and one trip down a dirt road and the inside tub had a dust layer. Use the tub but fit a quality filter to it. Don't use K&n get a dry filter. K&N get better at filtering as it get dirtier, that I don't want on my units.



[G.Tallant]

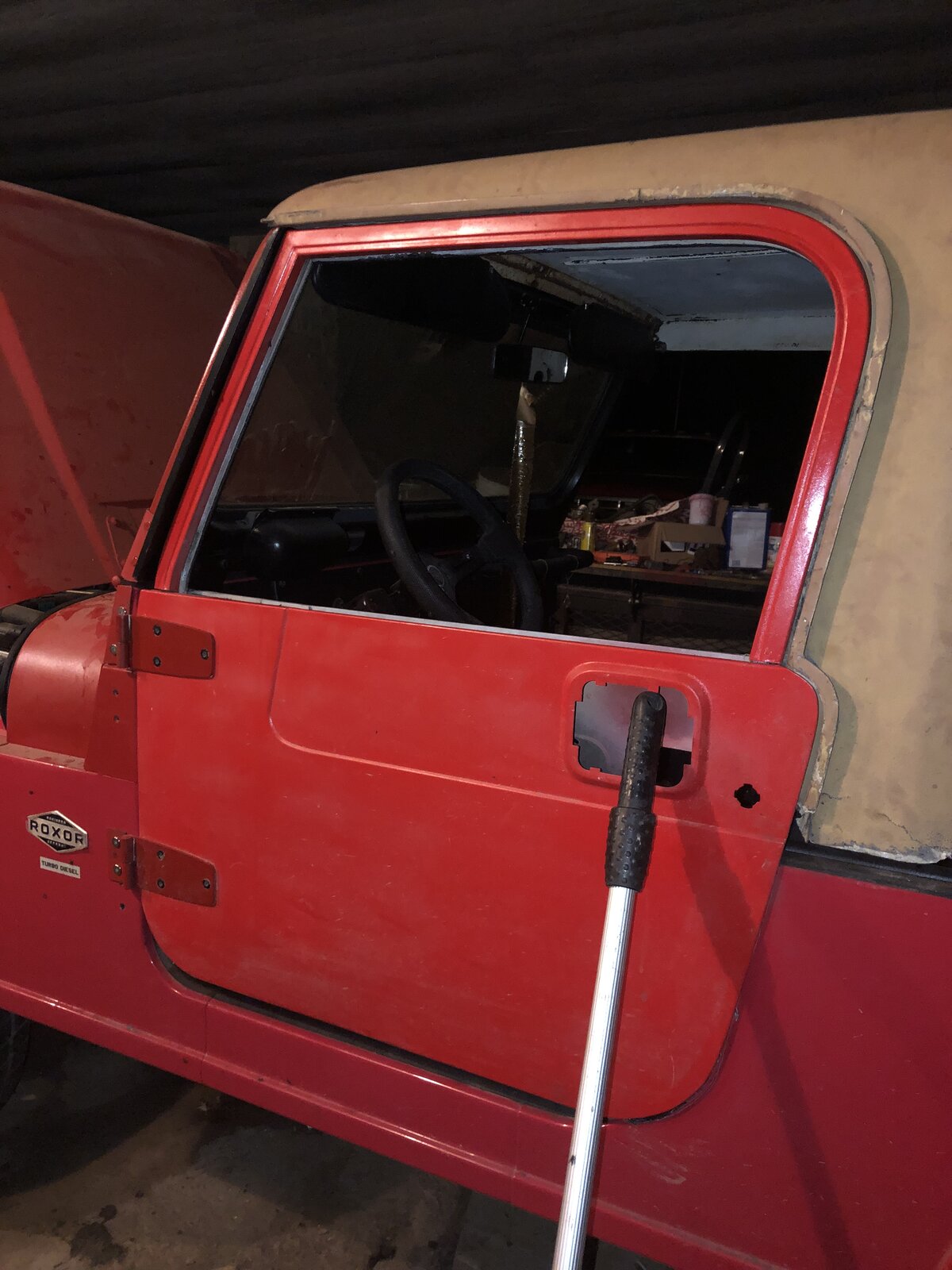

Finally got around to hanging my doors



[G.Tallant]

I got to add a piece onto the bottom of the door. 1 1/4” strip out of 1/8” plate



[G.Tallant]

Got the extension welded across the bottom of the door and painted. Should fit the hole perfect. Pics to come a day or so



[G.Tallant]

I got to add a piece onto the bottom of the door. 1 1/4” strip out of 1/8” plate

View attachment 12576



[G.Tallant]

Don’t try to weld it solid, just multiple tacks. If you don’t you’ll warp the door skin.



[RoxinatorAZ]

Looks great, keep us updated on your progress



[G.Tallant]

Door modified and mounted. Gaps ok.



[G.Tallant]

Update with doors on. Gotta make a bulkhead for behind the seat next. Seems a bit crowded inside. Thinking about cutting the top and adding 4-6”. More leg room and I can put the roll bar in the cab instead of outside the cab like cj8 scramblers are. Don’t judge the paint I’m experimenting with different colors. It will all be the same in the end. Using durabak 18 for paint. It’s like rhino lining without the bumps- smooth. They use it on mostly on boat decks. They’re limited on colors. Only one red and it’s bright & I’ve been tinting it with black trying to get it right or as close to the factory as I can.



[firemanvan]

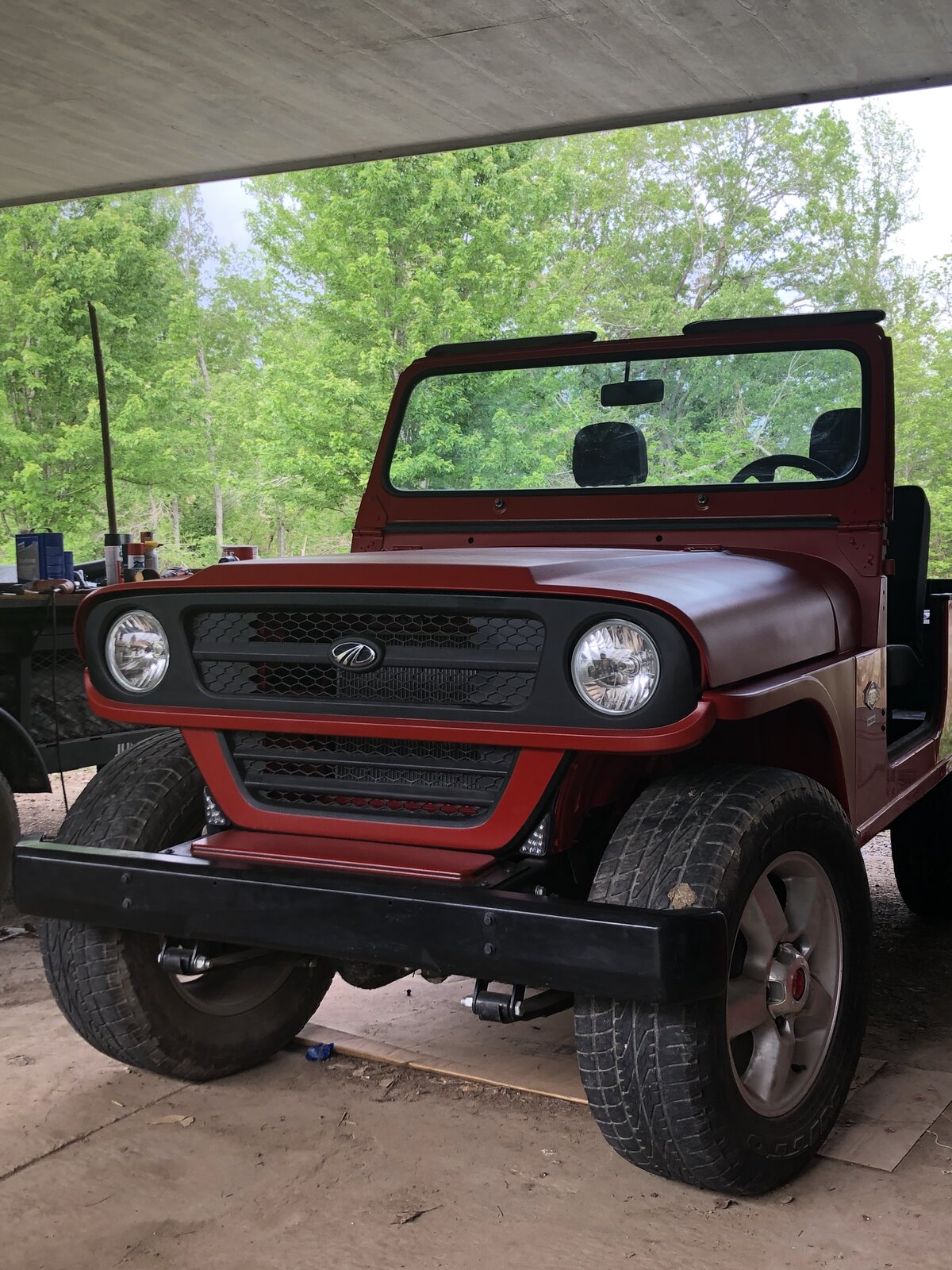

Turn signals & a little paint on the grille. Dozen to hang the cj7 doors

View attachment 12383

Where did you order those turn signals? thanks



[G.Tallant]

Where did you order those turn signals? thanks

eBay. Search universal motorcycle triangle turn signals.



[BenARFCOM]

W

Cj7 windshields not only fit but you get wipers and windshield defrost vents already built in the frame. Plus cj7 doors will mate with the windshield frame all the way to the bottom of the door. That’s where you begin to graft the cj7 door frame profile going across the bottom of the door and up around the back of the door to the flat part the top sets on.

Oops

Should have kept reading...



[GPG]

Cj7 windshields not only fit but you get wipers and windshield defrost vents already built in the frame. Plus cj7 doors will mate with the windshield frame all the way to the bottom of the door. That’s where you begin to graft the cj7 door frame profile going across the bottom of the door and up around the back of the door to the flat part the top sets on.

Hello,

Question on ordering a CJ7 windshield. Does this work with leaving roll cage in place do you think? I want to keep all rops to support the weight if a guy goes over. Also was it a kit or specific year you ordered for?

Thank you



[G.Tallant]

Hello,

Question on ordering a CJ7 windshield. Does this work with leaving roll cage in place do you think? I want to keep all rops to support the weight if a guy goes over. Also was it a kit or specific year you ordered for?

Thank you

Obviously the front of the rops has has to be modified to be left on there. Others have done this….. just look around
