ROXOR fan shroud--anyone install one?

Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
297
Points
43
Location
US
The factory fan shroud has been out for awhile but I haven't noticed any mention of it. The fan shroud would seem like a mandatory item for those of us in the Southwest.

Anyone install one? Any feedback?

Sent from my SM-A505U using Tapatalk

...................
Togo

Togo

Active member
Joined
Mar 17, 2019
Messages
196
Points
28
Location
Hammond, LA, USA
Roxor Ownership
Roxor Owner
Yes, 30 minute job. Incredibly easy. Living in the Deep South with 9-10 months of summer, I could see any negatives.

Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
297
Points
43
Location
US
Yes, 30 minute job. Incredibly easy.
Cool. I will order one up from Sherwood.



Sent from my SM-A505U using Tapatalk

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,154
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
Do you have a link for the shroud?

Tokarev

Tokarev

Active member
Joined
Aug 31, 2019
Messages
297
Points
43
Location
US
Looks like they're not in stock--of course...


Sent from my SM-A505U using Tapatalk

Realtywill

Realtywill

Member
Joined
Jan 29, 2019
Messages
44
Points
18
Location
Folsom, CA, USA
Roxor Ownership
Roxor Owner
Roxor #
6020
You might want to call Sherwood directly. I bought the shroud a couple weeks ago and it arrived damaged (it had a defect and was cracked at the seam). I looked on Sherwoods site and it said sold out. I called and they had another on it’s way to me within a couple days.


Sent from my iPhone using Tapatalk

S

SMF

Active member
Lifetime Member
Joined
Sep 2, 2018
Messages
111
Points
28
Location
North Carolina, USA
Roxor Ownership
Roxor Owner
Roxor #
800
Simple job, no drilling, four bolts to install, plus some other bolts to temporarily remove to help get brackets and shroud in place. It has got to improve cooling efficiency and it definitely does help keeping hay/grass and weed debris off the radiator. 30 minutes if you are organized and know what you're doing. By the time I get the right tools together and find the pieces I drop, takes me a bit longer, but no big deal and a nice improvement.

pmgia

pmgia

New member
Joined
Jul 28, 2020
Messages
29
Points
3
Location
Florida City, FL, USA
Roxor Ownership
Roxor Owner
Roxor #
3815
I couldn’t find any directions for it on Roxor’s page or anywhere else. It comes with the shroud, two identical brackets four bolts/screws and 4 slip on nuts. The brackets only mount one way on each side, where it mounts to the shroud is offset Up/down on one side. I took the air intake off so I could fit it behind the radiator. The nuts slip onto the brackets so the bolt is forward. I did one side at a time with the shroud in place. Just remove four radiator bolts and reuse them to hold the brackets. Once everything was together I tighten it up and put the intake back on.

Roxasuras

Roxasuras

Well-known member
Lifetime Member
Joined
Mar 10, 2019
Messages
1,154
Points
113
Location
Bountiful, Utah, USA
Roxor Ownership
Roxor Owner
Roxor #
2507
Where did you purchase it from

oldgreybull

oldgreybull

Member
Lifetime Member
Joined
Feb 8, 2020
Messages
86
Points
18
Location
Hernando, Fl USA
Roxor Ownership
Roxor Owner
Roxor #
5136
I'm getting ready to do mine; can someone send a picture of one installed?

pmgia

pmgia

New member
Joined
Jul 28, 2020
Messages
29
Points
3
Location
Florida City, FL, USA
Roxor Ownership
Roxor Owner
Roxor #
3815

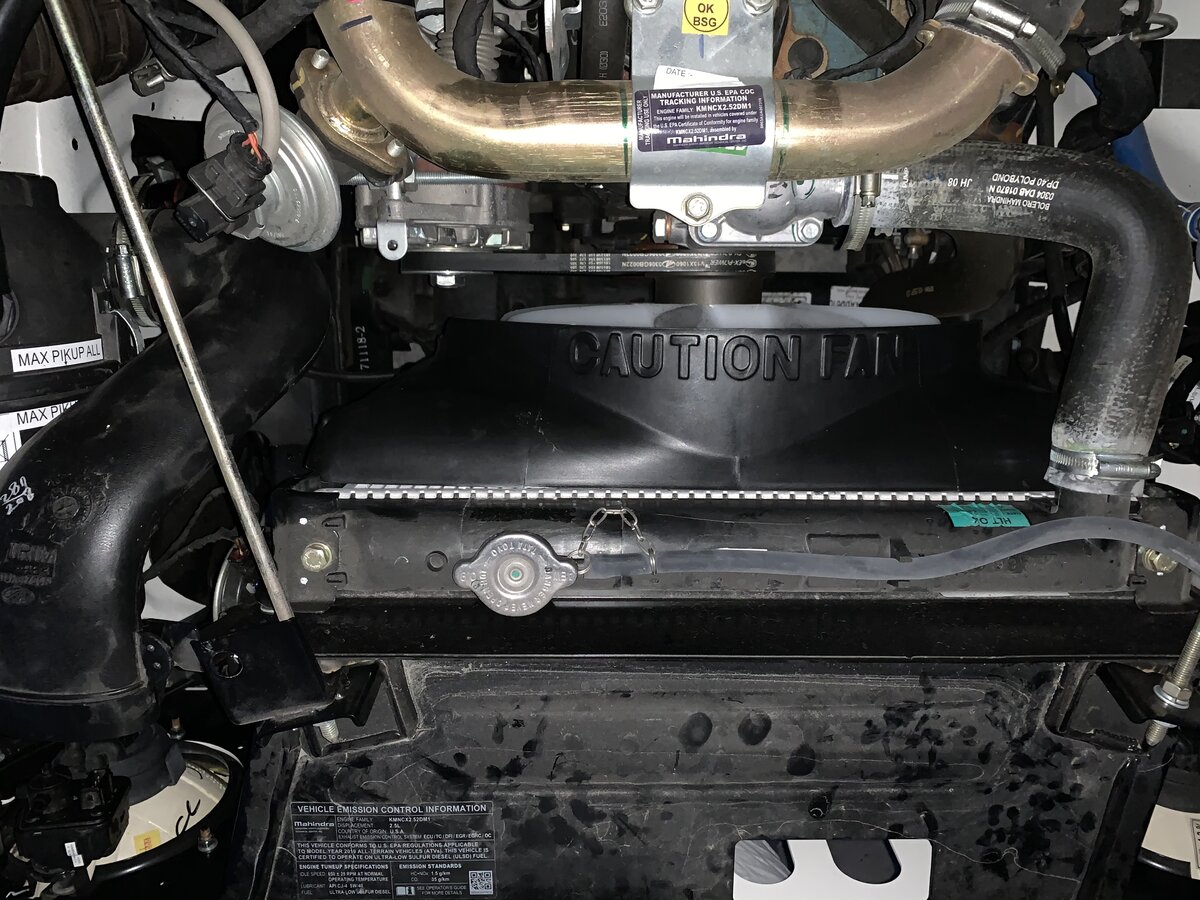

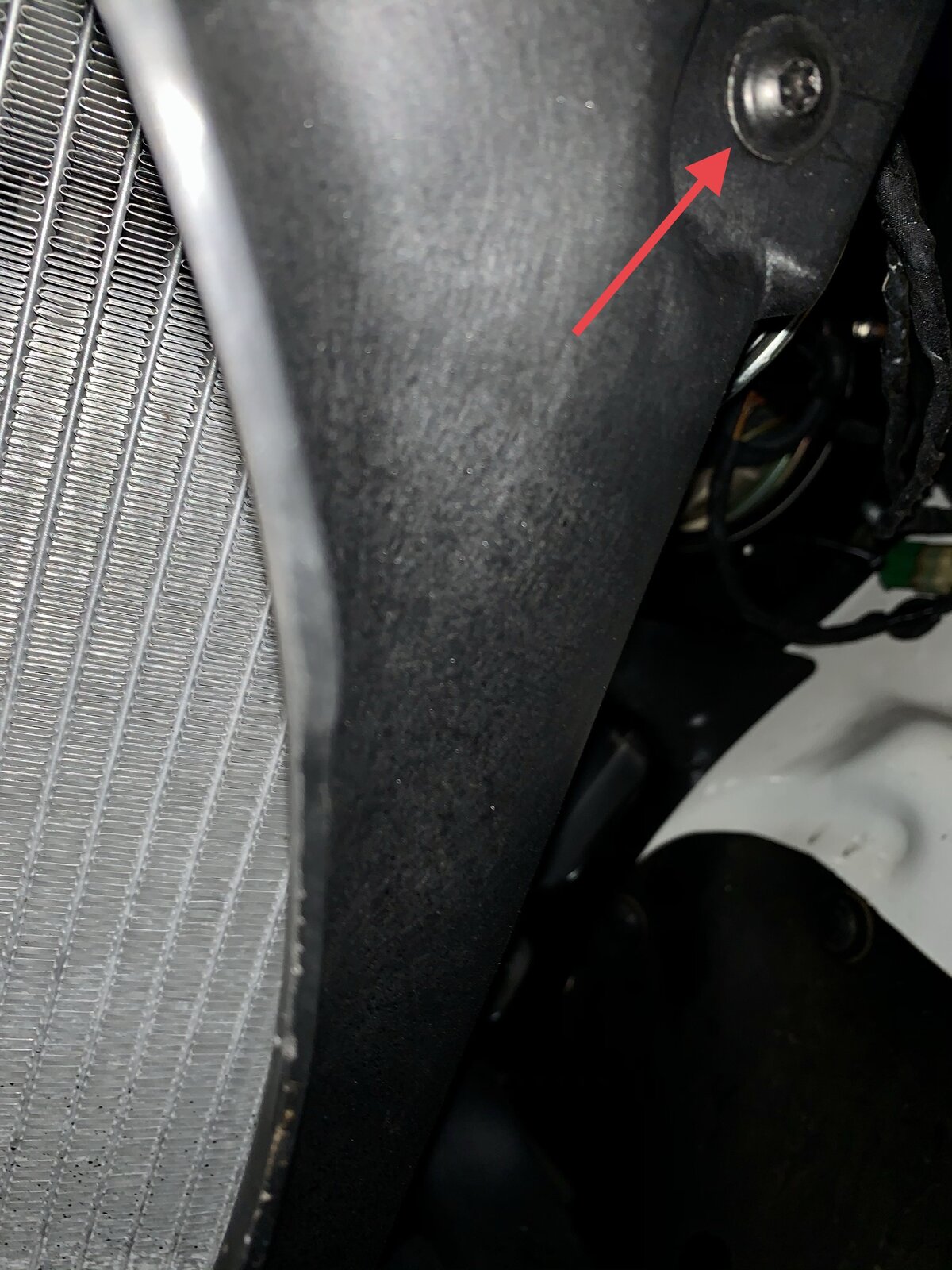

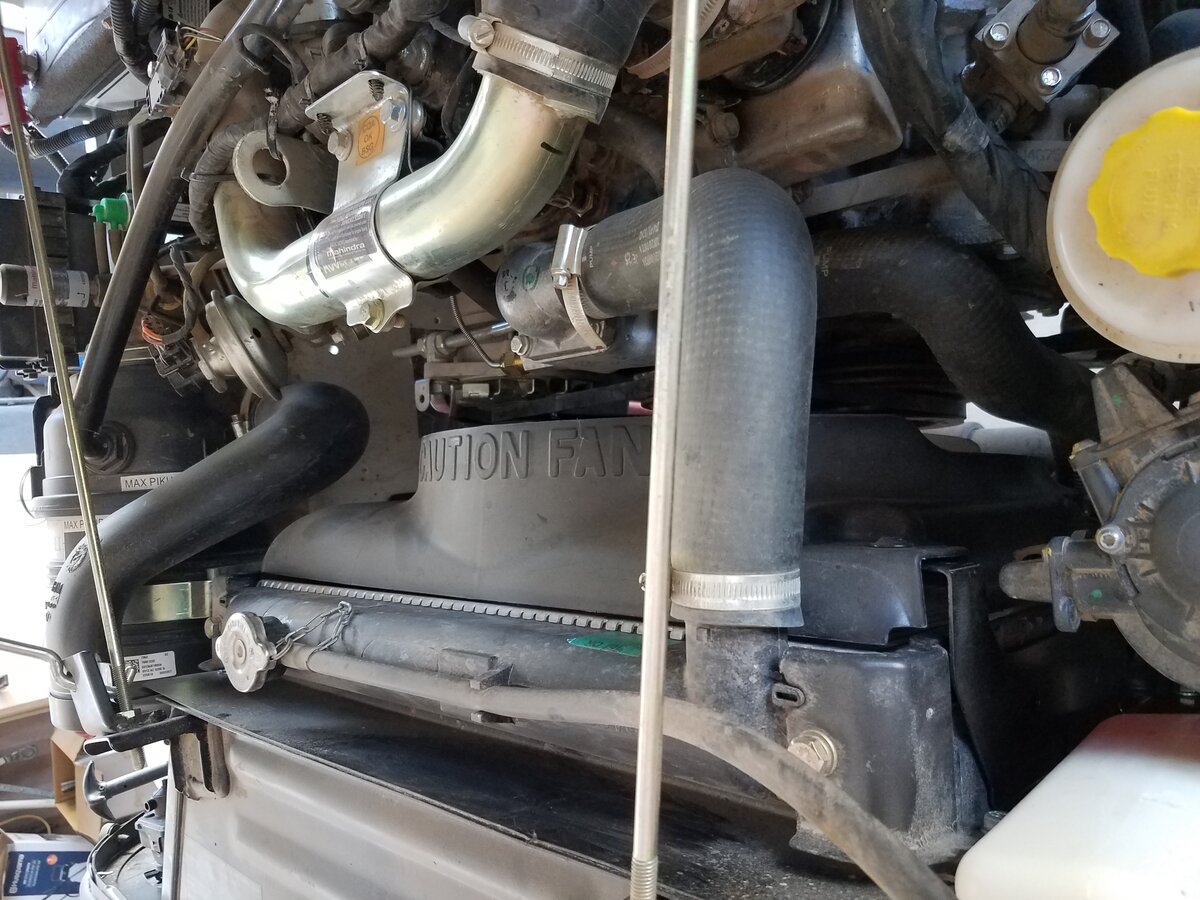

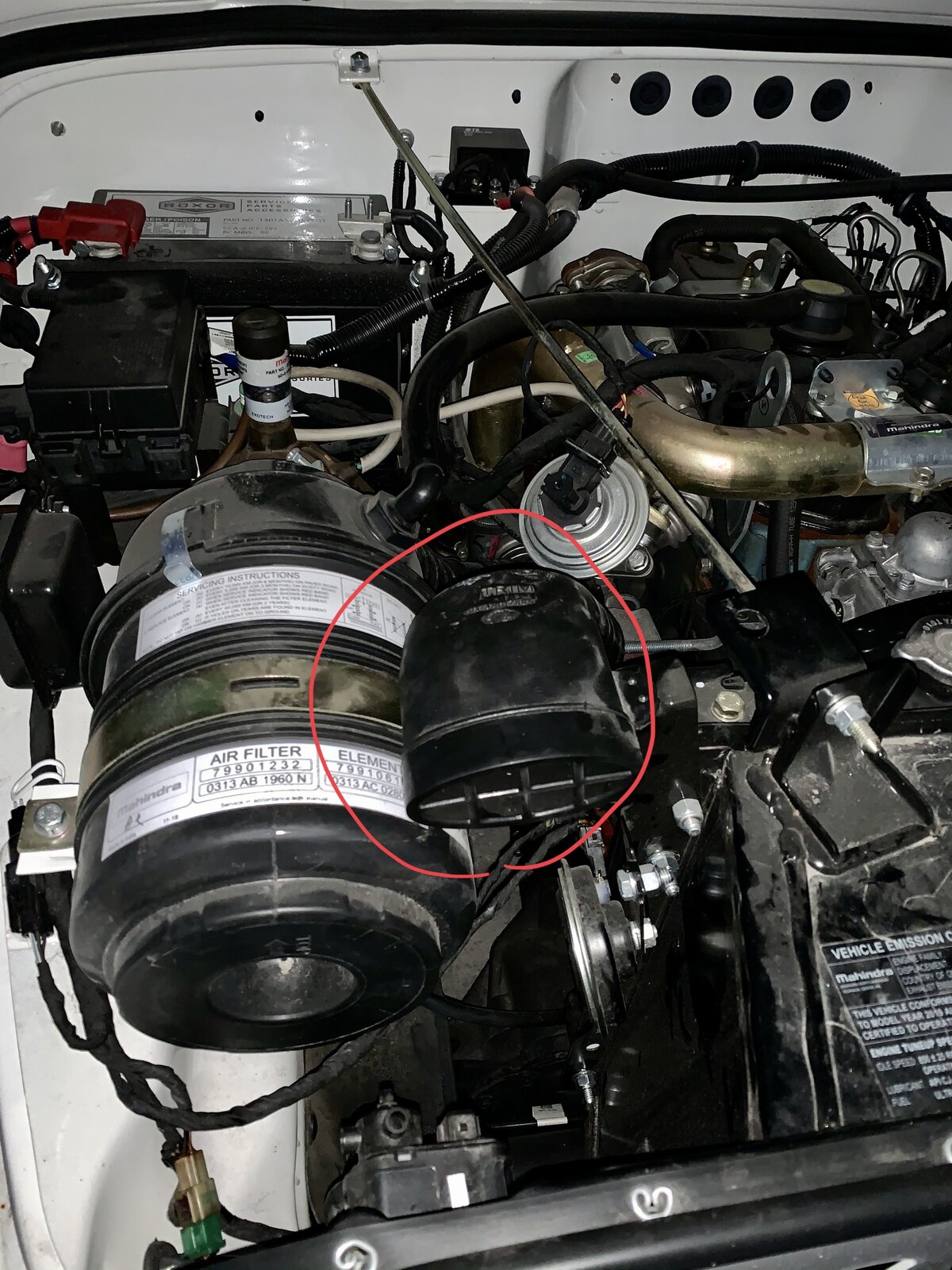

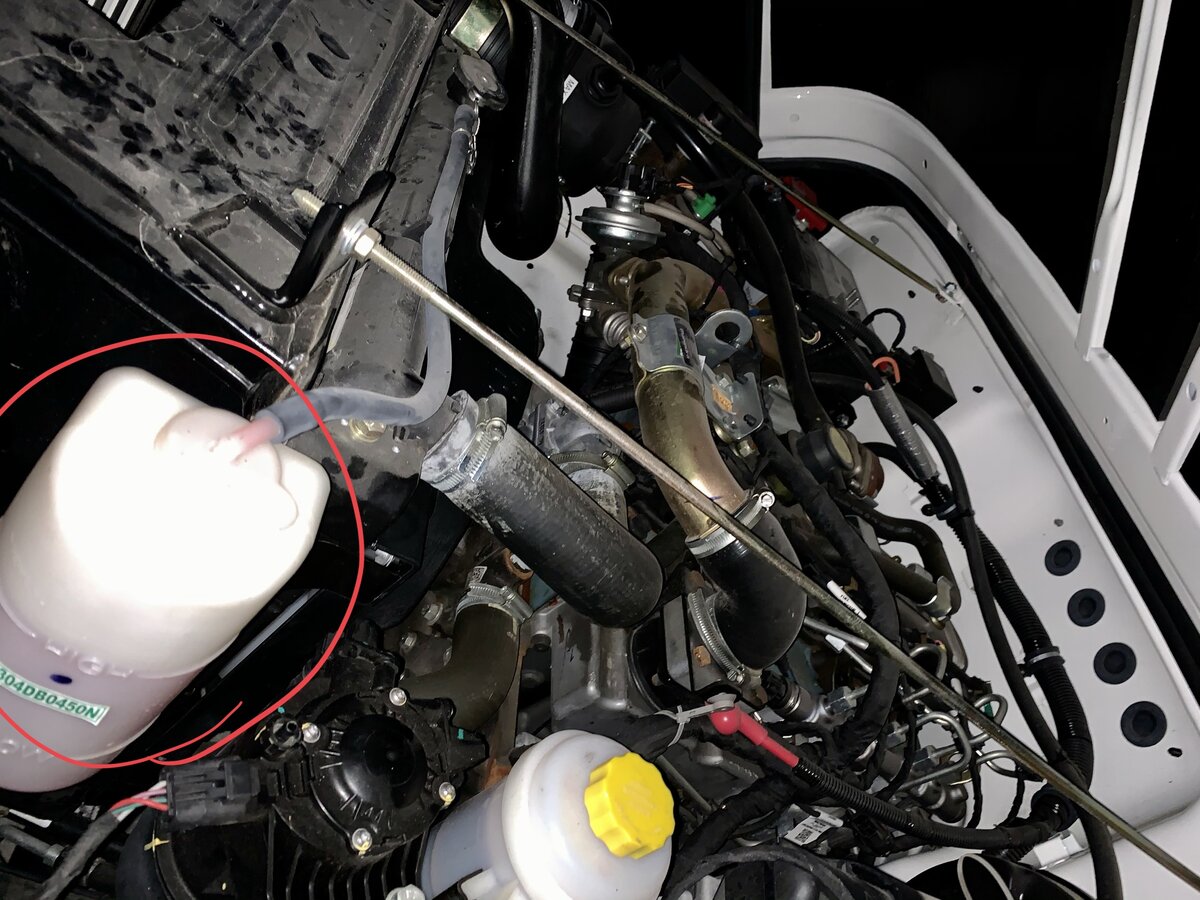

Hope it helps, remove the two items circled in red makes it easier, the air intake out of the way makes it best to slide in the shroud. I did not disconnect the coolant hose!

39A39336-7549-419E-9F50-B3C75162F61A.jpeg 63ADD291-7D1D-4E9F-934B-E8DB7F39A30B.jpeg 77BCA2C0-DD26-4F4A-AF9E-C6752E05E420.jpeg 6FBED1F9-917D-49E9-A9C1-A067023B4E64.jpeg

39A39336-7549-419E-9F50-B3C75162F61A.jpeg 63ADD291-7D1D-4E9F-934B-E8DB7F39A30B.jpeg 77BCA2C0-DD26-4F4A-AF9E-C6752E05E420.jpeg 6FBED1F9-917D-49E9-A9C1-A067023B4E64.jpeg

oldgreybull

oldgreybull

Member
Lifetime Member
Joined
Feb 8, 2020
Messages
86
Points
18
Location
Hernando, Fl USA
Roxor Ownership
Roxor Owner
Roxor #
5136
Realtywill

Realtywill

Member
Joined
Jan 29, 2019
Messages
44
Points
18
Location
Folsom, CA, USA
Roxor Ownership
Roxor Owner
Roxor #
6020
Any more details someone can provide on how you get the shroud in without messing up the radiator? Do you install it from the side or top?



Sent from my iPhone using Tapatalk

Top
