TheFurnace
Member

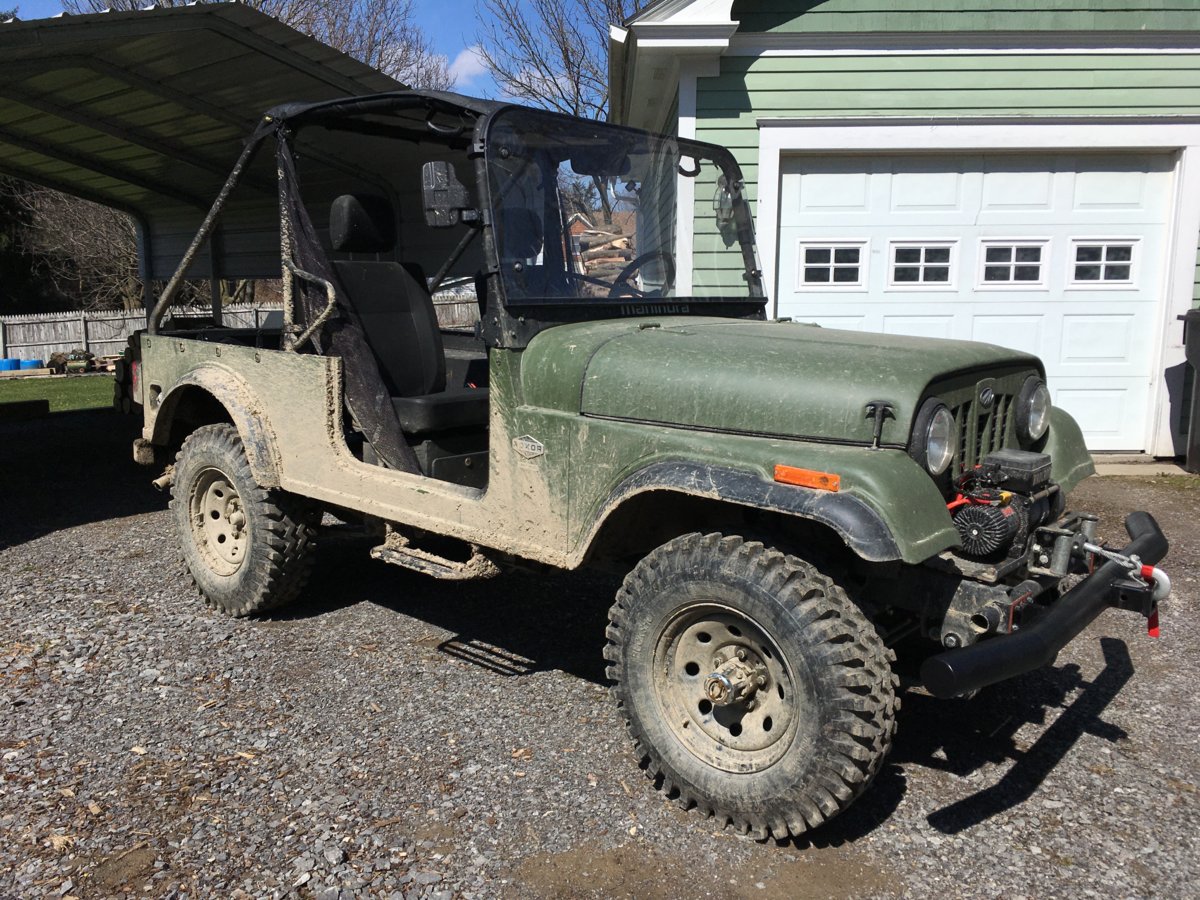

Finally got around to putting the shackles on that I ordered from you...a simple, inexpensive, awesome upgrade!
Last edited:
ooooooooooo
Thanks! I honestly believe this is the perfect height for the Roxor...
Did you extend brake line?
I believe Max A say’s not needed to extend unless disconnecting the sway bar...
I’m getting ready to install front add a leaf and Max A 1.5” front shackle.
Double checking......
With the add a leaf you may need brake lines. I have never tested it with the add a leaf but many others have. Maybe one of them can chime in.
Sent from my iPad using Tapatalk
I installed the Explorer Pro Comp 13120
I removed them a couple months later because it stiffened up the front so much. The ride quality was Jarring with these.
Lift Shackles
- Thread starter Max A.
- Start date
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
Love it!
Sent from my iPad using Tapatalk
Sent from my iPad using Tapatalk
TheFurnace
Member
Thanks! I honestly believe this is the perfect height for the Roxor...
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
Longer shocks won’t do much for you. The shocks do not limit travel if your only running this shackle kit. The design of the leaf limits the flex not the shock.
Let’s not get off topic here. This is in the for sale area for the shackle kit. The brake line question warrants a thread of its own.
*For those reading this. You do not need longer brake lines with this kit unless you plan on removing the sway bar offroad.
Sent from my iPad using Tapatalk
Let’s not get off topic here. This is in the for sale area for the shackle kit. The brake line question warrants a thread of its own.
*For those reading this. You do not need longer brake lines with this kit unless you plan on removing the sway bar offroad.
Sent from my iPad using Tapatalk
JDM
New member
Max A. I need some help! I have 1.5 inch shackle lift on the front. You can see in the pic I have a ton of weight center to front. Front leaves are almost parallel.
Ride is smooth, but of course it doesn’t take a lot to bottom it out. What do you suggest to fix the front without raising it high and picking up a rough ride?? Back has no shackle lift and does bottom out when fully loaded.
I like your thoughts on keeping the front lower no matter what you do. I can tell you maintaining that ratio Is a huge plus in maintaining control and no roll over with my high rack.
What do you suggest?
Ride is smooth, but of course it doesn’t take a lot to bottom it out. What do you suggest to fix the front without raising it high and picking up a rough ride?? Back has no shackle lift and does bottom out when fully loaded.
I like your thoughts on keeping the front lower no matter what you do. I can tell you maintaining that ratio Is a huge plus in maintaining control and no roll over with my high rack.
What do you suggest?
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
[mention]JDM [/mention] I’d do an add a leaf up front.
Sent from my iPad using Tapatalk
Sent from my iPad using Tapatalk
Bfree
Member
I have Max A.'s front and rear shackles installed and I also have a 2.5" Add a leaf by pro comp up front. It sits perfect, but it did stiffen the ride a bit, not bad but enough I could tell the difference.
- Joined
- Feb 9, 2020
- Messages
- 35
- Points
- 18
- Location
- Groveland, NY, USA
- Roxor #
- 4148
- Roxor Ownership
- Roxor Owner
Just installed Max A's rear shackles today to go with an RC leveling kit up front. Very pleased with the outcome.
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
Did you extend brake line?
I believe Max A say’s not needed to extend unless disconnecting the sway bar...
I’m getting ready to install front add a leaf and Max A 1.5” front shackle.
Double checking......
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
With the add a leaf you may need brake lines. I have never tested it with the add a leaf but many others have. Maybe one of them can chime in.
Sent from my iPad using Tapatalk
Bfree
Member
No, I haven't added the brake lines to mine but I do intend to in the future! I have also removed the sway bar and for that reason I will be adding longer brake lines.
mickeybobs
Active member
What add a leaf do i need for 1 1/2 lift for front ? any one have a part number? is it like for a cj5 -7
DAMCars
Active member
- Joined
- Jun 29, 2019
- Messages
- 122
- Points
- 28
- Location
- Cave Creek, AZ, USA
- Roxor #
- 03580
- Roxor Ownership
- Roxor Owner
I installed the Explorer Pro Comp 13120
I removed them a couple months later because it stiffened up the front so much. The ride quality was Jarring with these.
mickeybobs
Active member
Thanks ...I wont go that way then ...I want to use MAXs rear shackel on the front ..not as much lift, but thats ok as i use my Roxor on the street .I thought Maxs curved shackel would be too much and i dont want to mess with the rear at all ..will the rears on front work ok with out having poor or floating steering ? ....thanks again
- Joined
- Apr 20, 2020
- Messages
- 797
- Points
- 63
- Location
- Palmer, AK, USA
- Roxor #
- 7262
- Roxor Ownership
- Roxor Owner
None, unless you do a spring over conversion. Only way to get any lift is with lift springs with more arch, or shackles.
mickeybobs
Active member
So adding a 1 1/2 inch front shackel will really add no lift to the front of Roxor.?
txroadkill
Well-known member
- Joined
- Oct 28, 2018
- Messages
- 1,335
- Points
- 113
- Location
- Texas
- Roxor #
- 2498
- Roxor Ownership
- Roxor Owner
Measure your factory shackle length. Then whatever distance the new one is that is longer cut it in half. That will be the amount of lift the new shackles will give you. If your stock shackle is 4” long and the new ones are 5” you will net 1/2” of lift.
- Joined
- Apr 20, 2020
- Messages
- 797
- Points
- 63
- Location
- Palmer, AK, USA
- Roxor #
- 7262
- Roxor Ownership
- Roxor Owner
A shackle will. You asked about an add a leaf.
Max A.
Well-known member
- Joined
- Nov 4, 2019
- Messages
- 644
- Points
- 93
- Location
- Baltimore, MD, USA
- Roxor #
- 00168
- Roxor Ownership
- Roxor Owner
You will have zero wandering issues in the front with my front shackles. I have sold over 250 sets of fronts and many of them are on highway driven roxors.
The shackle does more then lift. It also adds leverage to the spring as it compresses causing the suspension on the roxor to feel slightly more supple because as the shackle swings it multiplies force and allows more movement of that spring.
When I made the very first set of shackles for my own roxor i calculated what length shackle would optimize the suspension without throwing the caster angle off. The amount of lift achieved was just a byproduct. I market them as 1.5 lift because that is what it ends up being.
Sent from my iPad using Tapatalk
The shackle does more then lift. It also adds leverage to the spring as it compresses causing the suspension on the roxor to feel slightly more supple because as the shackle swings it multiplies force and allows more movement of that spring.
When I made the very first set of shackles for my own roxor i calculated what length shackle would optimize the suspension without throwing the caster angle off. The amount of lift achieved was just a byproduct. I market them as 1.5 lift because that is what it ends up being.
Sent from my iPad using Tapatalk
