No case spreader is needed. I use a brass hammer and love tap the bearing races and carrier until i can install the bearing caps, at that point i tighten all four bolts keeping the carrier as even as possible. But you will need a slide hammer with the right attachment to remove the axle and the right puller to remove the wheel hubs. if you go to the Roxor site, all the way to the bottom you can find installation instructions. they will show you the puller and slide hammer.


mike_d

New member
Lifetime Member
Joined
Oct 16, 2018
Messages
24
Points
3
Location
Soo, Michigan
Roxor Ownership
Roxor Owner
Roxor #
2720
If you’re going to install just one set of lunchbox/Spartan lockers, would it be best to install on the front or rear?


Haerterich

Active member
Joined
Sep 19, 2018
Messages
130
Points
43
Location
Caledonia, IL, USA
Roxor Ownership
Roxor Owner
Roxor #
738
If you’re going to install just one set of lunchbox/Spartan lockers, would it be best to install on the front or rear?
That's not an easy question. Putting it the front will increase traction better because the weight of motor is over axle however it will only help when in 4x4 drive. You would also want lockouts. Putting in the rear the additional traction is always there for you. I myself have always added LSD's, lockers, to the rear first. I would suggest the rear.
If you’re going to install just one set of lunchbox/Spartan lockers, would it be best to install on the front or rear?

B

Bister

Guest
Mine is going in the back next Tuesday and hubs on the front. I might add the lockers to the front at a later date. I figure if its in the back, it will engage and get me out of trouble before I get in, even if you're in 2 wheel drive; especially pushing snow. I can see this being the case for me and not even shifting into 4x4.


mike_d

New member
Lifetime Member
Joined
Oct 16, 2018
Messages
24
Points
3
Location
Soo, Michigan
Roxor Ownership
Roxor Owner
Roxor #
2720
I’ve got hubs for the front as well, since I like the idea of towing for short distances. Do you have to do anything to engage/disengage the Spartans?

Sorry if this is really basic stuff guys, I’m a rookie when it comes to this...

B

Bister

Guest
I’ve got hubs for the front as well, since I like the idea of towing for short distances. Do you have to do anything to engage/disengage the Spartans?

Sorry if this is really basic stuff guys, I’m a rookie when it comes to this...
Check out this YouTube video. It explains it pretty good. There are more on there also, watch a few and things start to makes sense. Doesn’t really matter the brand. They are referred to as “lunch box lockers” also.



RoxorSE

Member
Joined
Oct 28, 2018
Messages
41
Points
18
Location
Lexington, NC, USA
Roxor Ownership
Roxor Owner
Roxor #
SE #052
If you’re going to install just one set of lunchbox/Spartan lockers, would it be best to install on the front or rear?
Installing a locker on the front differential does also give the ability to steer out of a rut etc. and get going in a new direction.


one2doo

Member
Lifetime Member
Joined
Nov 18, 2018
Messages
65
Points
18
Location
East TN
Roxor Ownership
Roxor Owner
Roxor #
181
Ox called me Friday and said they have my lockers built and will ship out first of next week. Went with the manual ones.


JonBoyK

Member
Founding Member
Joined
May 2, 2018
Messages
42
Points
18
Location
Texas
Roxor Ownership
Roxor Owner
Ox called me Friday and said they have my lockers built and will ship out first of next week. Went with the manual ones.
Any price difference directly from ox?


one2doo

Member
Lifetime Member
Joined
Nov 18, 2018
Messages
65
Points
18
Location
East TN
Roxor Ownership
Roxor Owner
Roxor #
181
Any price difference directly from ox?
I paid 950 not 1700 each plus cables. You have to get electric ones through Roxor they have a deal with them. I wanted the manual ones anyway.


DEKirk2

Member
Joined
Oct 29, 2018
Messages
66
Points
8
Location
Dammeron Valley, Utah, USA
Roxor Ownership
Roxor Owner
Can anyone tell me what I can expect to pay to have a locker installed by the dealer or other mechanic? im afraid the cost of the parts is the least of my concerns...


JonBoyK

Member
Founding Member
Joined
May 2, 2018
Messages
42
Points
18
Location
Texas
Roxor Ownership
Roxor Owner
I paid 950 not 1700 each plus cables. You have to get electric ones through Roxor they have a deal with them. I wanted the manual ones anyway.
Let me know where they install the actuator.


44Bogger

Member
Joined
Oct 2, 2018
Messages
68
Points
18
Location
DeRidder, LA, USA
Roxor Ownership
Roxor Owner
is the spacer a new part that comes with the locker? or more likely something Ill find when I take the spider gears out?

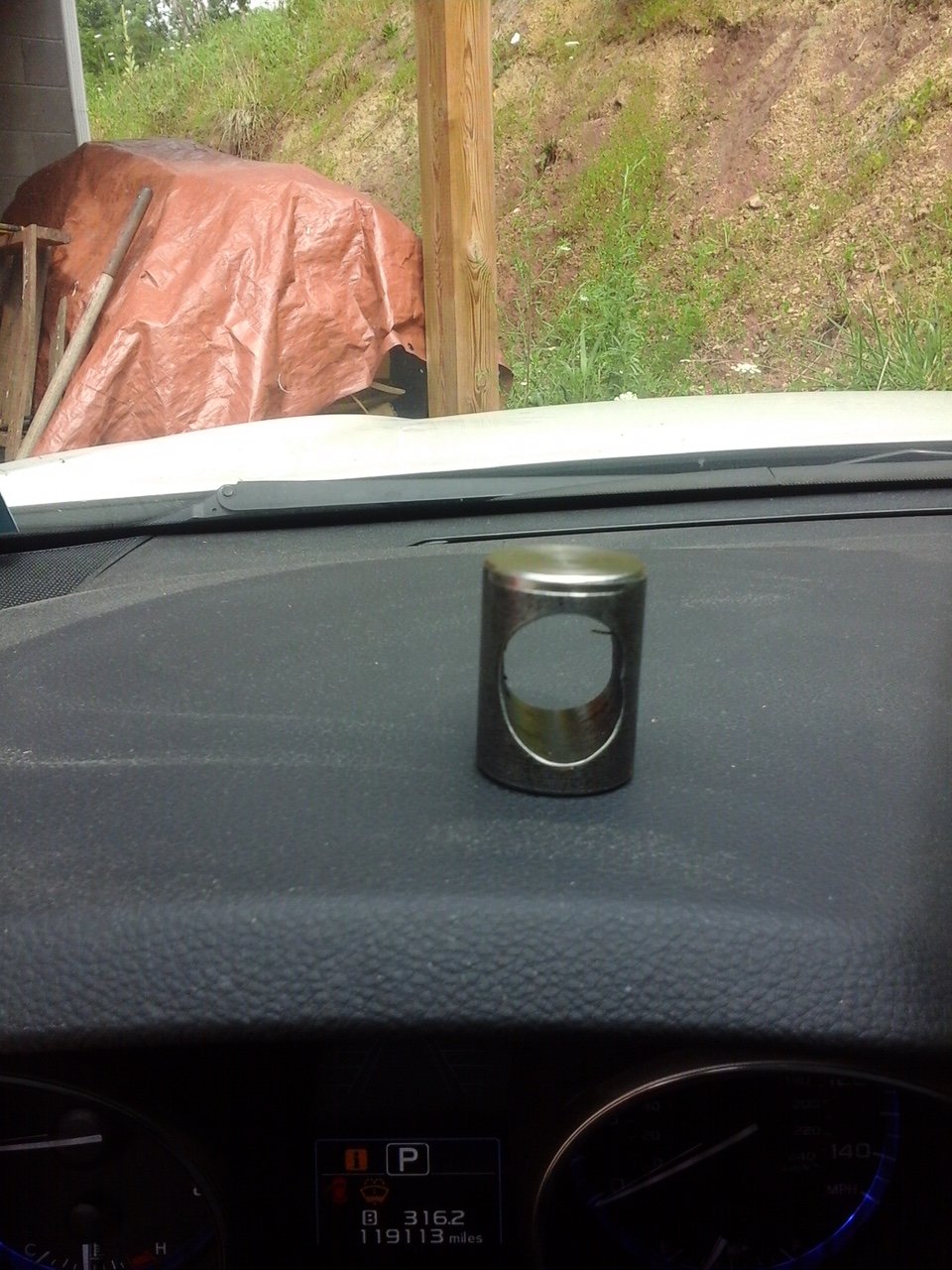

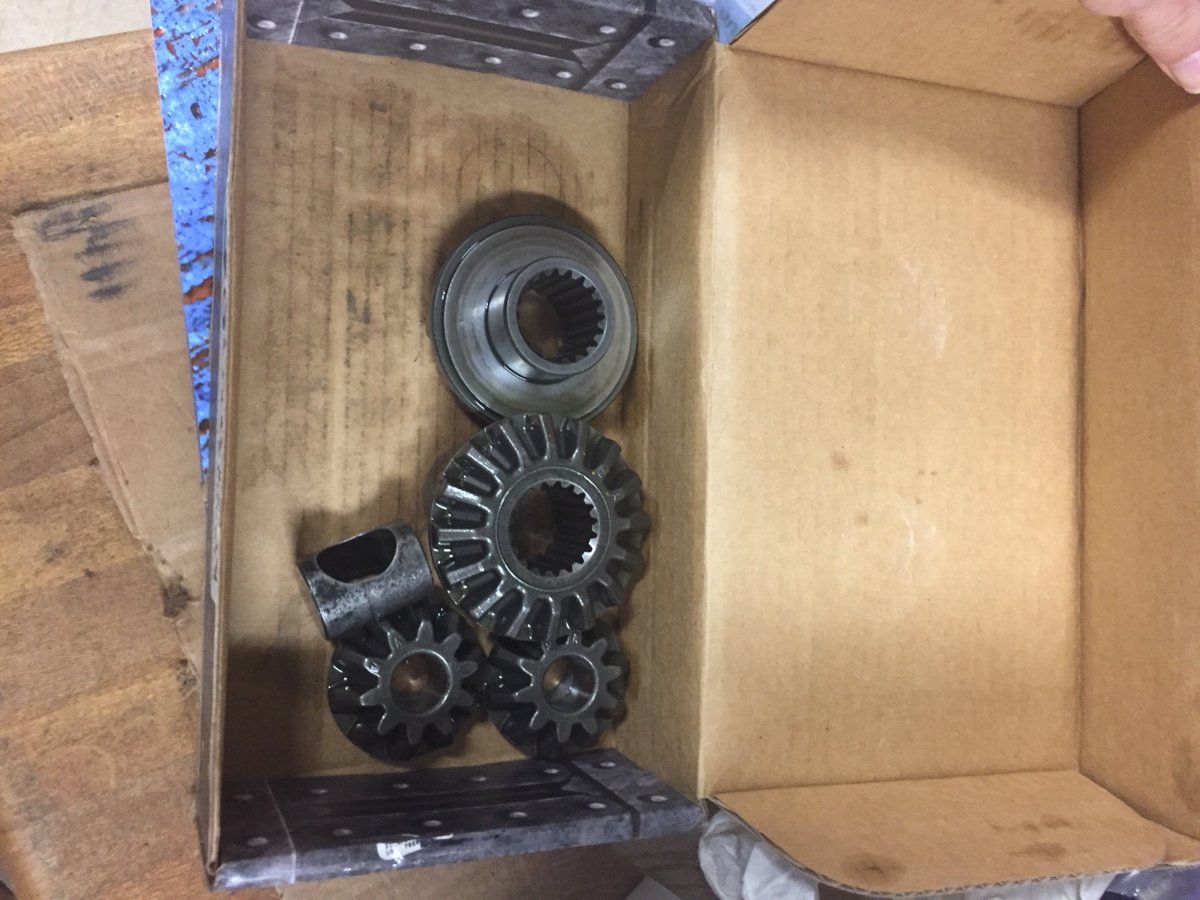

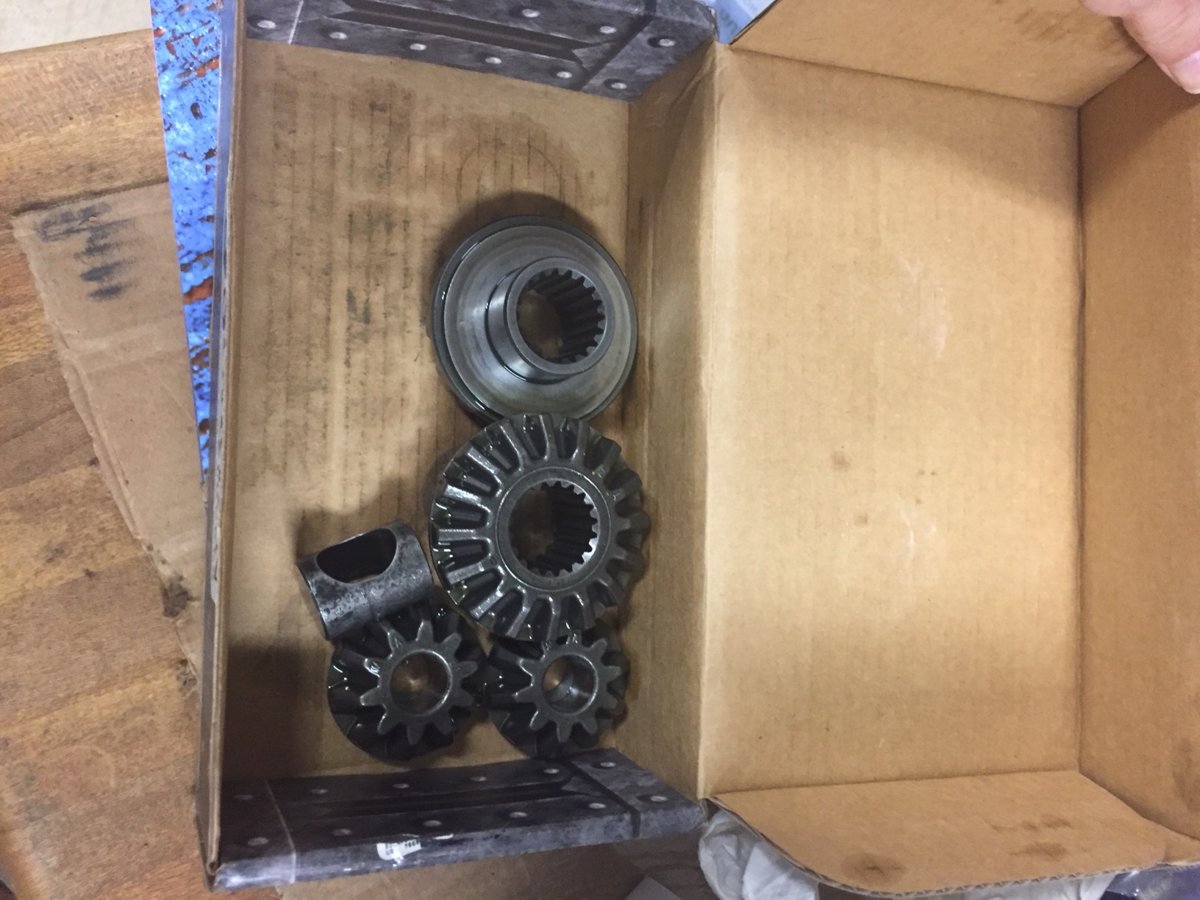

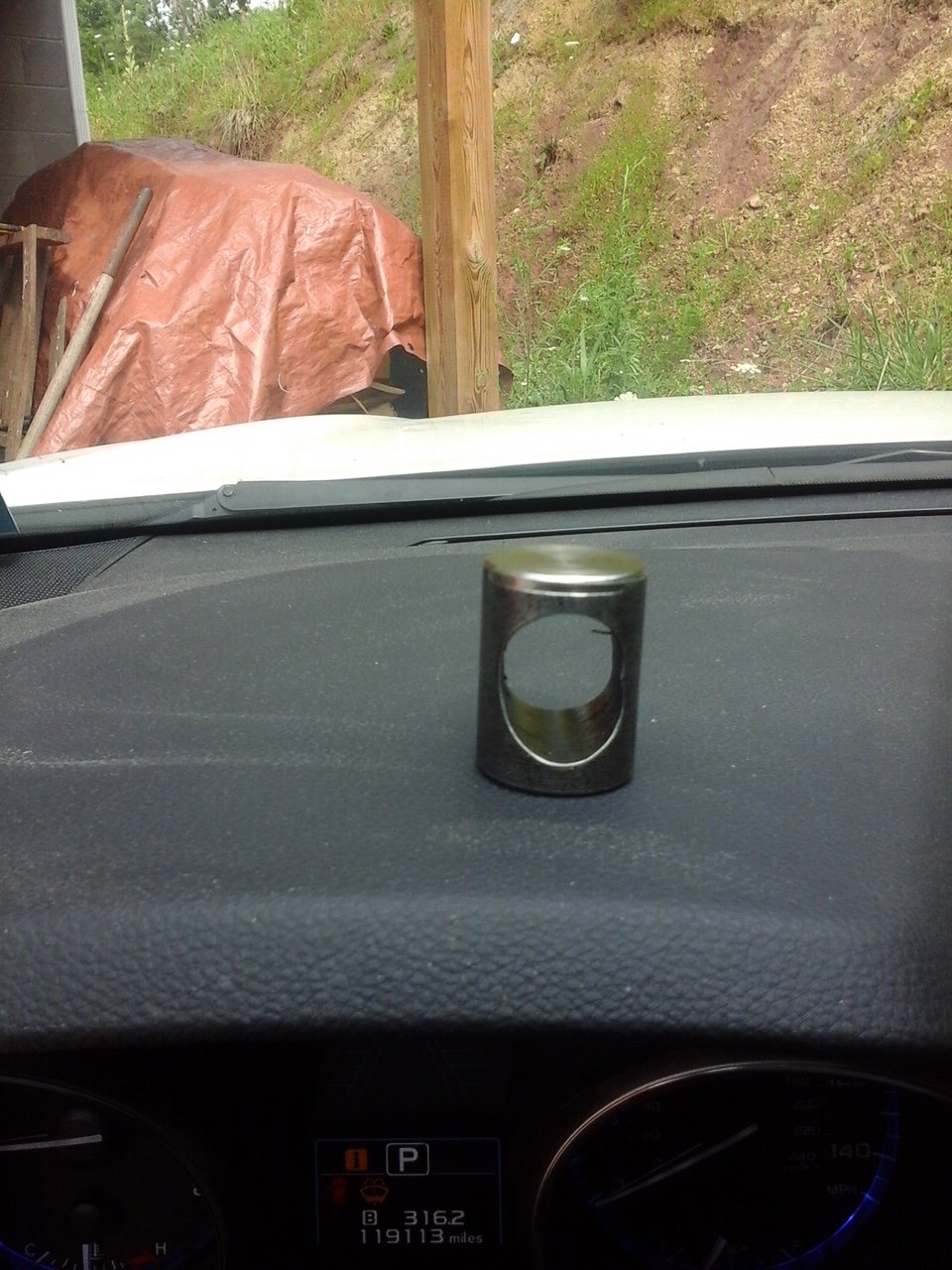

The spacer comes out with the factory spider gears. Apparently it is a rarely used part. Most mechanics will not think it should go back in as the Spartan instructions say "remove all parts from inside factory carrier."


Peder53

Member
Joined
Dec 6, 2018
Messages
39
Points
8
Location
Spring Valley, WI, USA
Roxor Ownership
Roxor Owner
Roxor #
2187
The spacer comes out with the factory spider gears. Apparently it is a rarely used part. Most mechanics will not think it should go back in as the Spartan instructions say "remove all parts from inside factory carrier."
Thanks for this info, my set showed up today, ordered from Amazon


Jimij

Member
Joined
Dec 8, 2018
Messages
30
Points
8
Location
Victoria, TX, USA
Roxor Ownership
Roxor Owner
Roxor #
001880
Can anyone tell me what I can expect to pay to have a locker installed by the dealer or other mechanic? im afraid the cost of the parts is the least of my concerns...
My dealer in Victoria Texas ( Velocity Powersports ) charged 262.95 to install the spartan in the rear differential.
I thought this was very reasonable ! Note...I did purchase the part through them...440.00
