Got started on my lift

[shawnr]

Well I’ve been working on this for a few evenings out in the shop excuse the mess ? the only thing left to do is the steering does anyone know of a drop pitman arm for a Roxor may do a tierod flip too and wait on the shocks to arrive



[44Bogger]

SOA is awesome.

If you decide to make kits you will be very busy.

What size tires are those? Were you able to readily available brake lines?



[shawnr]

I had them custom made by a shop who does all my air lines and hydraulic lines



[shawnr]

The tires are 33x11.5



[Bill Patridge]

The tires are 33x11.5

How much lift did you gain...less tire difference?



[shawnr]

About 5.5” on front I lost my stock measurement on rear I took the bottom leaf spring outta the pack im thinking about 4-5 in rear if someone would could they measure from rear hub center to the top of fender



[shawnr]

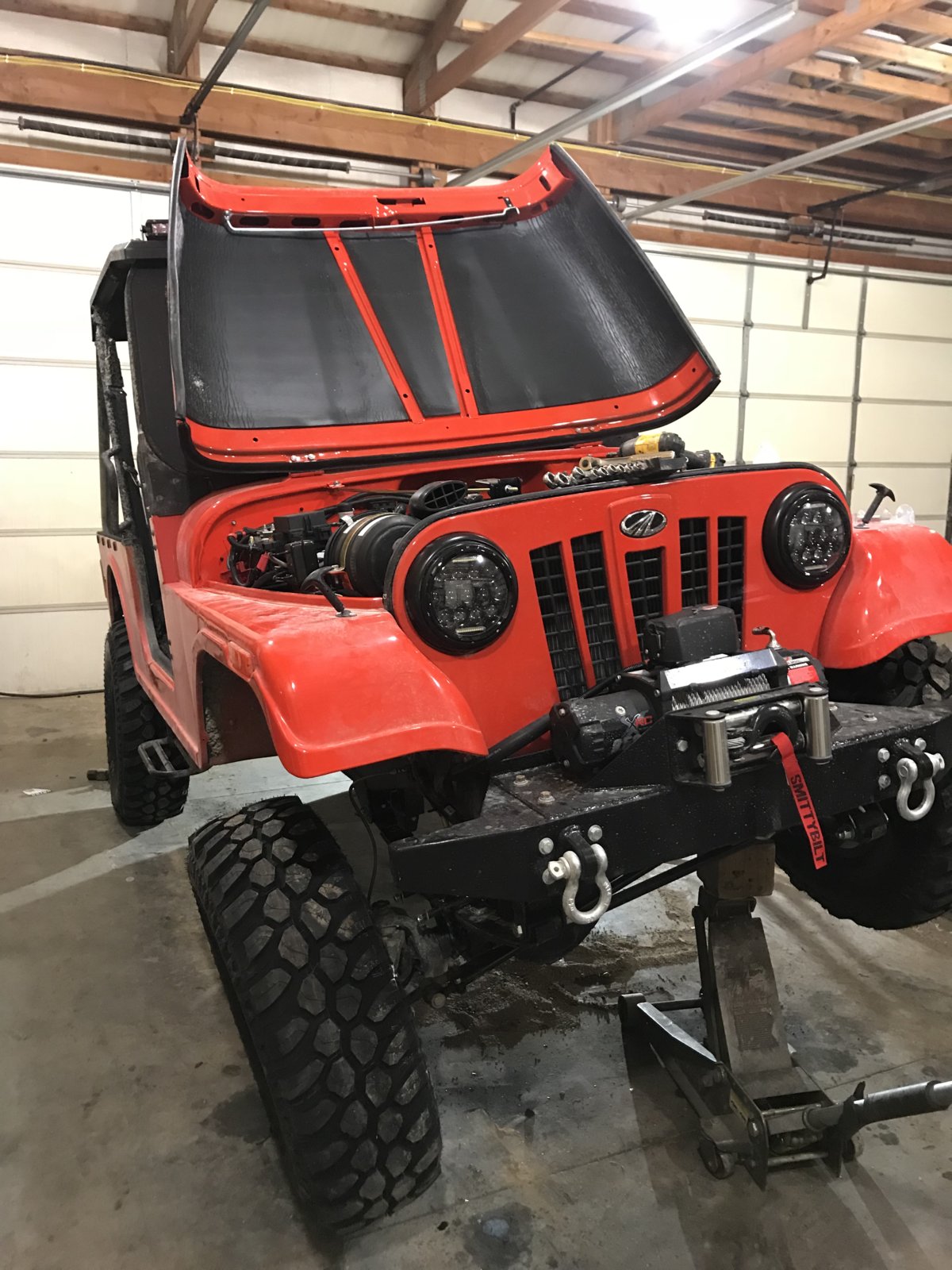

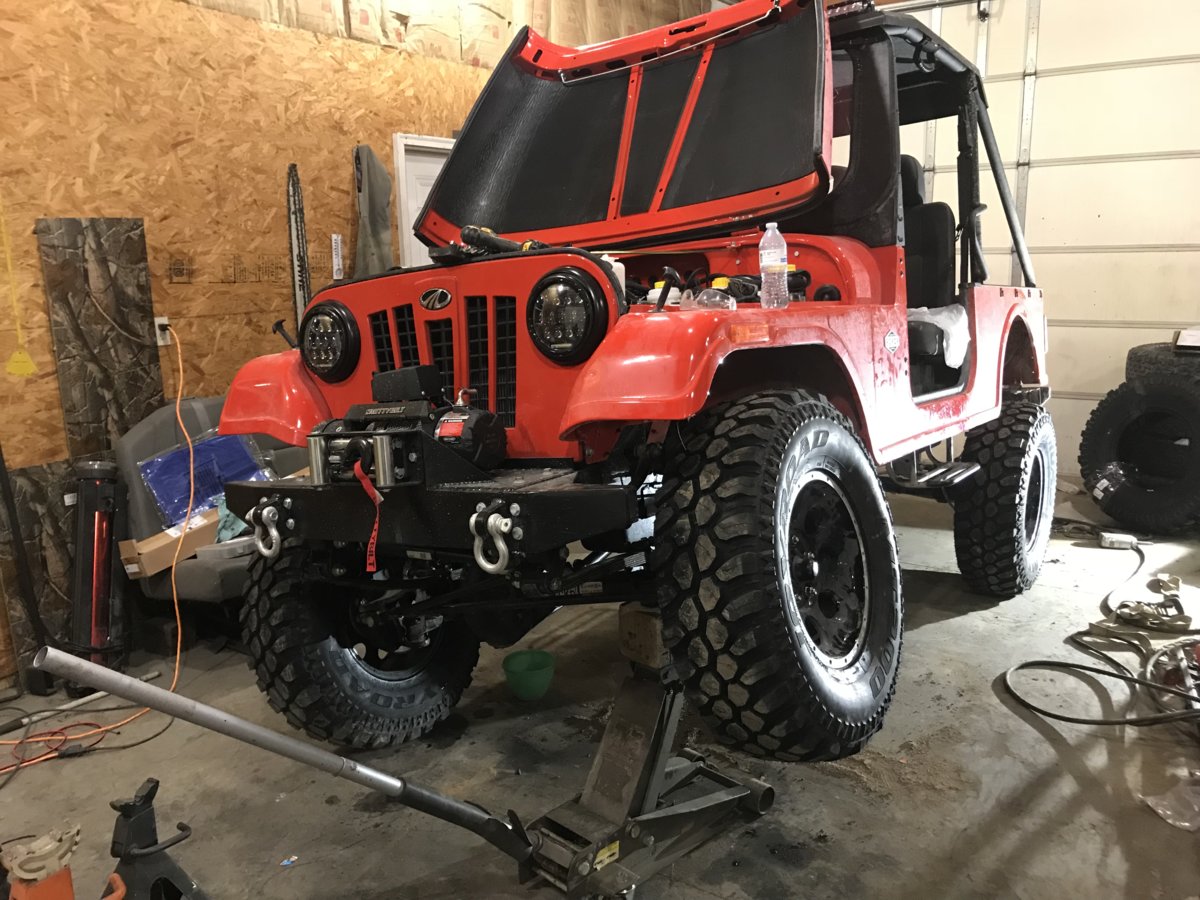

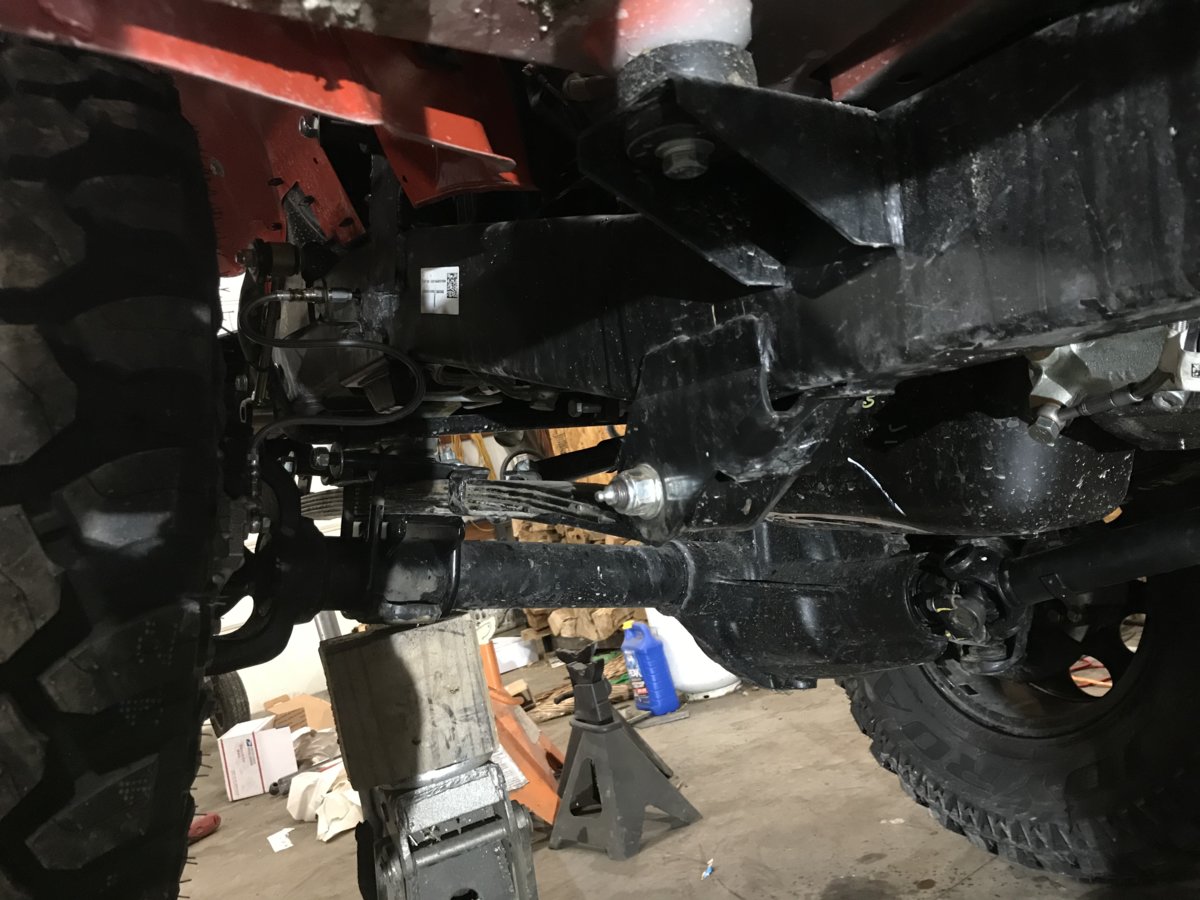

Few more pics from this eve



[toolsinaction]

Few more pics from this eve

View attachment 2340View attachment 2341View attachment 2342

Man that looks awesome! love the black and the red



[44Bogger]

About 5.5” on front I lost my stock measurement on rear I took the bottom leaf spring outta the pack im thinking about 4-5 in rear if someone would could they measure from rear hub center to the top of fender

I get right at 28” from center of hub to top of rear fender.



[Pdphilson]

Rare parts in California will custom make it



[4X44JOR]

Few more pics from this eve

View attachment 2340View attachment 2341View attachment 2342

What headlights are those? look great! Link to where you got them maybe? Any flicker issues? Thanks



[shawnr]

What headlights are those? look great! Link to where you got them maybe? Any flicker issues? Thanks

No flicker issues had to mod the headlight brackets alittle bit no big deal tho https://www.amazon.com/gp/aw/d/B07FMQMMN6/ref=ya_aw_oh_bia_dp?ie=UTF8&psc=1



[4X44JOR]

No flicker issues had to mod the headlight brackets alittle bit no big deal tho https://www.amazon.com/gp/aw/d/B07FMQMMN6/ref=ya_aw_oh_bia_dp?ie=UTF8&psc=1

Thanks



[shawnr]

Got the pitman arm and shocks on today Took it out for the first time to see if she drives everything is turning out great just need to get some bump stops for the front



[J5inutah]

What pitman arm did you use?



[shawnr]

Rough country one for a jeep xj 4-6” lift just have to use a die grinder to grind out the 4 index markes on splines



[Compshooter]

Did you just put the springs on top of the axels, or was this some kit that you fitted to the Roxor?



[shawnr]

I did spring over axle that way I could keep a flatter spring for better ride and articulation on a side note there is lot of stuff to do than just weld on spring perches



[Darstar]

Those of us who had Samuari's know quite well about the SOA set up. it was standard fare, the only way to go...... i am going slow on the Rox , 235-85R 16s ,custom wheels to start next week hopefully.. 1,000 bucks for the package,wheels and tires.....hope they fit.....
